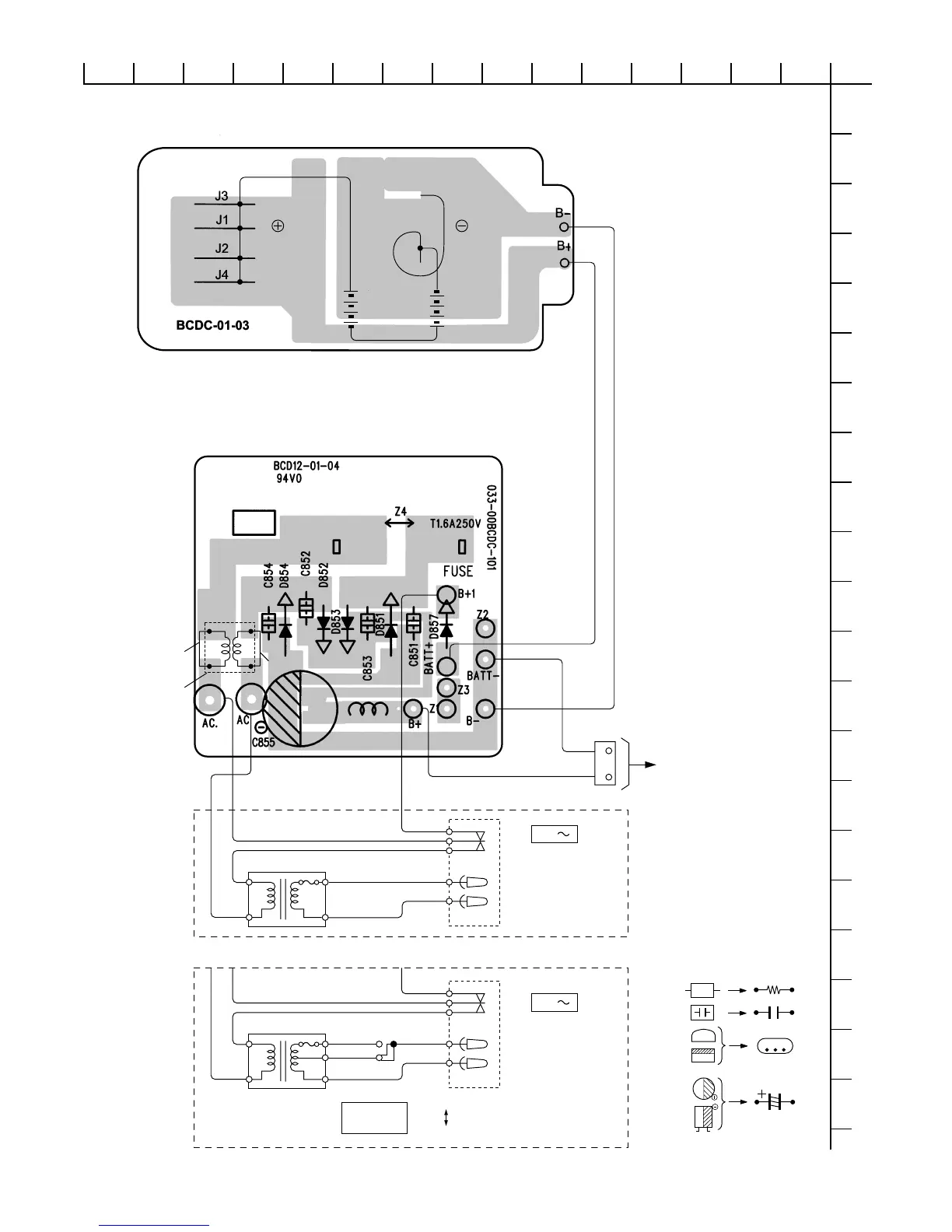

WIRING-4/4 (RECTIFIER, BATTERY)
DRT BATTERY
R20 X 8
DC 12V
3
1
CNH851
TO MAIN C. B
CN851
AC
U : 120V 60Hz
TU (U,EZ,K,HS)
AC
TU
SW901
SW901
110 - 120V
220 - 240V
50/60Hz
VOLTAGE
SELECT
220 - 240V
110 - 120V
U,EZ,K,HS
MODEL
LH,HRJ
MODEL
RECTIFIER C. B
(INSERTED PARTS)
BATTERY C. B
(INSERTED PARTS)
Rxx
E C B
E C B
E C B
NOTE
HS : 220V 60Hz
EZ, K : 230V 50Hz
L851
LH, U
LH, U
except LH, U
