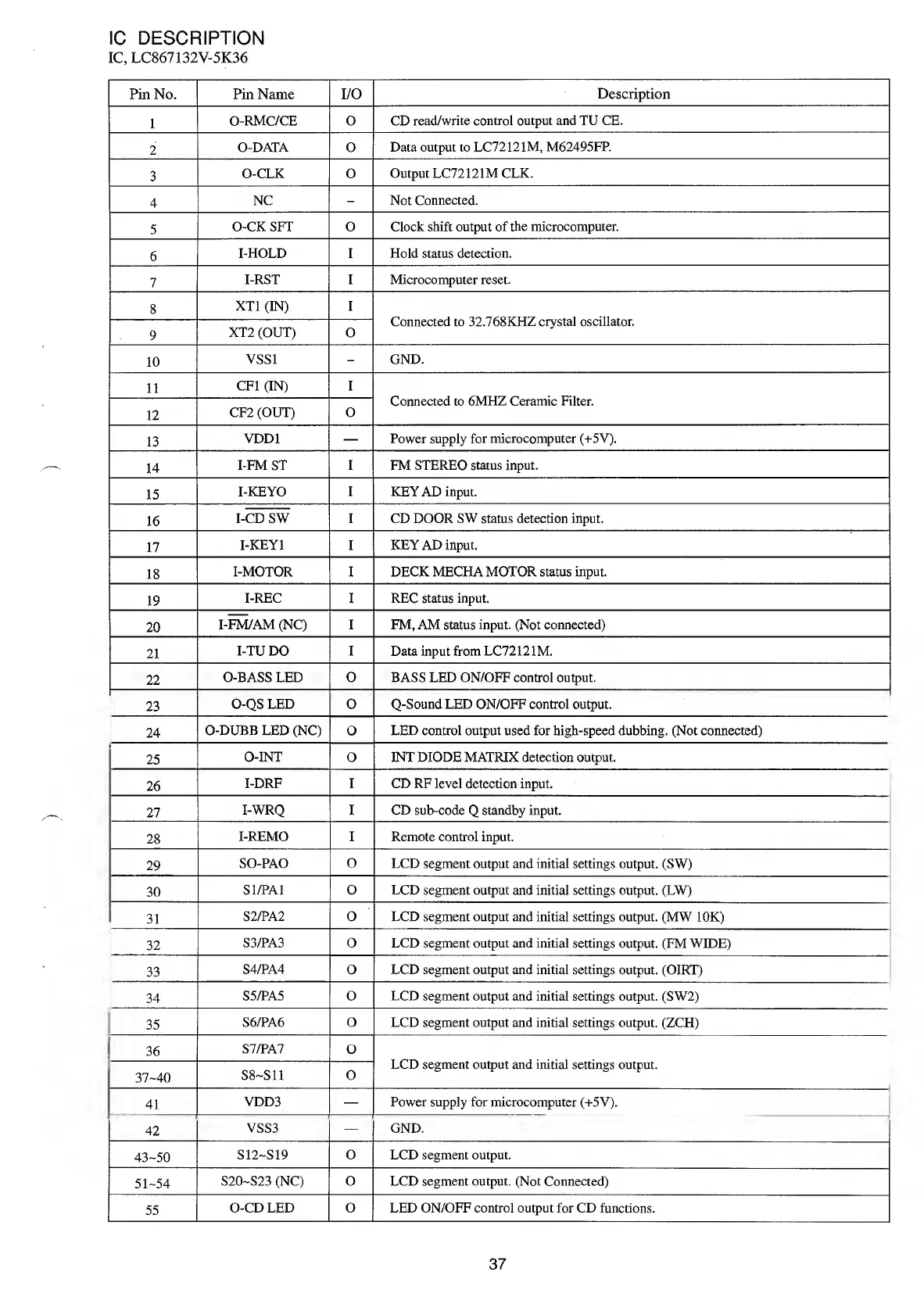

DESCRIPTION
LC867132V-5K36
Pin No. Pin Name I/O
Description
1
0-RMC/CE
D
CD read/write control output and TU CE.
2
O-DATA
a
Data output to LC72121M, M62495FP
3
O-CLK 0
Output LC72121MCLK.
4
NC - Not Connected.
5
O-CK SFT 0 Clock shift output of the microcomputer.
6
I-HOLD I Hold status detection.
7
I-RST I Microcomputer reset.
8
XTl (IN) I
Connected to 32.768KHZ crystal oscillator.
9
XT2 (OUT)
0
10
VSSl
-
GND.
11
CFl (IN) I
Connected to 6MHZ Ceramic Filter.
12
CF2 (OUT) 0
13
VDDl
—
Power supply for microcomputer (+5V).
14
I-FMST I FM STEREO status input.
15
1-KEYO I KEY AD input.
16
I-CD SW I CD DOOR SW status detection input.
17
I-KEYl I
KEY AD input.
18
I-MOTOR I DECK MECHA MOTOR status input.
19
I-REC
I REC status input.
20
I-FWAM (NC) I FM, AM status input. (Not connected)
21
I-TU DO
I
Data input from LC72121M.
22
BASS LED ON/OFF control output.
23
0-QS LED 0 Q-Sound LED ON/OFF control output.
24
0-DUBB LED (NC) o LED control output used for high-speed dubbing. (Not connected)
25
0-lNT 0 INT DIODE MATRIX detection output.
26
I-DRF
I CD RF level detection input.
27
I-WRQ I
CD sub-code Q standby input.
28
1-REMO I Remote control input.
29
SO-PAO 0
LCD segment output and initial settings output. (SW)
30
LCD segment output and initial settings output. (LW)
31
S2/PA2
0 LCD segment output and initial settings output. (MW lOK)
32
S3/PA3 o
LCD segment output and initial settings output. (FM WIDE)
33
S4/PA4
o LCD segment output and initial settings output. (OIRT)
34
S5/PA5 o LCD segment output and initial settings output. (SW2)
35
S6/PA6 o
LCD segment output and initial settings output. (ZCH)
36
S7/PA7 o
LCD segment output and initial settings output.
37-40
S8~S11 0
41
VDD3
—
Power supply for microcomputer (-I-5V).
42
VSS3
—
GND.
43-50
S12~S19
o LCD segment output.
51-54
LCD segment output. (Not Connected)
55
0-CD LED o LED ON/OFT control output for CD functions.
37
