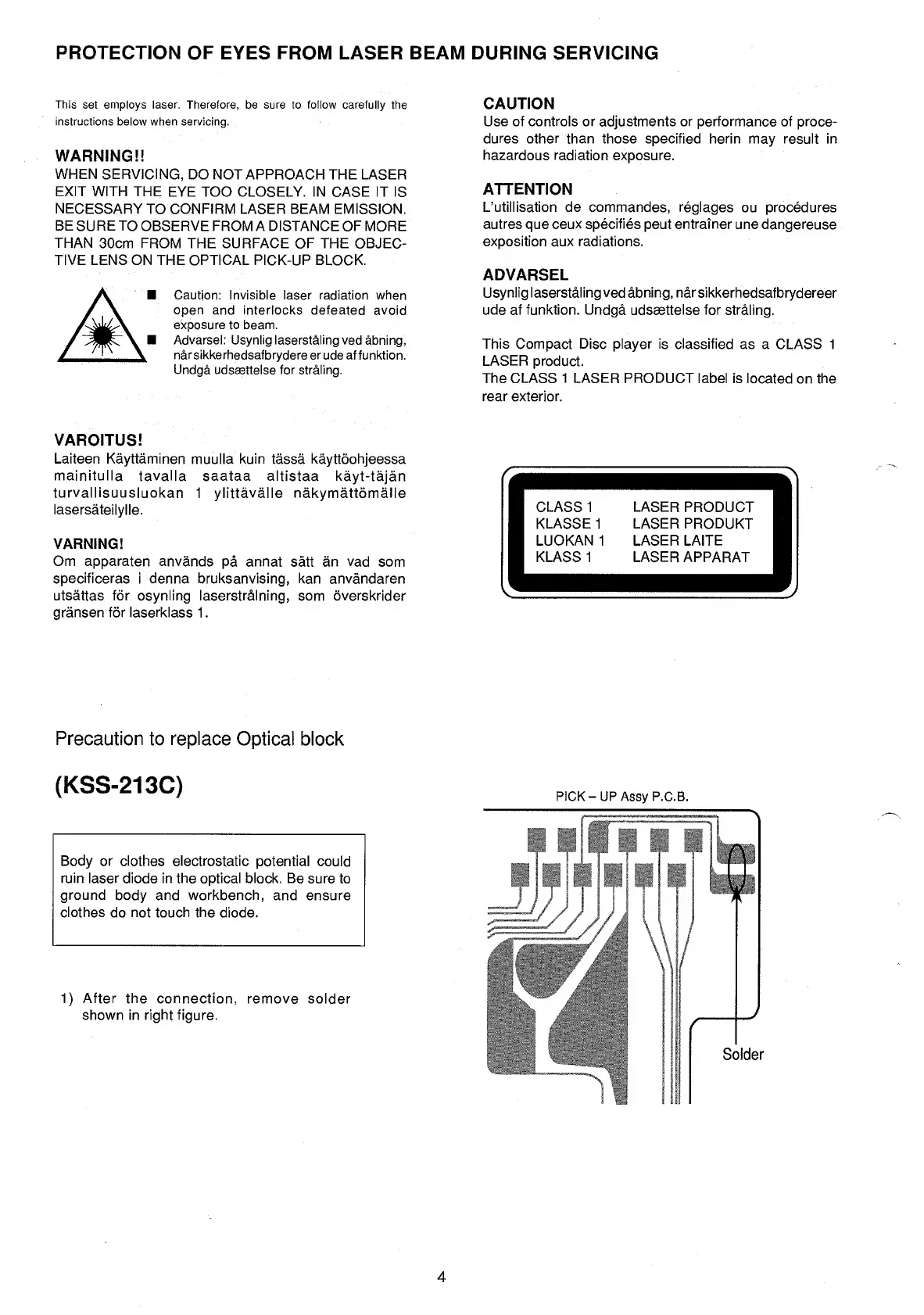

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs laser. Therefore, be sure to follow carefully the
Instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC¬
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
■ Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
■ Advarsel: UsynliglaserstalingvedSbnIng,
, n^rsikkerhedsafbrydereerudeaffunktlon.
Undgd udsffittelse for strSling.
CAUTION
Use of controls or adjustments or performance of proce¬
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, reglages ou procedures
autres que ceux specifies peut entrainer une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserstaling ved abning, narsikkerhedsafbrydereer
ude af funktion. Undga uds®ttelse for straling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
VAROITUS!
Laiteen Kayttaminen muulla kuin tassa kayttoohjeessa
mainitulla tavalla saataa altistaa kayt-tajan
turvallisuusluokan 1 ylittavalle nakymattomalle
lasersateilylle.
YARNING!
Om apparaten anvands pa annat satt an vad som
specificeras i denna bruksanvising, kan anvandaren
utsattas for osynling laserstr^lning, som dverskrider
gransen for laserklass 1.
Precaution to replace Optical block
(KSS-213C)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure to
ground body and workbench, and ensure
clothes do not touch the diode.
1) After the connection, remove solder
shown in right figure.
PICK-UP Assy P.C.B.
Solder
4
