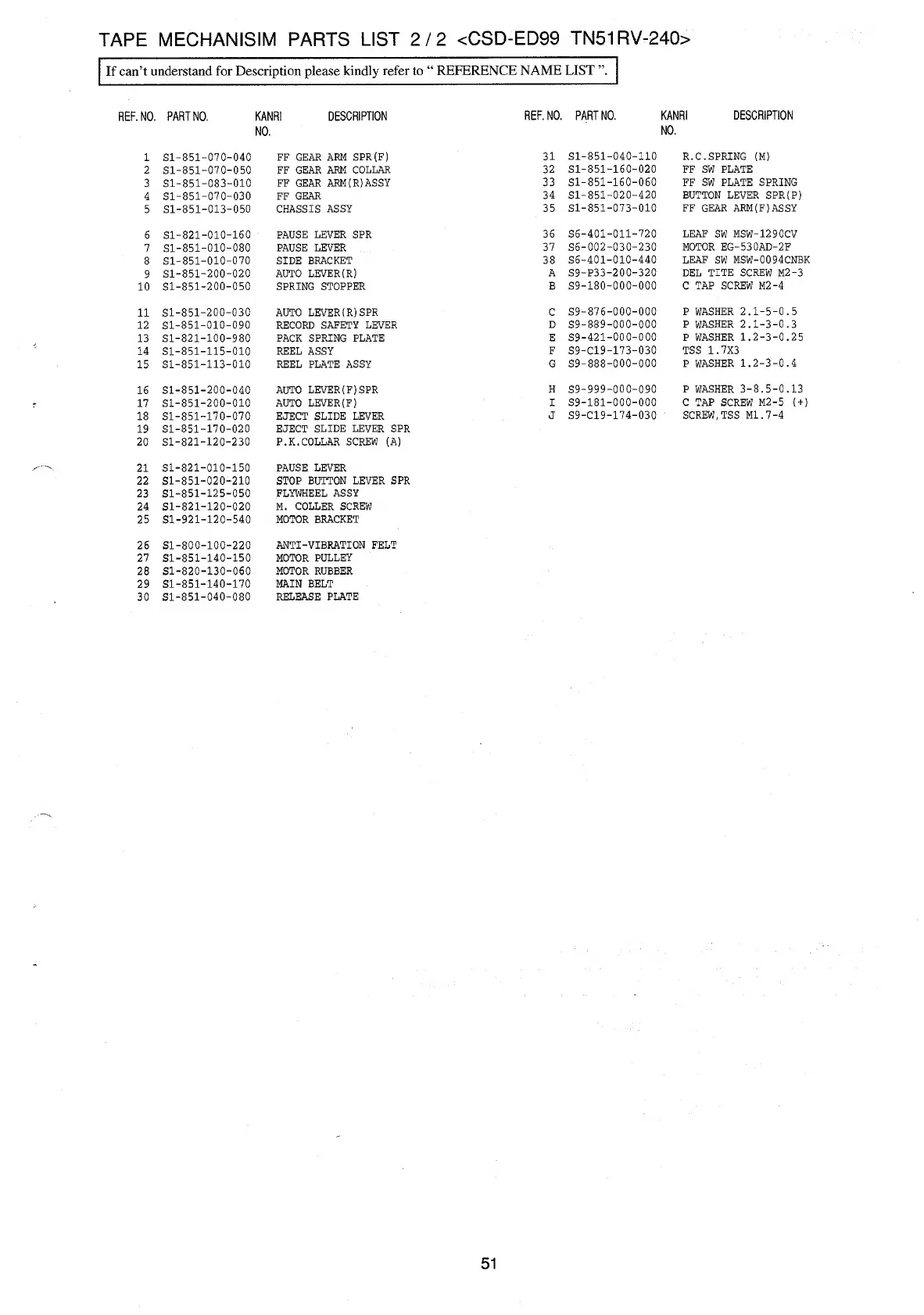

TAPE MECHANISIM PARTS LIST 2/2 <CSD-ED99 TN51RV-240>
If can’t understand for Description please kindly refer to “ REFERENCE NAME LIST
^N0. PART NO.
KANRl DESCRIPTION
REF. NO. PART NO.
KANRl DESCRIPTION
NO.
NO.
1 Sl-851-070-040
FF GEAR ARM SPR(F)
31
Sl-851-040-110 R.C.SPRING (M)
2 Sl-851-070-050
FF GEAR ARM COLLAR
32 Sl-851-160-020 FF SW PLATE
3
Sl-851-083-010
FF GEAR ARM(R)ASSY 33
Sl-851-160-060 FF SW PLATE SPRING
4
Sl-851-070-030
FF GEAR
34 Sl-851-020-420 BUTTON LEVER SPR{P)
5
Sl-851-013-050 CHASSIS ASSY
35 Sl-851-073-010
FF GEAR ARM(F)ASSY
6
Sl-821-010-160
PAUSE LEVER SPR
36 S6-401-011-720 LEAF SW MSW-1290CV
7
Sl-851-010-080
PAUSE LEVER
37 S6-002-030-230
MOTOR EG-530AD-2F
8
Sl-851-010-070
SIDE BRACKET 38
S6-401-010-440
LEAF SW MSW-0094CNBK
9
Sl-851-200-020 AUTO LEVER(R)
A S9-P33-200-320 DEL TITE SCREW M2-3
10
Sl-851-200-050 SPRING STOPPER
B S9-180-000-000
C TAP SCREW M2-4
11
Sl-851-200-030 AUTO LEVER(R)SPR
C
S9-876-000-000
P WASHER 2.1-5-0.5
12 Sl-851-010-090
RECORD SAFETY LEVER
D S9-889-000-000
P WASHER 2.1-3-0.3
13 Sl-821-100-980
PACK SPRING PLATE
E
S9-421-000-000 P WASHER 1.2-3-0.25
14 Sl-851-115-010
REEL ASSY
F S9-C19-173-030 TSS 1.7X3
15 Sl-851-113-010
REEL PLATE ASSY
G
S9-888-000-000
P WASHER 1.2-3-0.4
16 Sl-851-200-040
AUTO LEVER(F)SPR
H
S9-999-000-090
P WASHER 3-8.5-0.13
17 Sl-851-200-010
AUTO LEVER(F)
I S9-181-000-000 C TAP SCREW M2-5 ( + )
18
Sl-851-170-070
EJECT SLIDE LEVER
J S9-C19-174-030 SCREW,TSS Ml.7-4
19
Sl-851-170-020
EJECT SLIDE LEVER SPR
20 Sl-821-120-230
P.K.COLLAR SCREW (A)
21 Sl-821-010-150
PAUSE LEVER
22 Sl-851-020-210 STOP BUTTON LEVER SPR
23 Sl-851-125-050
FLYWHEEL ASSY
24 Sl-821-120-020
M. COLLER SCREW
25
Sl-921-120-540
MOTOR BRACKET
26
Sl-800-100-220 ANTI-VIBRATION FELT
27 Sl-851-140-150 MOTOR PULLEY
28
Sl-820-130-060 MOTOR RUBBER
29
Sl-851-140-170 MAIN BELT
30
Sl-851-040-080 RELEASE PLATE
51
