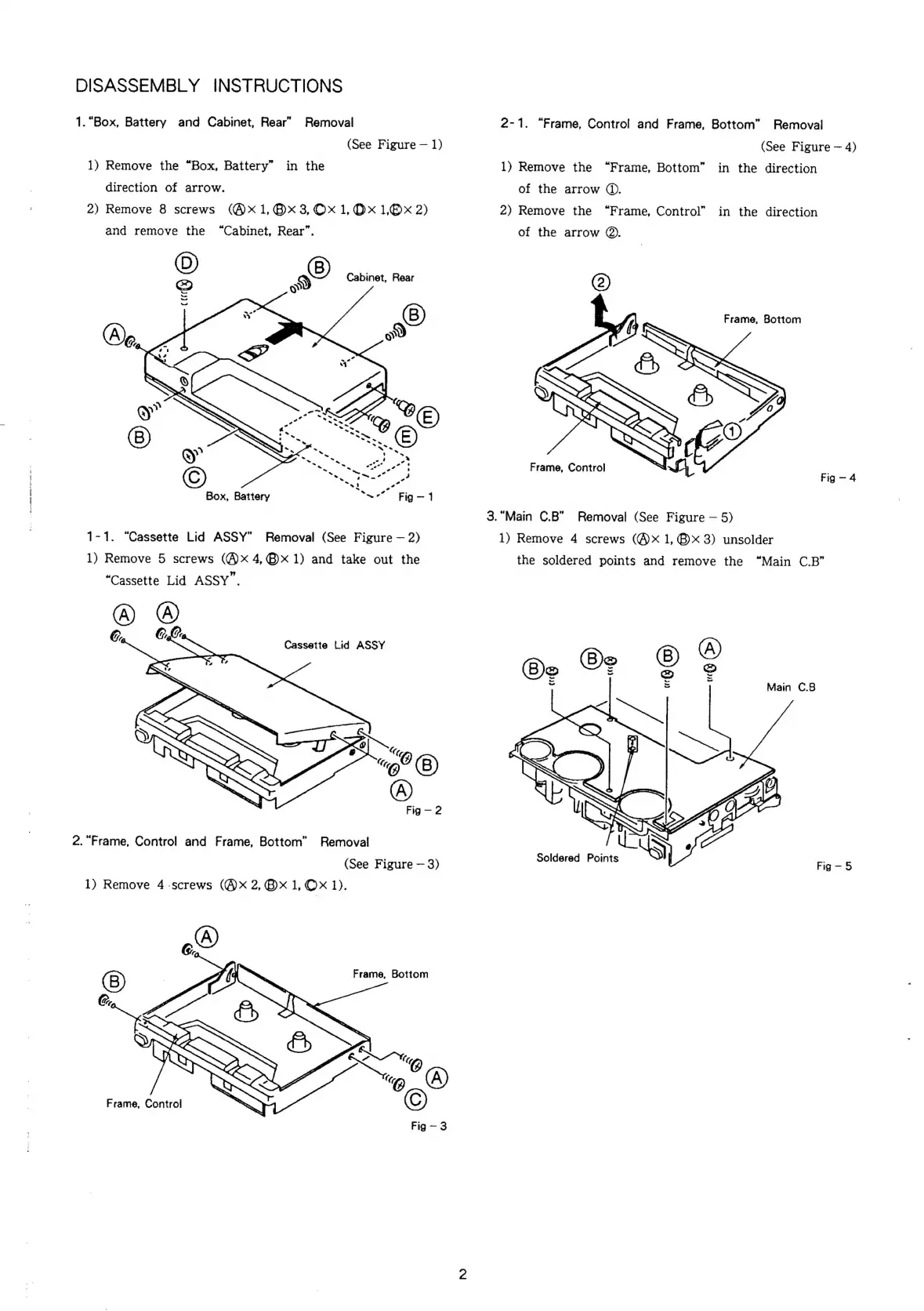

DISASSEMBLY INSTRUCTIONS
1. “Box, Battery and Cabinet, Rear” Removal
(See Figure — 1)
1) Remove the “Box, Battery” in the
direction of arrow.
2) Remove 8 screws (@X1,®x3, Ox 1,0x 1,®x 2)
and remove the “Cabinet, Rear”.
Cabinet, Rear
©
oo
Box, Battery “~-°" Fig — 1
1-1. “Cassette Lid ASSY” Removal (See Figure — 2)
1) Remove 5 screws (@ x 4,@xX 1) and take out the
“Cassette Lid ASSY”.
2 &
Co OL |
Cassette Lid ASSY
) Ni
“ee
(A)
Fig-—2
2. Frame, Control and Frame, Bottom” Removal
(See Figure — 3)
1) Remove 4-screws (@~x 2,@x 1, ©x 1).
ACY
fe
| fs
Is
ESA ” vg
Frame, Control!
Frame, Bottom
®
2-1. “Frame, Control and Frame, Bottom” Removal
(See Figure — 4)
1) Remove the “Frame, Bottom” in the direction
of the arrow ©.
2) Remove the “Frame, Control” in the direction
of the arrow ©.
Frame, Bottom
Frame, Control
Fig - 4
3. “Main C.B” Removal (See Figure — 5)
1) Remove 4 screws (@x 1,®X3) unsolder
the soldered points and remove the “Main C.B”
Main C.B
r
Soldered Points SS !
Fig-5
