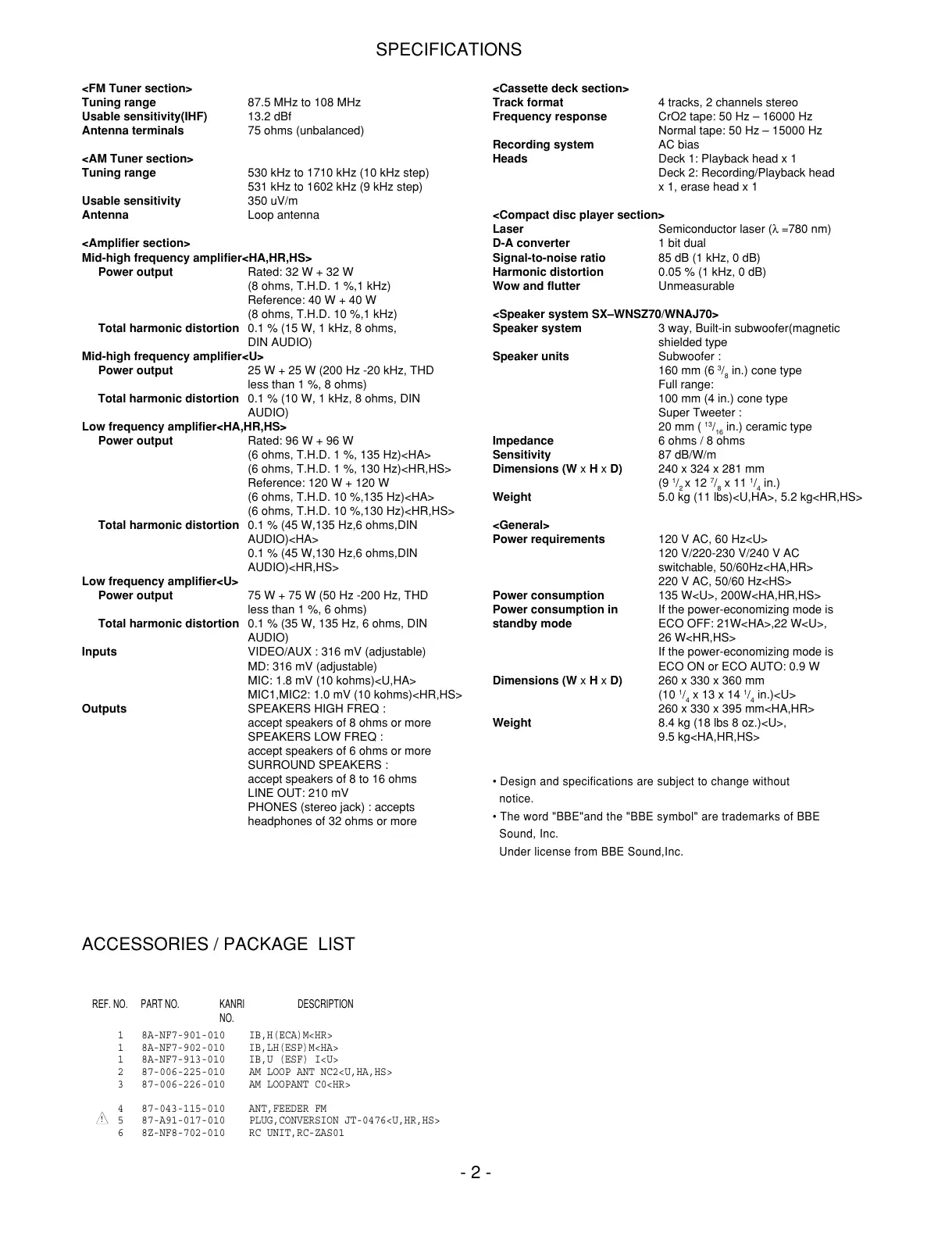

SPECIFICATIONS
ACCESSORIES / PACKAGE LIST
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity(IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM Tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 uV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier<HA,HR,HS>
Power output Rated: 32 W + 32 W
(8 ohms, T.H.D. 1 %,1 kHz)
Reference: 40 W + 40 W
(8 ohms, T.H.D. 10 %,1 kHz)
Total harmonic distortion 0.1 % (15 W, 1 kHz, 8 ohms,
DIN AUDIO)
Mid-high frequency amplifier<U>
Power output 25 W + 25 W (200 Hz -20 kHz, THD
less than 1 %, 8 ohms)
Total harmonic distortion 0.1 % (10 W, 1 kHz, 8 ohms, DIN
AUDIO)
Low frequency amplifier<HA,HR,HS>
Power output Rated: 96 W + 96 W
(6 ohms, T.H.D. 1 %, 135 Hz)<HA>
(6 ohms, T.H.D. 1 %, 130 Hz)<HR,HS>
Reference: 120 W + 120 W
(6 ohms, T.H.D. 10 %,135 Hz)<HA>
(6 ohms, T.H.D. 10 %,130 Hz)<HR,HS>
Total harmonic distortion 0.1 % (45 W,135 Hz,6 ohms,DIN
AUDIO)<HA>
0.1 % (45 W,130 Hz,6 ohms,DIN
AUDIO)<HR,HS>
Low frequency amplifier<U>
Power output 75 W + 75 W (50 Hz -200 Hz, THD
less than 1 %, 6 ohms)
Total harmonic distortion 0.1 % (35 W, 135 Hz, 6 ohms, DIN
AUDIO)
Inputs VIDEO/AUX : 316 mV (adjustable)
MD: 316 mV (adjustable)
MIC: 1.8 mV (10 kohms)<U,HA>
MIC1,MIC2: 1.0 mV (10 kohms)<HR,HS>
Outputs SPEAKERS HIGH FREQ :
accept speakers of 8 ohms or more
SPEAKERS LOW FREQ :
accept speakers of 6 ohms or more
SURROUND SPEAKERS :
accept speakers of 8 to 16 ohms
LINE OUT: 210 mV
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape: 50 Hz – 16000 Hz
Normal tape: 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/Playback head
x 1, erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<Speaker system SX–WNSZ70/WNAJ70>
Speaker system 3 way, Built-in subwoofer(magnetic
shielded type
Speaker units Subwoofer :
160 mm (6
3
/
8
in.) cone type
Full range:
100 mm (4 in.) cone type
Super Tweeter :
20 mm (
13
/
16
in.) ceramic type
Impedance 6 ohms / 8 ohms
Sensitivity 87 dB/W/m
Dimensions (W x H x D) 240 x 324 x 281 mm
(9
1
/
2
x 12
7
/
8
x 11
1
/
4
in.)
Weight 5.0 kg (11 lbs)<U,HA>, 5.2 kg<HR,HS>
<General>
Power requirements 120 V AC, 60 Hz<U>
120 V/220-230 V/240 V AC
switchable, 50/60Hz<HA,HR>
220 V AC, 50/60 Hz<HS>
Power consumption 135 W<U>, 200W<HA,HR,HS>
Power consumption in If the power-economizing mode is
standby mode ECO OFF: 21W<HA>,22 W<U>,
26 W<HR,HS>
If the power-economizing mode is
ECO ON or ECO AUTO: 0.9 W
Dimensions (W x H x D) 260 x 330 x 360 mm
(10
1
/
4
x 13 x 14
1
/
4
in.)<U>
260 x 330 x 395 mm<HA,HR>
Weight 8.4 kg (18 lbs 8 oz.)<U>,
9.5 kg<HA,HR,HS>
• Design and specifications are subject to change without
notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
- 2 -
1 8A-NF7-901-010 IB,H(ECA)M<HR>
1 8A-NF7-902-010 IB,LH(ESP)M<HA>
1 8A-NF7-913-010 IB,U (ESF) I<U>
2 87-006-225-010 AM LOOP ANT NC2<U,HA,HS>
3 87-006-226-010 AM LOOPANT C0<HR>
4 87-043-115-010 ANT,FEEDER FM
5 87-A91-017-010 PLUG,CONVERSION JT-0476<U,HR,HS>
6 8Z-NF8-702-010 RC UNIT,RC-ZAS01
!
