Aiwa PX-E75 - AIWA PX-E75;E45 Exploded View

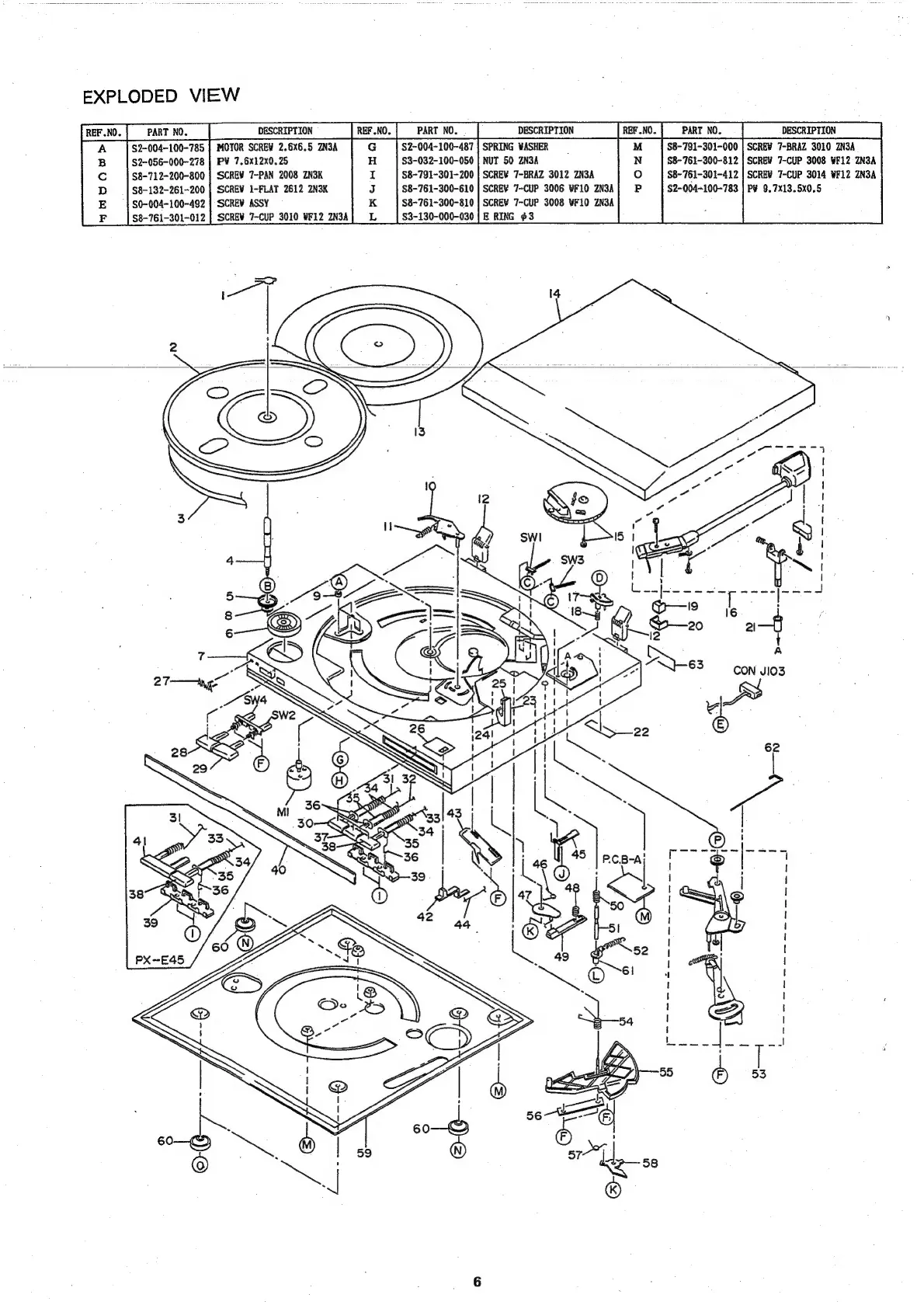

EXPLODED VIEW
Peae=no. [PANT NO. [ DESCRIPTION [REFNO [| _PaRT WO._[ __DaSCREPTION ___[ROR-AOL[ PART NO, _—_—vescPION
$2-004-100-785 | MOTOR SCREW 2.6X6.5 ZN3A S2-004-100-487 | SPRING WASHER S8-791-301-000 | SCREW 7-BRAZ 3010 ZN3A
$2-056-000-278 | PW 7.6x12x0.25 $3-032-100-050 | NUT 50 2N3A S8-761-300-812 | SCREW 7-CUP 3008 WF12 ZN3A
$8-712-200-800 | SCRE¥ 7-PAN 2008 ZN3K S8-791-301-200 | SCRE¥ 7-BRAZ 3012 ZN3A S8-761-301-412 | SCREW 7-CUP 3014 WF12 ZN3A
$8-132-261-200 | SCREV 1-FLAT 2612 ZN3K §8-761-300-610 | SCRE¥ 7-CUP 3006 VF10 ZN3A $2-004-100-783 | P¥ 9.7%13.5x0.5
“1 S0-004-100-492 | SCRE¥ ASSY $8-761-300-810 | SCRE¥ 7-CUP 3008 VF10 ZN3A
$8-761-301-012 | SCREW 7-CUP 3010 WF12 ZN3A S3-130-000-030 | E RING $3
