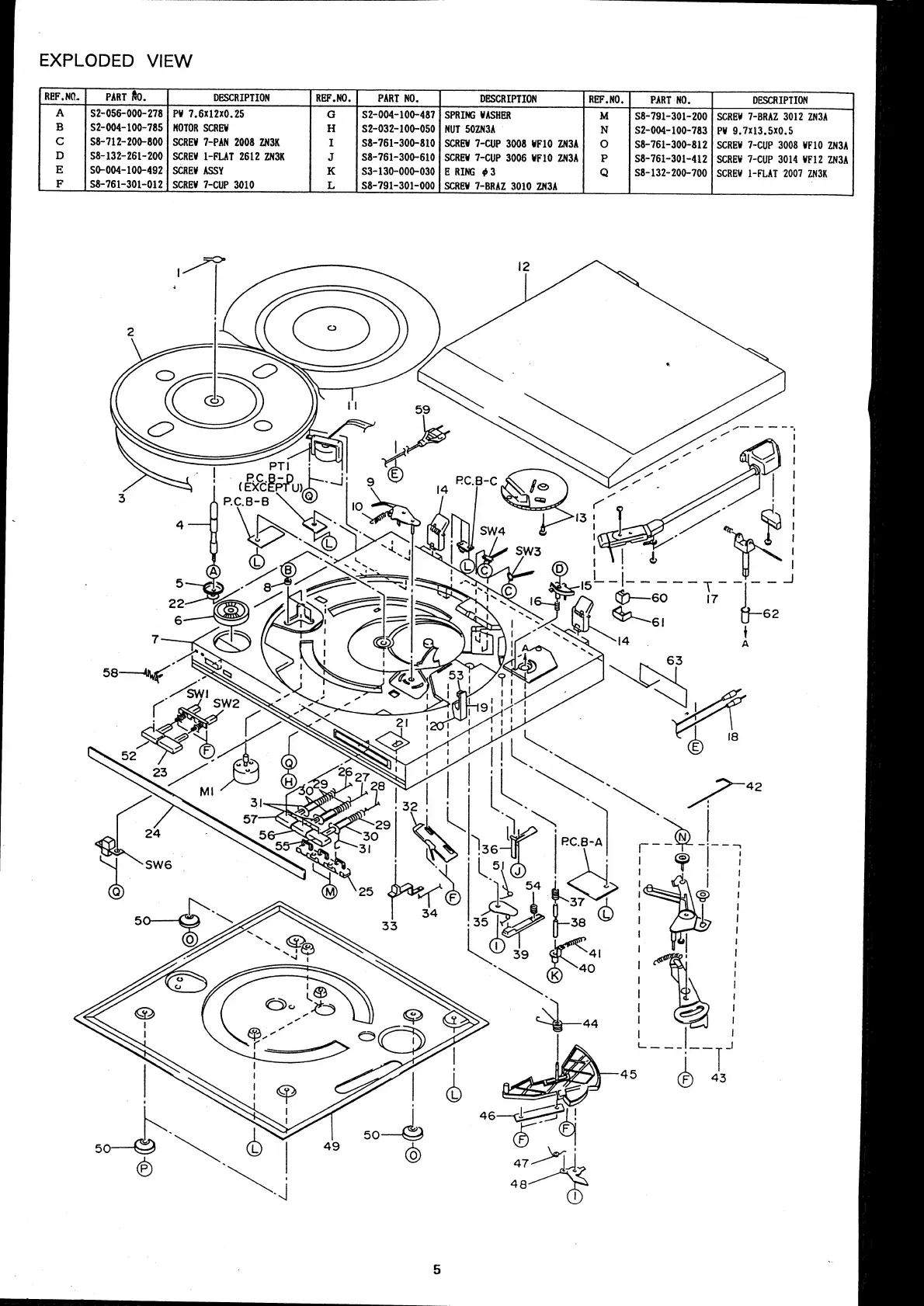

Aiwa PX-E80 - EXPLODED VIEW

EXPLODED VIEW
[ReF.Ne.[ pant fo, | __beSCRipTION | RF-NO. | PART NO.
A
$2-056-000-278 | PW 7.6x12x0.25 S2-004-100-487
$2-004-100-785 | MOTOR SCREW $2-032-100-050
$8-712-200-800 | SCREW 7-PAN 2008 ZN3K S8-761-300-810
$8-132-261-200 | SCREW 1-FLAT 2612 ZN3K $8-761-300-610
S0-004-100-492 | SCREW ASSY S3-130-000-030
$8-761-301-012 | SCREW 7-CUP 3010 S8-791-301-000
DESCRIPTION
SPRING WASHER
NUT 50ZN3A
SCREW 7-CUP 3008 WF10 ZN3A
SCREW 7-CUP 3006 WF10 ZN3A
E RING $3
SCREW 7-BRAZ 3010 ZN3A
|REF.NO. | PART NO. DESCRIPTION
S8-791-301-200 | SCREW 7-BRAZ 3012 ZN3A
S2-004-100-783 | PW 9.7x13.5x0.5
S8-761-300-812 | SCREW 7-CUP 3008 WF10 ZN3A
S8-761-301-412 | SCREW 7-CUP 3014 WF12 ZN3A
S8- 132-200-700 | SCREW 1-FLAT 2007 ZN3K
