5.11 Before installation be sure to run a test to check smoke detector
operability. When the detector is switched on and in work mode (without
alarm) put finger on the touch-sensitive button «Test» on the detector’s body
in the center of AJAX logo («1», PICTURE 1) for up to 10 seconds. It will switch
the detector to self-test mode for about 5 seconds. In self-test mode, smoke
chamber operability is checked, electronic simulation of smoke presence is
made, and if smoke chamber is OK – sound signal is generated.
5.7 Fix SmartBracket fastening panel in the ceiling using supplied dowels and
screws.
5.8 Fix detector on SmartBracket. Once the detector is fixed on SmartBracket,
it must blink with green LED - it means that tamper button is closed on the
detector. If detector didn’t blink, you should check lid state in receiver settings.
PICTURE 2.
SmartBracket fastening panel
IMPORTANT!
Be careful when installing the fastening panel. Excessive force during its
fixation may lead to deformation and, as a consequence, in impossibility to
install the detector or insecure fixing. Secure fastening panel only using with
supplied mounting tools! Use of other fasteners, such as, large diameter
screws, may damage the fastening panel.
IMPORTANT!
Don’t install the detector:
• near the points places of fast air circulation (ventilations units, open
windows or doors);
• near metal objects, causing radio signal attenuation;
• In the rooms with temperature and humidity exceeding the appropriate
levels.
IMPORTANT!
Duration of detector autonomous operation depends on batteries quality
and quantity of alarms triggered. At the average batteries works for about
4 years. It is not possible to switch on detector with additional battery only,
main batteries must be always installed.
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
WARNING! When a battery has reached the end of its useful life, do not
dispose of the battery in general household waste.
5.9 The detector is installed!
5.10 Ensure that elements of interior, furniture, curtains, house plants,
decorative design, wires or other objects don’t cover detector.
1 – body opening tamper button
2 – smoke chamber apertures
3 – «Test» button
4 – «Chamber is dirty» signal reset
button
5 – siren
6 – antenna
7 – smoke chamber
8 – CR2 batteries
9 – additional battery CR2032
10 – Carbon monoxide detector (only
in FireProtectPlus)
11 – smoke chamber latches
1
10
2
2
2
9
3
4
7
8

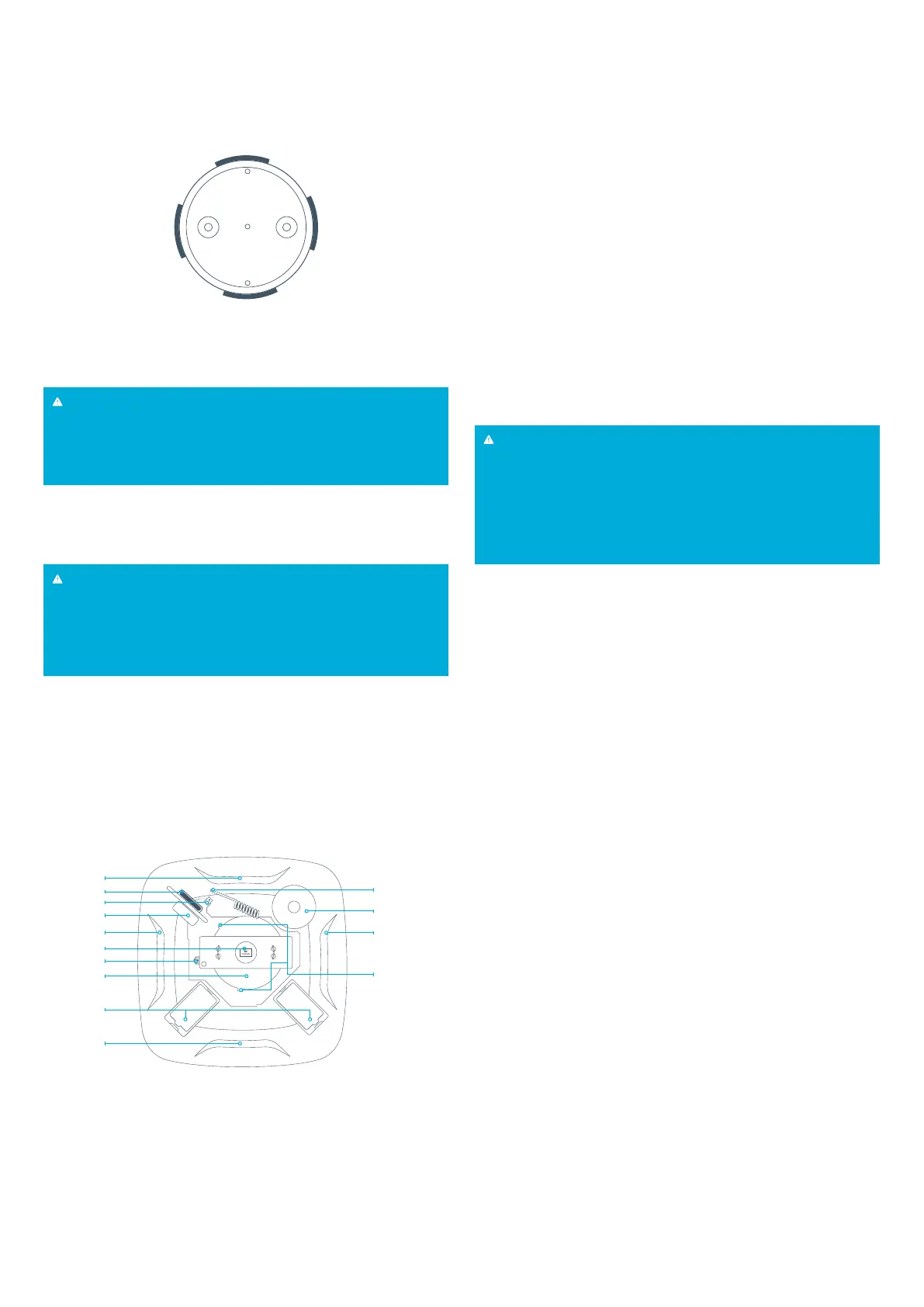

PICTURE 3. Detector
construction.
6
5
2
6. MAINTENANCE
6.1 Maintenance is done once every 6 months. The sensor’s board must be
cleared of dust, spider web and other impurities.
6.2 If to much dust entered the smoke chamber it can be perceived as smoke,
and detector can give a false alarm. Regularly, at least once in 6 months, get
rid of the dust, cleaning the detector. If detector is installed in a dusty premises,
you need to clean it more often.
6.3 The detector can compensate smoke chamber dustiness before certain
level reach. If it was exceeded the message about the necessity to clean the
detector will be sent to the receiver (panel). In case of dustiness or smoke
chamber failure, the detector gives a long sound signal every minute and a
half. Blow the detector with vacuum cleaner or compressor to clean it.
6.4 In case of carbon monoxide (CO) detector failure, the detector similarly
gives one long sound signal every minute and a half!
6.5 Never rub the sensor with substances containing alcohol, acetone, petrol
and other solvents.
6.6 Replace the batteries up to date. If the battery level is low, the sensor
sends signal to the alarm system receiver unit. Detector also signals about
low battery with sound signals: one short sound signal - main batteries
CR2 are discharged; two short sound signals – additional CR2032 battery is
discharged; three sound signals - both batteries are discharged.
To replace the batteries, switch off FireProtect with power button, unscrew
screws «4» (PICTURE 1) and remove detector cover. Detector has elements
that blocks cover assembly without installed the main set of batteries. Change
batteries with new ones, following polarity. Switch on FireProtect with power
button.
7. WARRANTY
7.1 The warranty period for the detector is 24 months. Warranty does not apply
to the batteries!
