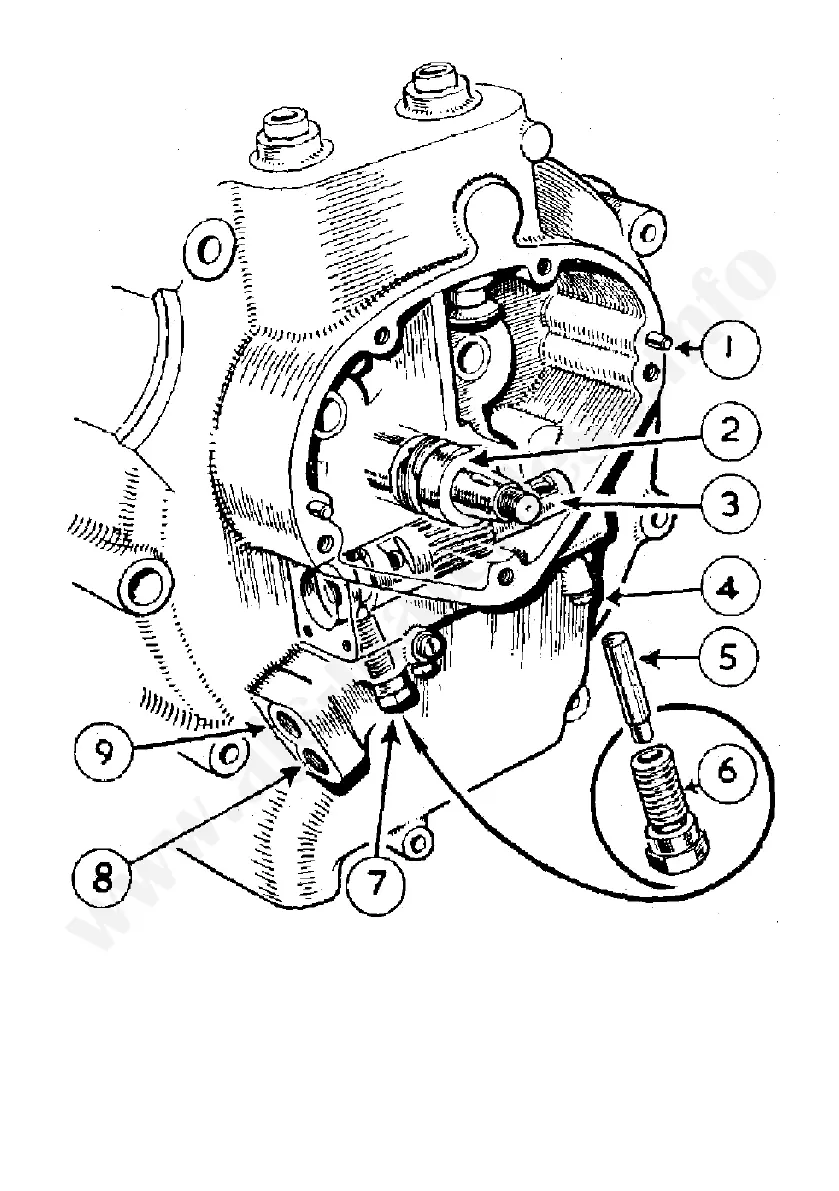

FIG 9
The rotating oil pump plunger is here shown in situ, together
with the guide screw which registers in the plunger profiled
groove, thereby providing the reciprocating movement.
