(A)
(B)
(C)

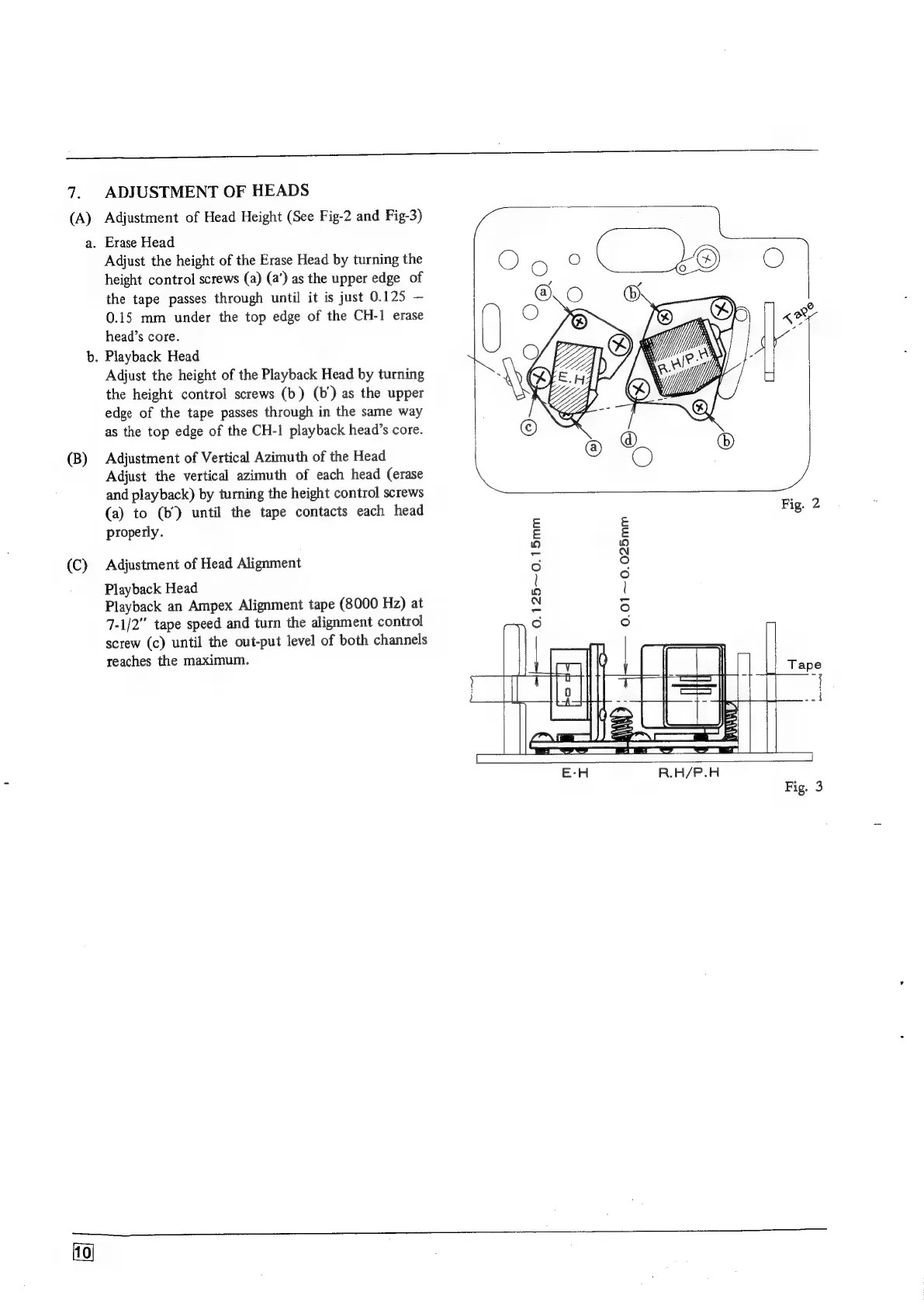

ADJUSTMENT
OF
HEADS
Adjustment
of
Head
Height
(See
Fig-2
and
Fig-3)
.
Erase
Head
Adjust
the
height
of
the
Erase
Head
by
turning
the
height
control
screws
(a)
(a’)
as
the
upper
edge
of
the
tape
passes
through
until
it
is
just
0.125
—
0.15
mm
under
the
top
edge
of
the
CH-1
erase
head’s
core.
.
Playback
Head
Adjust
the
height
of
the
Playback
Head
by
turning
the
height
control
screws
(b)
(b’)
as
the
upper
edge
of
the
tape
passes
through
in
the
same
way
as
the
top
edge
of
the
CH-1
playback
head’s
core.
Adjustment
of
Vertical
Azimuth
of
the
Head
Adjust
the
vertical
azimuth
of
each
head
(erase
and
playback)
by
turning
the
height
control
screws
(a)
to
(b’)
until
the
tape
contacts
each
head
properly.
Adjustment
of
Head
Alignment
Playback
Head
Playback
an
Ampex
Alignment
tape
(8000
Hz)
at
7-1/2"
tape
speed
and
turn
the
alignment
control
screw
(c)
until
the
out-put
level
of
both
channels
reaches
the
maximum.
0.125~0.15mm
0.01~0.025mm
