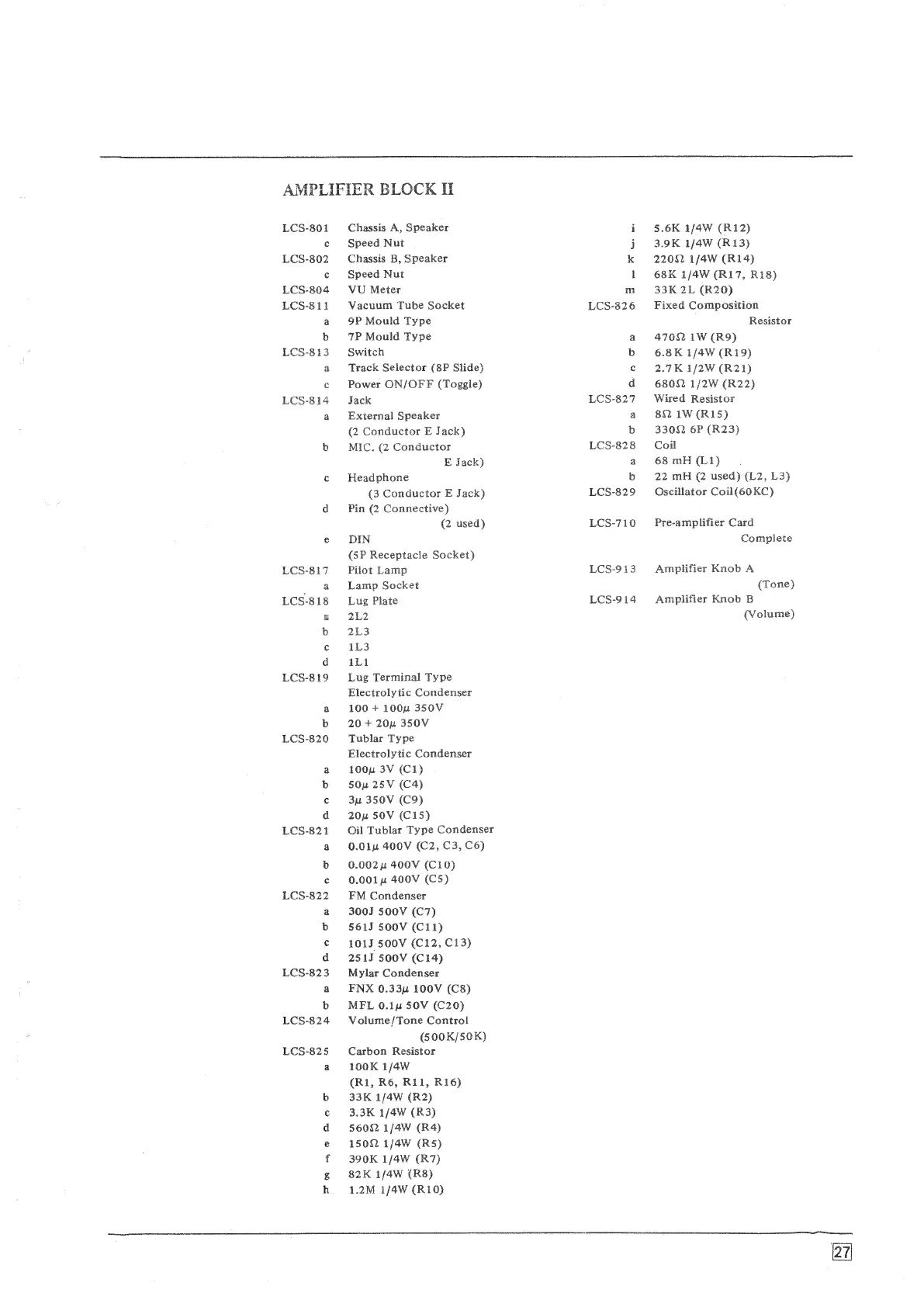

Akai 1710W

LCS-804
LCS-811
LCS-814
a
LCS-817
a
LCS-8 18
a
b
c
d
LCS-819
LCS-820
aot p
LCS-821
a
b
c
LCS-822
a
b
c
d
LCS-823
a
b
LCS-824
LCS-825
a
SFmaenmoan es
Chassis A, Speaker
Speed Nut
Chassis B, Speaker
Speed Nut
VU Meter
Vacuum Tube Socket
9P Mould Type
7P Mould Type
Switch
Track Selector (8P Slide}
Power ON/OFF (Toggle)
Jack
External Speaker
(2 Conductor E Jack)
MIC. (2 Conductor
E Jack)
Headphone
(3 Conductor E Jack)
Pin (2 Connective)
(2 used)
DIN
(SP Receptacle Socket)
Pilot Lamp
Lamp Socket
Lug Plate
2L2
2L3
1L3
1L1
Lug Terminal Type
Electrolytic Condenser
100 + 100u 350V
20 + 20u 350V
Tublar Type
Electrolytic Condenser
100u 3V (C1)
50u 25V (C4)
3y 350V (C9)
204 SOV (C15)
Oil Tublar Type Condenser
0.0iu 400V (C2, C3, C6)
0.002 u 400V (C10)
0.0014 400V (C5)
FM Condenser
3003 500V (C7)
561) 500V (C11)
1013 500V (C12, C13)
2513 500V (C14)
Mylar Condenser
FNX 0.334 100V (C8)
MFL 0.1 50V (C20)
Volume/Tone Control
(500K/50K)
Carbon Resistor
100K 1/4W
(R1, R6, R11, R16)
33K 1/4W (R2)
3.3K 1/4W (R3)
56022. 1/4W (R4)
1502 1/4W (RS)
390K 1/4W (R7)
82K 1/4W (R8)
1.2M 1/4W (R10)
pe A te
LCS-826
ao Sw
LCS-827
a
b
LCS-828
a
b
LCS-829
LCS-710
LCS-91i3
LCS-914
5.6K 1/4W (R12)
3.9K 1/4W (R13)
2202 1/4W (R14)
68K 1/4W (R17, R18)
33K 2L (R20)
Fixed Composition
Resistor
47062 1W (R9)
6.8K 1/4W (R19)
2.7K 1/2W (R21)
6802 1/2W (R22)
Wired Resistor
82 1W (R15)
3302 6P (R23)
Coil
68 mH (L1)
22 mH (2 used) (L2, L3}
Oscillator Coil(60KC)
Pre-amplifier Card
Complete
Amplifier Knob A
(Tone)
Amplifier Knob B
(Volume)
