AM-2850/2950
No.
8
ITI. AMPLIFIER ADJUSTMENT
NOTE:
The
letter
''b''
added
to
each
part
symbol
in
the
following
figures
denotes
the
right
channel
(example,
TR11b).
VR1 VR2 VR3
5OkB SOkB 1kB
(OUT) CIN) IDLING CURRENT(L ch)
DC BALANCE (L ch)
DC_BALANCE(R ch)
VRIb VR2b IDLING CURRENT(R ch)
50kB 50kB VR3b
(OUT) (IN)

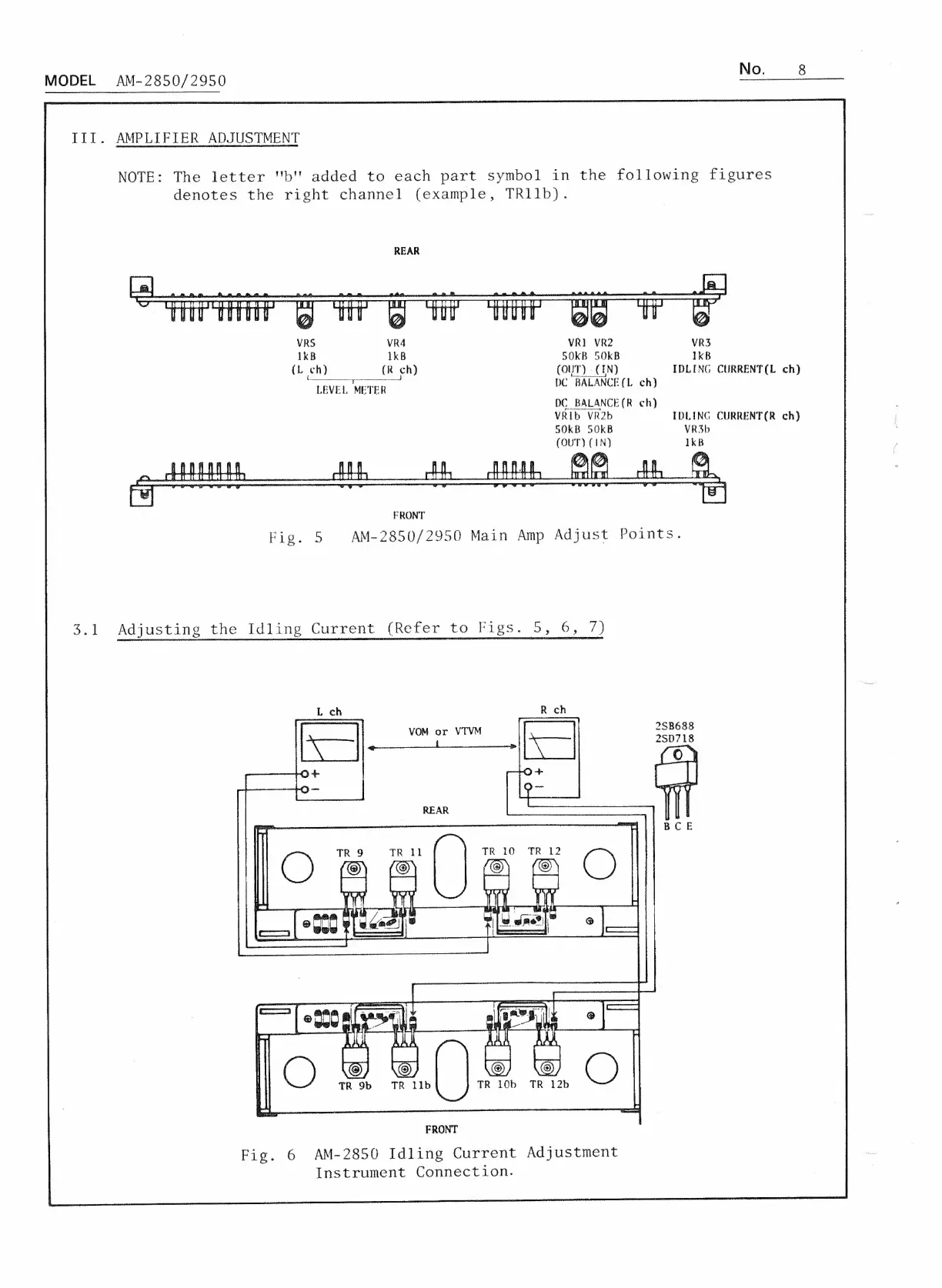

Fig.
5
AM-2850/2950
Main
Amp
Adjust
Points.
3.1
Adjusting
the
Idling
Current
(Refer
to
Figs.
5,
6,
7)
2SB6388
28D718
TR Sb OTR 11b
Fig.
6
AM-2850
Idling
Current
Adjustment
Instrument
Connection.
