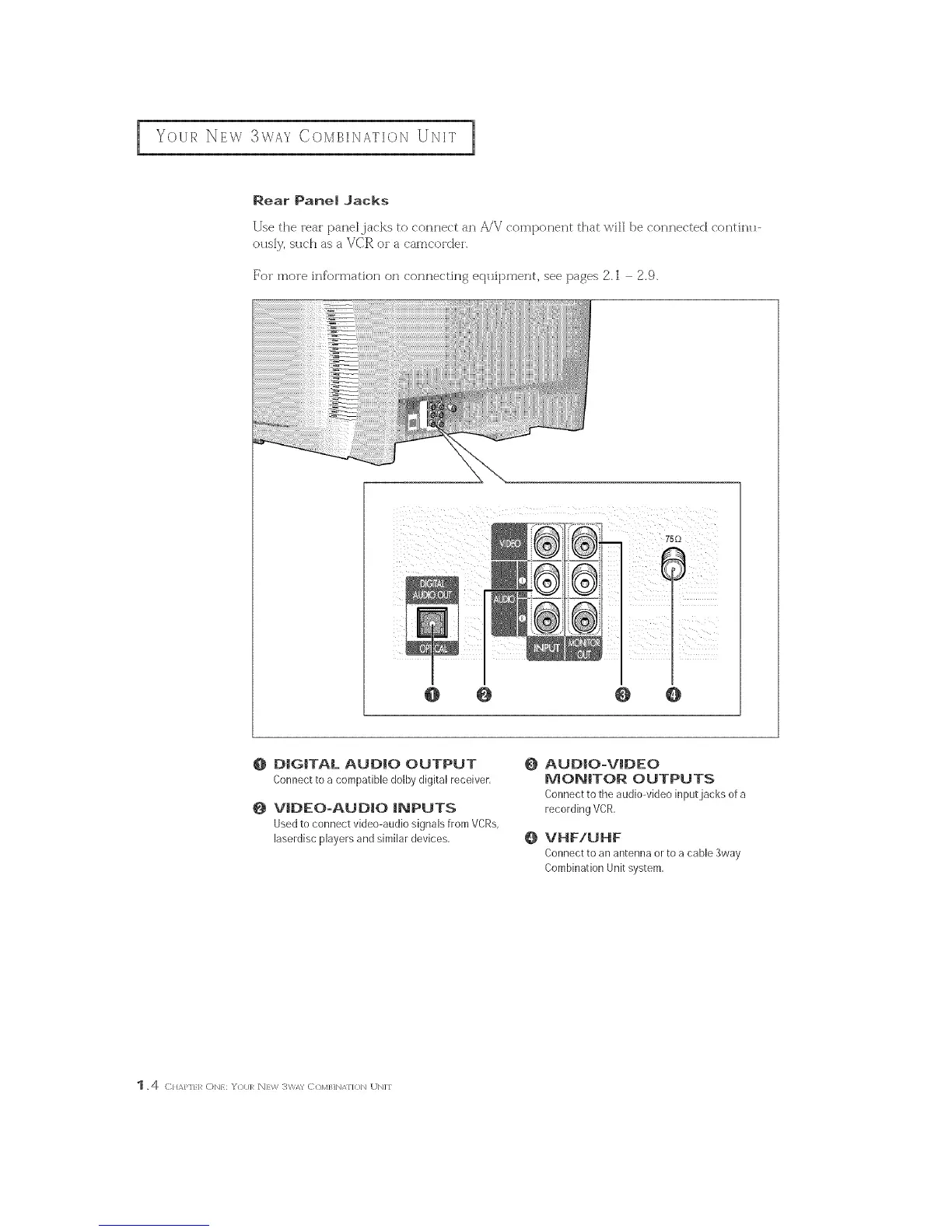

YOUR b,]EW 3WAY COMBINATION UNIT
Rear Panel Jacks
Use the _ear parle] jacks to c'orlnect an AJV component that will be connected contin_l-
ousb/, such as a VCR o_a camco[dei,
For mole inf'o_mation on connecting equipment, see [)ages 2.1 2.9.
@ @ @ @
O DIGITAL AUDIO OUTPUT
Connectto a compatibledolbydigitalreceiver.
VIDEO-AUDIO INPUTS
Usedto connect video-audio signals from VCRs,
laserdisc players and similar devices,
@ AUDIO-VIDEO
MONITOR OUTPUTS
Connecttotheaudio-videoinputjacks ofa
recordingVCR.
O VHFIUHF
Connect to an antenna or to a cable 3way
Combination Unit system,
