Ref. No. Mfr's Part No. Qty.
*CdF FUSE HOLDER, HTF-015 550-790000-000 8
4-SPEAKER PORTION - SSQ3
1 SPEAKER CLOTH #FP-662-0WT (SILVER GREY) (200mmX160mm)X4PCS/SET 662-0FP662-000 0.0875
WIDTH:60"-62" UNIT"YD"
2 SPEAKER CLOTH MESH, CAV.4 (HIPS) 509-SSQ303-000 4
3 SPEAKER PANEL, MOLD CNS-0360 (HIPS), w/SPY 500-SSQ301-xxx 4
4 SPK00003"008OHM0050W w/BK DOME PAPER CAP 131-308050-010 4
#LF77SZ4307G55C8AS19PDB (GGEC)(L0234)
5 HOLE COVER, MOLD CNS-0360 (HIPS) CAV:8 500-SSQ104-000 4
6 SPEAKER CABINET, MOLD GREY(CNS-0360) (HIPS), w/ENGRAVING 500-SSQ102-000 4
7 PUSH TERMINAL BOARD PT-213-03 BLACK, RED, 118-000213-000 4
MSP-105H-03 BLACK, RED
FELT B, 50x15x0.3mm HIMERON w/SONY T-3500, 4/SET 700-SDC019-001 4
2-SIDED TAPE (T#9871858900)
SCREW ST3x35mm, PAB (M3.5 HEAD) BRASS BASED 16/CAB-SPK PANEL 720-010300-350 16
SCREW ST3x8mm, BB HEAD V5.9-6.3, 8/PUSH TER.BOARD-SPK CAB 720-110300-080 8
BB BRASS BASED
SCREW ST3x10mm BB HEAD V5.9-6.3 BRASS BASED 16/SPK-SPK PANEL 720-110300-100
16

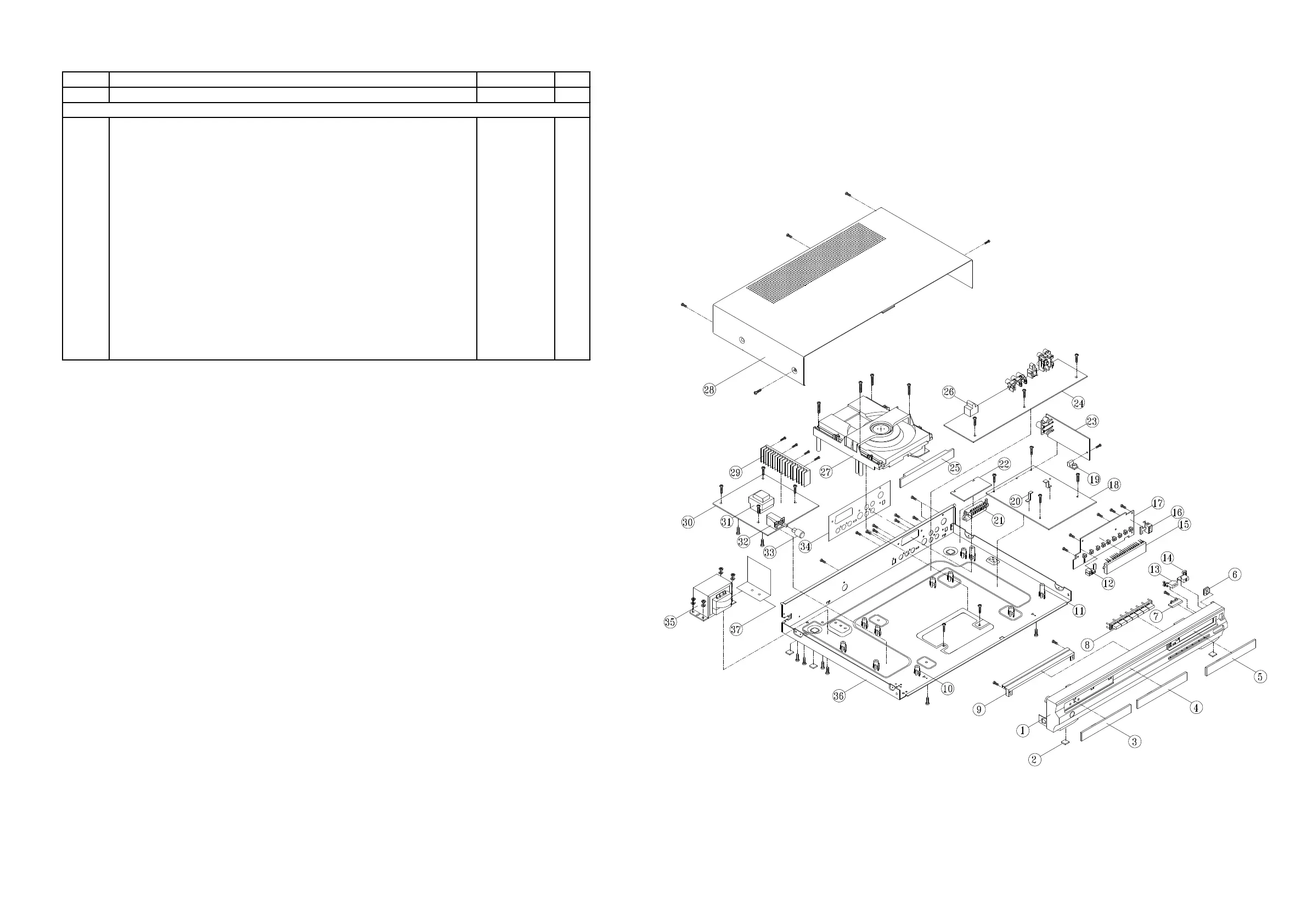

EXPLODED DRAWING - MAIN UNITEXPLODED DRAWING PARTS LIST - CONTINUED
