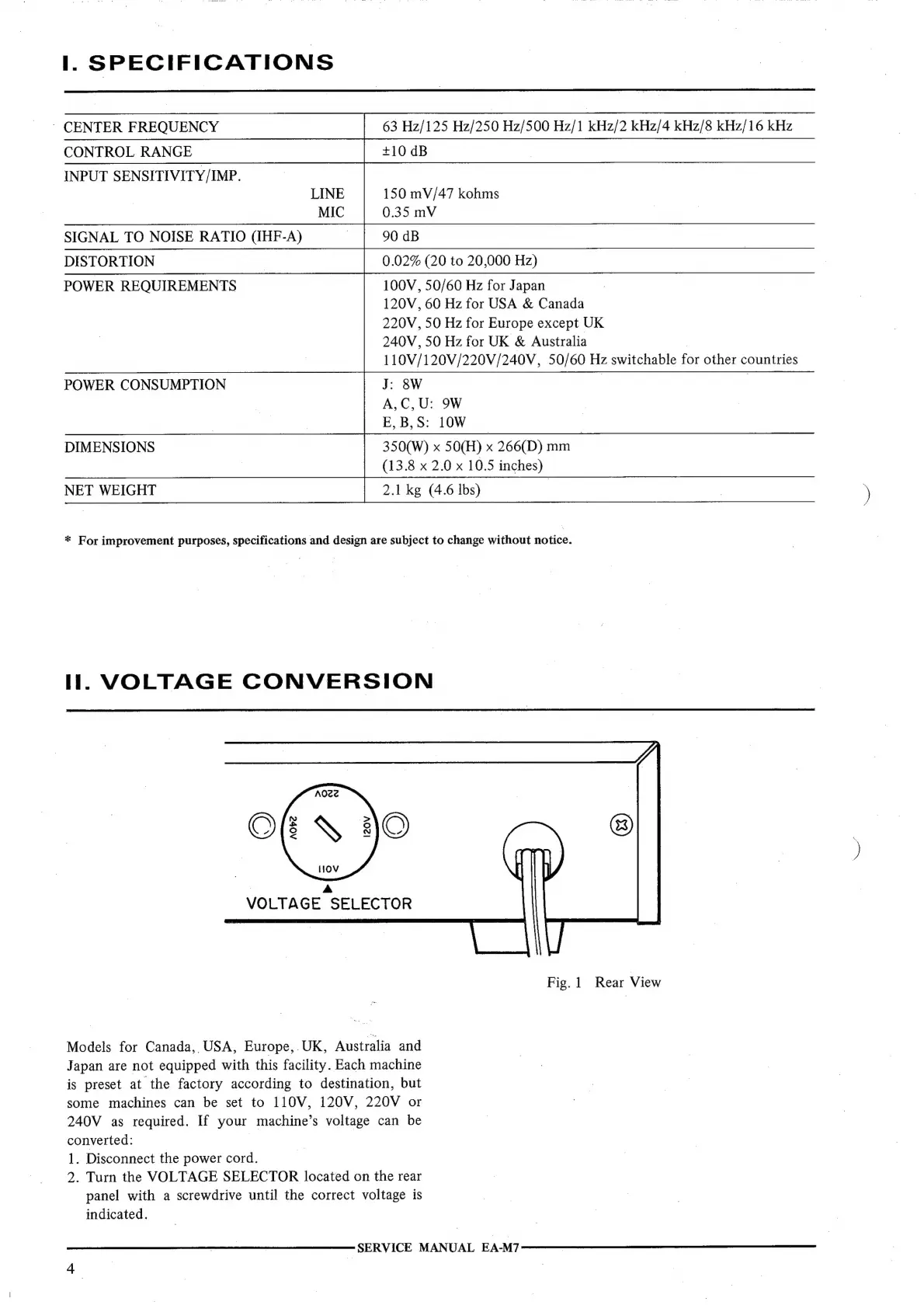

I. SPECIFICATIONS
' CENTER FREQUENCY
CONTROL RANGE
INPUT SENSITIVITY/IMP.
LINE
MIC
SIGNAL TO NOISE RATIO (IHF-A)
DISTORTION
POWER REQUIREMENTS
POWER CONSUMPTION
DIMENSIONS
NET WEIGHT
63 Hz/125 Hz/250 Hz/500 Hz/1 kHz/2 kHz/4 kHz/8 kHz/16 kHz
+10 dB
150 mV/47 kohms
0.35 mV
90 dB
0.02% (20 to 20,000 Hz)
100V, 50/60 Hz for Japan
120V, 60 Hz for USA & Canada
220V, 50 Hz for Europe except UK
240V, 50 Hz for UK & Australia |
110V/120V/220V/240V, 50/60 Hz switchable for other countries
J: 8W
A,C,U: 9W
E,B,S: 1OW | |
350(W) x 50(H) x 266(D) mm
(13.8 x 2.0 x 10.5 inches)
2.1 kg (4.6 Ibs)
* For improvement purposes, specifications and design are subject to change without notice.
Il. VOLTAGE CONVERSION
© ®
()
7 A
VOLTAGE SELECTOR
Fig.1 Rear View
Models for Canada, USA, Europe, UK, Australia and
Japan are not equipped with this facility. Each machine
is preset at the factory according to destination, but
some machines can be set to 110V, 120V, 220V or
240V as required. If your machine’s voltage can be
converted:
1. Disconnect the power cord.
2. Turn the VOLTAGE SELECTOR located on the rear
panel with a screwdrive until the correct voltage is
indicated.
SERVICE MANUAL EA-M7
