Akai GX-225D

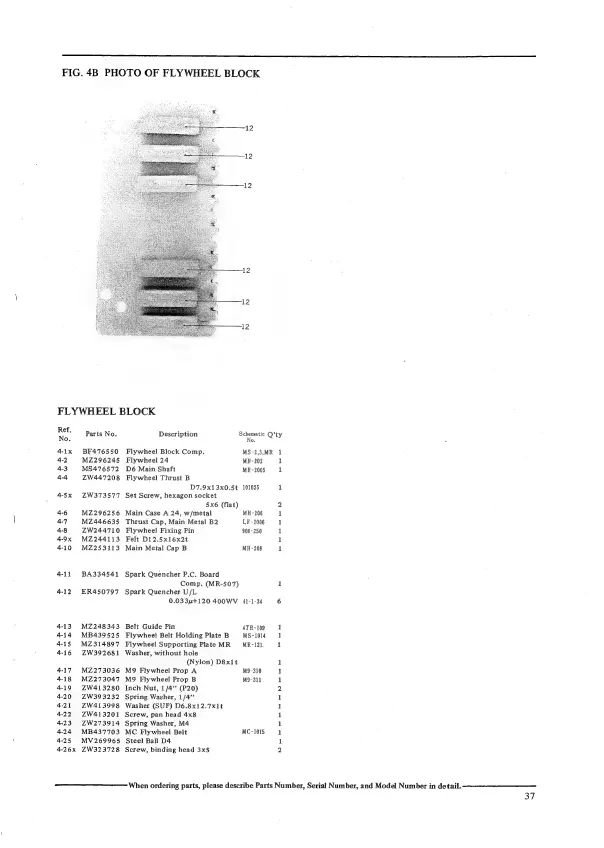

FIG. 4B PHOTO OF FLYWHEEL BLOCK
FLYWHEEL BLOCK
oe Parts No. Description oceeere Q’ty
4-1x BF476550 Flywheel Block Comp. MS-2,3,MR 1
4-2 MZ296245 Flywheel 24 MH-202 1
4-3 MS476572 D6 Main Shaft MR-2005 1
4-4 ZW447208 Flywheel Thrust B
D7.9x13x0.5t 101025 1
4-5x ZW373577 Set Screw, hexagon socket
5x6 (flat) 2
4-6 MZ296256 Main Case A 24, w/metal MH-206 1
4-7 MZ446635 Thrust Cap, Main Metal B2 LF-2006 1
4-8 ZW244710 Flywheel Fixing Pin 900-250 1
49x MZ244113 Felt D12.5x16x2t 1
4-10 MZ253113 Main Metal Cap B MH-208 i
4-11 BA334541 Spark Quencher P.C. Board
Comp. (MR-507) 1
4-12, ER450797 Spark Quencher U/L
0.033u+120 400WV 41-1-34 6
4-13. MZ248343 Belt Guide Pin 4TR-109 1
4-14 MB439525 Flywheel Belt Holding Plate B MS-1014 1
4-15 MZ314897 Flywheel Supporting PlateMR MR-121.
4-16 ZW392681 Washer, without hole
[i
(Nylon) D&xit
4-17 MZ273036 M9 Flywheel Prop A M9-310
4-18. MZ273047 M9 Flywheel Prop B M9-311
4-19 ZW413280 Inch Nut, 1/4” (P20)
4-20 ZW393232 Spring Washer, 1/4’
4-21 ZW413998 Washer (SUP) D6.8x12.7xit
4-22 ZW413201 Screw, pan head 4x8
4.23 ZW273914 Spring Washer, M4
4-24 MB437703 MC Flywheel Belt MC-1015
4-25 MV269965 Steel Ball D4
4-26x ZW323728 Screw, binding head 3x5
Dek ee Ret et
