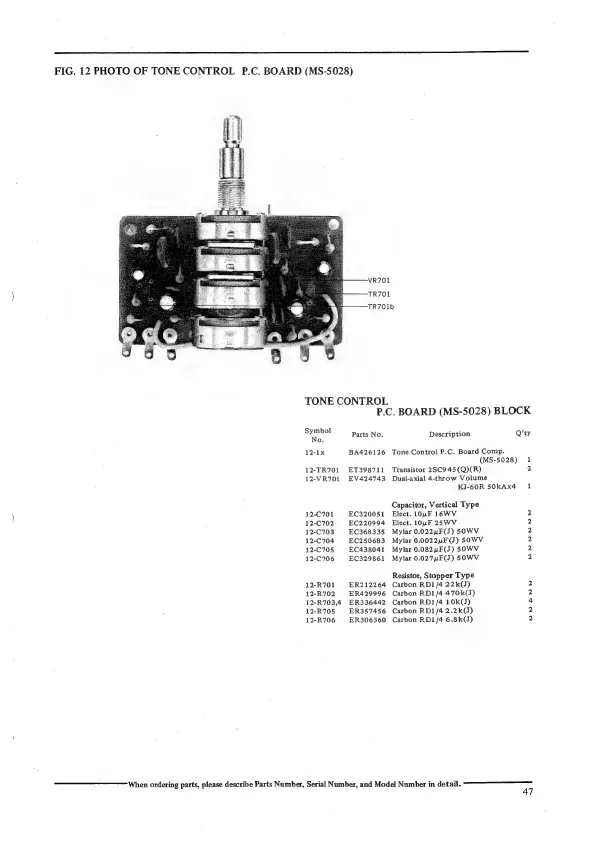

FIG. 12 PHOTO OF TONE CONTROL P.C. BOARD (MS-5028)
VR701
TR701
TR701b
TONE CONTROL
P.C. BOARD (MS-5028) BLOCK
Symbol Parts No. Description Q’ty
No.
12-1x BA426126 Tone Control P.C. Board Comp.
(MS-5028) 1
12-TR701 ET398711 Transistor 28C945(Q)(R) 2
12-VR701 EV424743 Dual-axial 4-throw Volume
KJ-60R 50kAx4 1
Capacitor, Vertical Type
12-C701 EC320051 Elect. 10uF 16WV 2
12-C702 EC220994 Elect. 10uF 25WV 2
12-C703. EC368335 Mylar 0.022uF(J) SOWV 2
12-C704 EC250683 Mylar 0.0022uF(J) 50WV 2
12-C705 EC438041 Mylar 0.082uF(J) S0WV 2
12-C706 EC329861 Mylar 0.027uF(J) 50WV 2
Resistor, Stopper Type
12-R701 ER212264 Carbon RD1/4 22k(J) 2
12-R702 ER429996 Carbon RD1/4 470k(J) 2
12-R703,4 ER336442 Carbon RD1/4 10k(5) 4
12-R705 ER357456 Carbon RD1/4 2.2k(J) 2
12-R706 ER306360 Carbon RD1/4 6.8k(J) 2
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
