Akai GX-230D

X O1 to 0.3mm
Fig. 7
TENSION ARM
ie
ADJUSTMENT
—_
ma
i
[>
ADJUSTMENT
WASHER
(U
OE
Ces
a
>
WASHER
(U
TYPE)
%
Lower
the
guide
%
Lift
Hg
guide
slightly
ea Ee
ssf Gees ;
Fig. 8

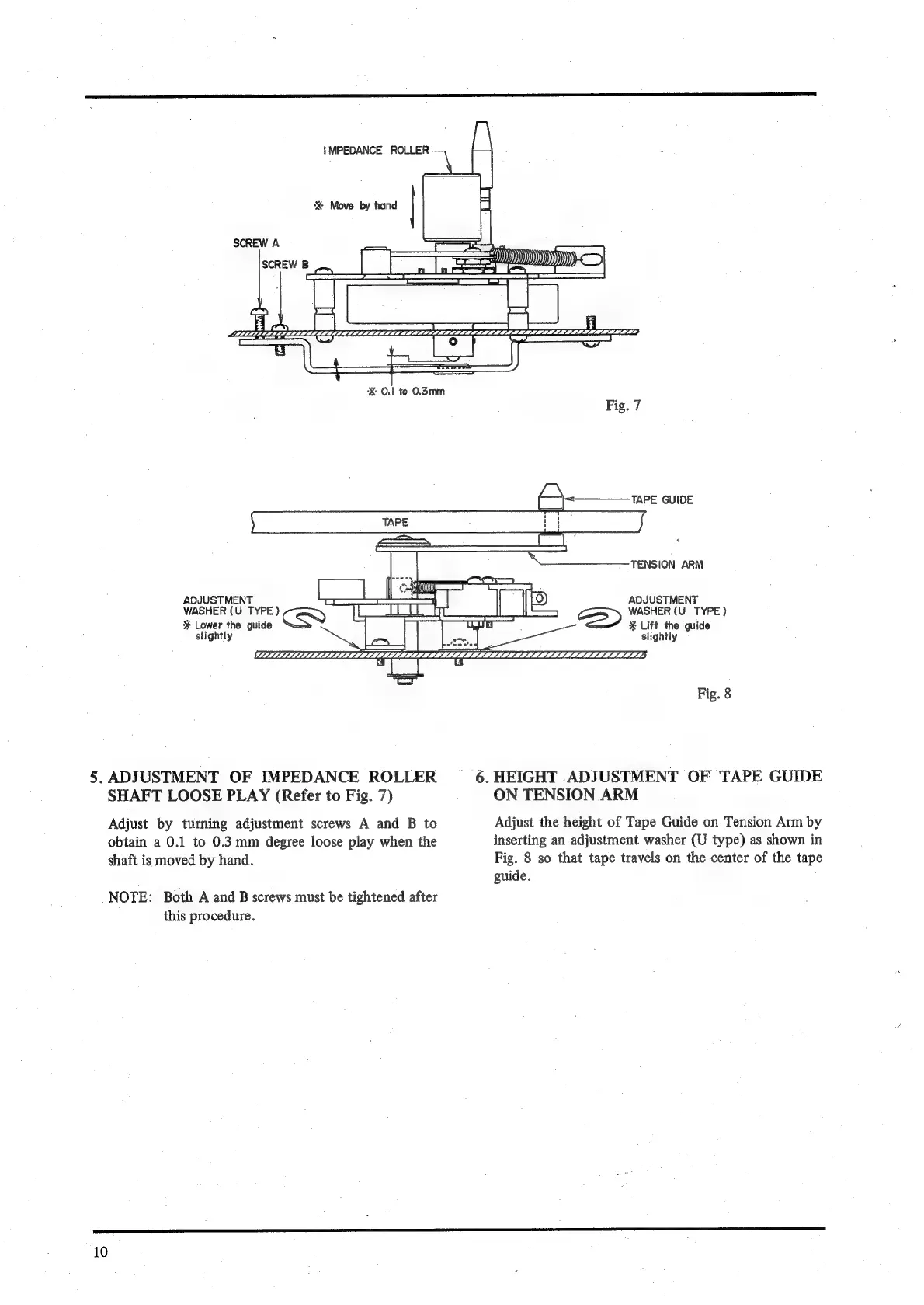

5. ADJUSTMENT OF IMPEDANCE ROLLER 6. HEIGHT ADJUSTMENT OF TAPE GUIDE
SHAFT LOOSE PLAY (Refer to Fig. 7) ON TENSION ARM
Adjust by turning adjustment screws A and B to Adjust the height of Tape Guide on Tension Arm by
obtain a 0.1 to 0.3 mm degree loose play when the inserting an adjustment washer (U type) as shown in
shaft is moved by hand. Fig. 8 so that tape travels on the center of the tape
guide.
NOTE: Both A and B screws must be tightened after
this procedure.
10
