Akai GX-230D

SWITCH LEVER
*% O3mm or
just contacts
PLAY MICRO SWITCH
(SW-7 & SW-I1)
% Approx. |,0mm
ACTIVATOR

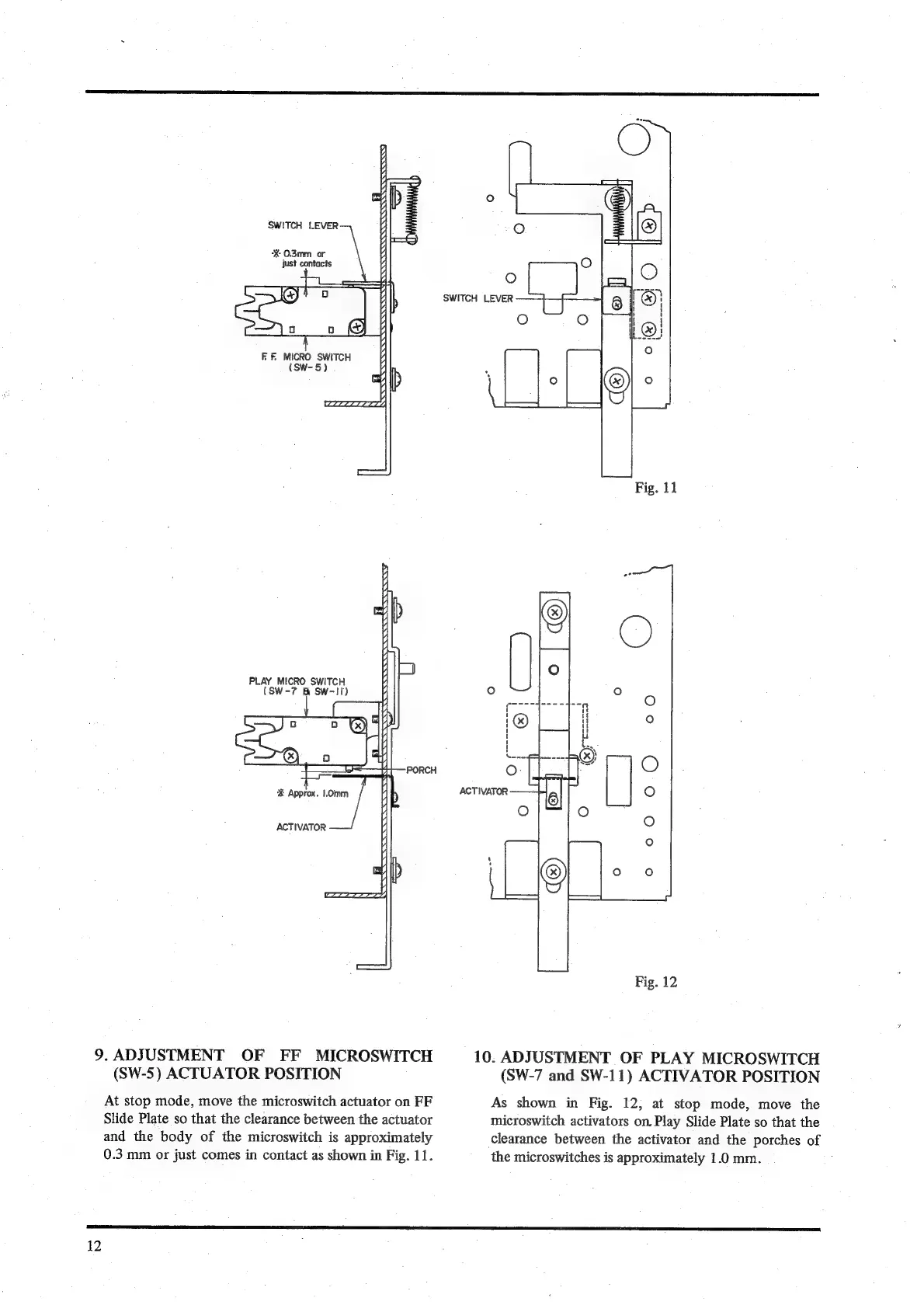

9. ADJUSTMENT OF FF MICROSWITCH
(SW-5) ACTUATOR POSITION
At stop mode, move the microswitch actuator on FF
Slide Plate so that the clearance between the actuator
and the body of the microswitch is approximately
0.3 mm or just comes in contact as shown in Fig. 11.
Fig. 11
1
Lit wont |
Fig. 12
10. ADJUSTMENT OF PLAY MICROSWITCH
(SW-7 and SW-11) ACTIVATOR POSITION
As shown in Fig. 12, at stop mode, move the
microswitch activators on, Play Slide Plate so that the
Clearance between the activator and the porches of
the microswitches is approximately 1.0mm. _
