3.
12
SUPPLY VOLTAGE TO BOTH TORQUE
MOTORS AND TENSION AT EACH MODE
(Values indicated are during operating mode)
Chart 1
1.5 TO L6Kg Fig. 12

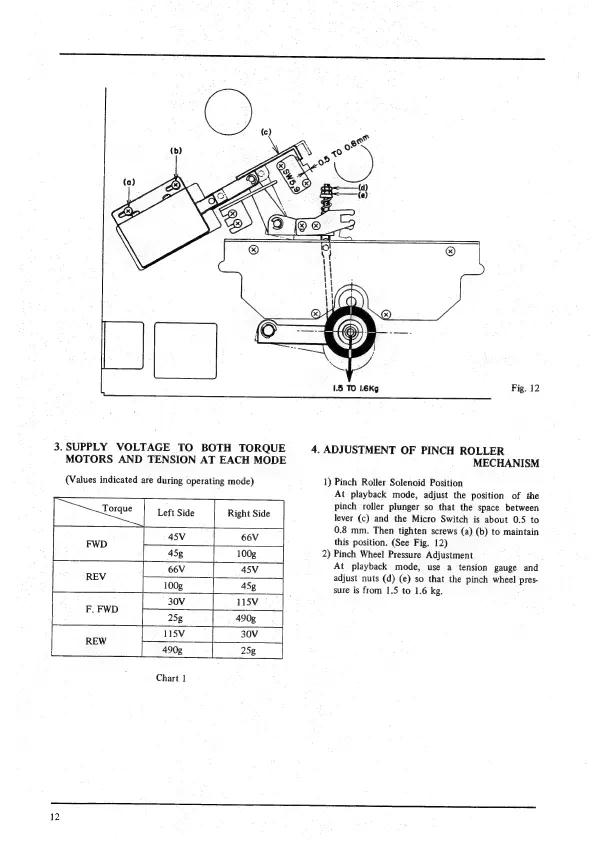

4. ADJUSTMENT OF PINCH ROLLER
MECHANISM
1) Pinch Roller Solenoid Position
At playback mode, adjust the position of the
pinch roller plunger so that the space between
lever (c) and the Micro Switch is about 0:5 to
0.8 mm. Then tighten screws (a) (b) to maintain
this position. (See Fig. 12)
2) Pinch Wheel Pressure Adjustment
At playback mode, use a tension gauge and
adjust nuts (d) (e) so that the pinch wheel pres-
sure is from 1.5 to 1.6 kg.
