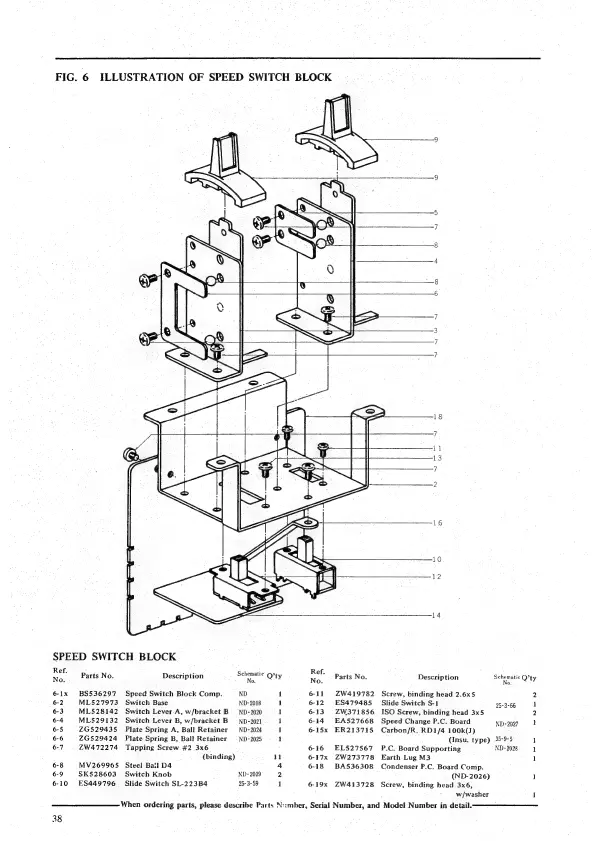

FIG. 6 ILLUSTRATION OF SPEED SWITCH BLOCK
NM oN WON
16
10
12
SPEED SWITCH BLOCK |
Ref.
No.
6-1x
6-2
6-3
6-4
6-5
6-6
6-7
6-8
6-9
6-10
38
Parts No.
BS536297
ML527973
ML528142
ML529132
ZG$29435
ZG529424
Z2W472274
MV269965
SK528603
ES449796
Description Seems Q’ty
Speed Switch Block Comp. ND
Switch Base ND-2018
Switch Lever.A, w/bracket B ~- ND-2020
Switch Lever B, w/bracket B- ND-2021
Plate Spring A, Ball Retainer | ND-2024
Plate Spring B, Ball Retainer ~ ND-2025
Tapping Screw #2 3x6
(binding)
Steel Ball D4
Switch Knob ND- 2029
Slide Switch SL-223B4 25-3-59
fumarate
i1
4
2.
1
Ref.
No.
6-11
6-12
6-13
6-14
6-15x
6-16
6-17x
6-18
6-19x
Parts No.
ZW419782
ES479485
Z2W371856
EA527668
ER213715
EL527567
ZW273778
BA536308
ZW413728
When ordering parts, please describe Parts N::mber, Serial Number, and Model Number in detail.
14
Description
Screw, binding head 2.6x5
Slide Switch S-1
ISO Screw, binding head 3x5
Speed Change P.C. Board
Carbon/R. RD1/4 100k(J)
(Insu. type)
P.C. Board Supporting
Earth Lug M3
Condenser P.C. Board Comp.
(ND-2026)
Screw, binding head. 3x6,
w/washer
Schematic Q’ty
No.
25-366
ND- 2027
35°9-5
ND-2028
-— Nm NY
1
