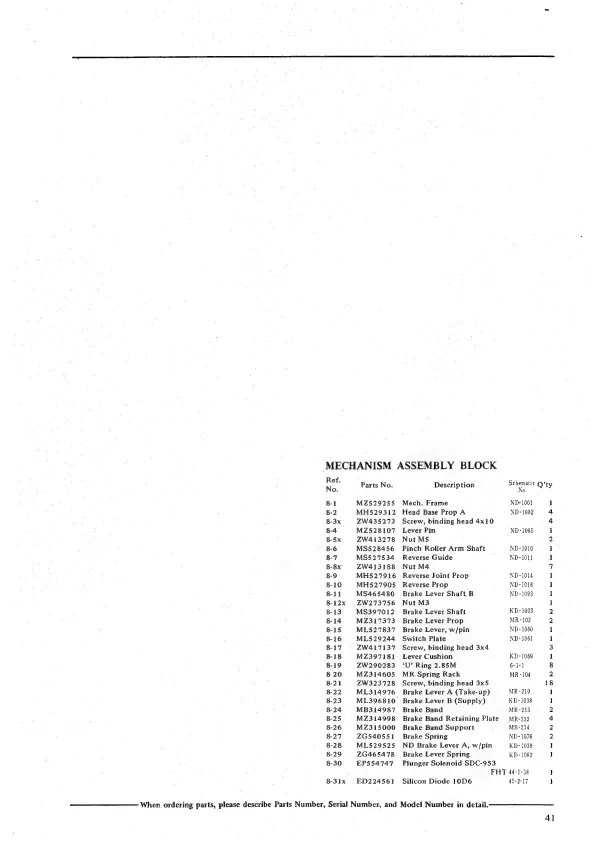

MECHANISM ASSEMBLY BLOCK
Ref.
No.
8-1
8-2
8-3x
8-4
8-5x
8-6
8-7
8-8x°
8-9
8-10
8-11
8-12x
8-13
8-14
8-15
8-16
8-17
8-18
8-19
8.20
8-21
8-22
8-23
8-24
8-25
8-26
8-27
8-28
8-29
8-30
8-31x
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
Parts No.
MZ529255
MH529312
Z2W435273
MZ528107
ZW413278
MS528456
MS527534
ZW413188
MH527916
MH527905
MS465480
ZW273756
MS397012
MZ317373
ML527837
ML529244
ZW417137
MZ397181
ZW290283
MZ314605
ZW323728
ML314976
ML396810°
MB314987
MZ314998
MZ315000
ZG540551
ML529525
ZG465478
EP554747
ED224561
Description anes Q’ty
Mech. Frame ND-1001 1
Head Base Prop A ND-1002 4
Screw, binding head 4x10 4
Lever Pin ND-1005 1
Nut MS 2
Pinch Roller Arm Shaft ND-1010 1
Reverse Guide ND-1011 i
Nut M4 7
Reverse Joint Prop ND-1014 1
Reverse Prop ND-1018 1
Brake Lever Shaft. B ND-1093 1
Nut M3 1
Brake Lever Shaft KD-1003 2
Brake Lever Prop MR-102 2
Brake Lever, w/pin ND-1060 1
Switch Plate ND- 1061 i
Screw, binding head 3x4 3
Lever Cushion KD-1069 1
‘U’ Ring 2.85M 6-1-1 8
MR Spring Rack MR-104 2
Screw, binding head 3x5 18
Brake Lever A (Take-up) MR-210 1
Brake Lever B (Supply) KD-1038 1
Brake Band MR +213 2
Brake Band Retaining Plate —MR-212 4
Brake Band Support MR-214 2
Brake Spring ND-+1076 2
ND Brake Lever A, w/pin KD- 1039 1
Brake Lever Spring KD-1692 1
Plunger Solenoid SDC-953
FHT 44-1-58 J
Silicon Diode 10D6 45-217 1
