24
4 GND Ground
J10(4pin/2.0)：DEBUG CONNECTOR
NO. Definition DESCRIPTION
1 +5V +5V Power Supply
2 GND Ground
3 RXD Serial Data Receiver
4 TXD Serial Data Transmitter
CON3 (4pin/2.0)：Expand USB PORT(NC)
NO. Definition DESCRIPTION
1 GND Ground
2 DP USB Data+
3 DM USB Data-
4 +5V +5V Power Supply for USB

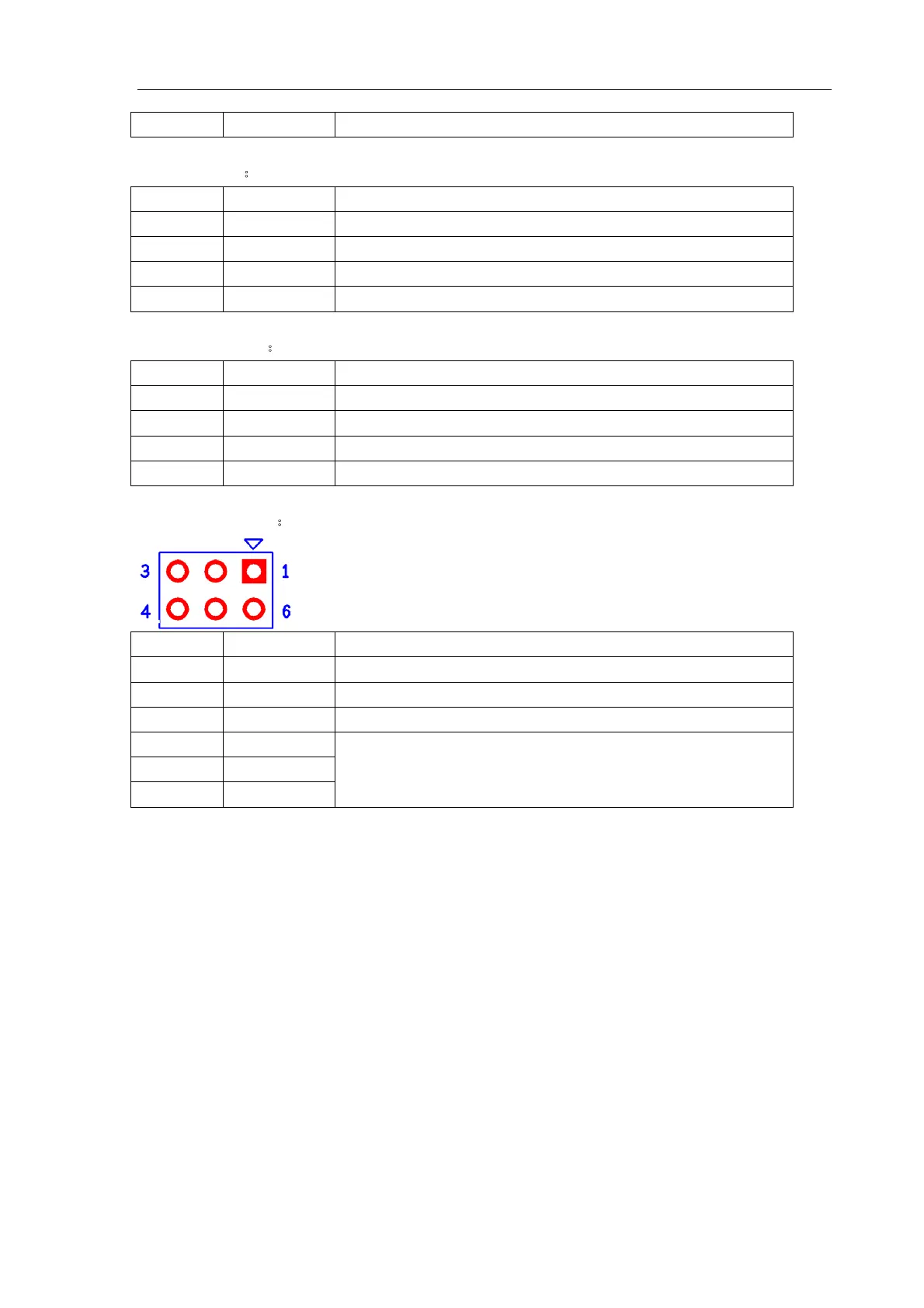

JUPM1 (6pin/2.5)：PANEL POWER SUPPLY
NO. SYMBOL DESCRIPTION
1 +3.3V +3.3V Panel Power in
2 +5V +5V Panel Power in
3 +12V +12V Panel Power in
4 VCC_Panel
5 VCC_Panel
6 VCC_Panel
Panel Power in
To Next Page
