Akai M-9 - SOUND ON SOUND MECHANISM OPERATES

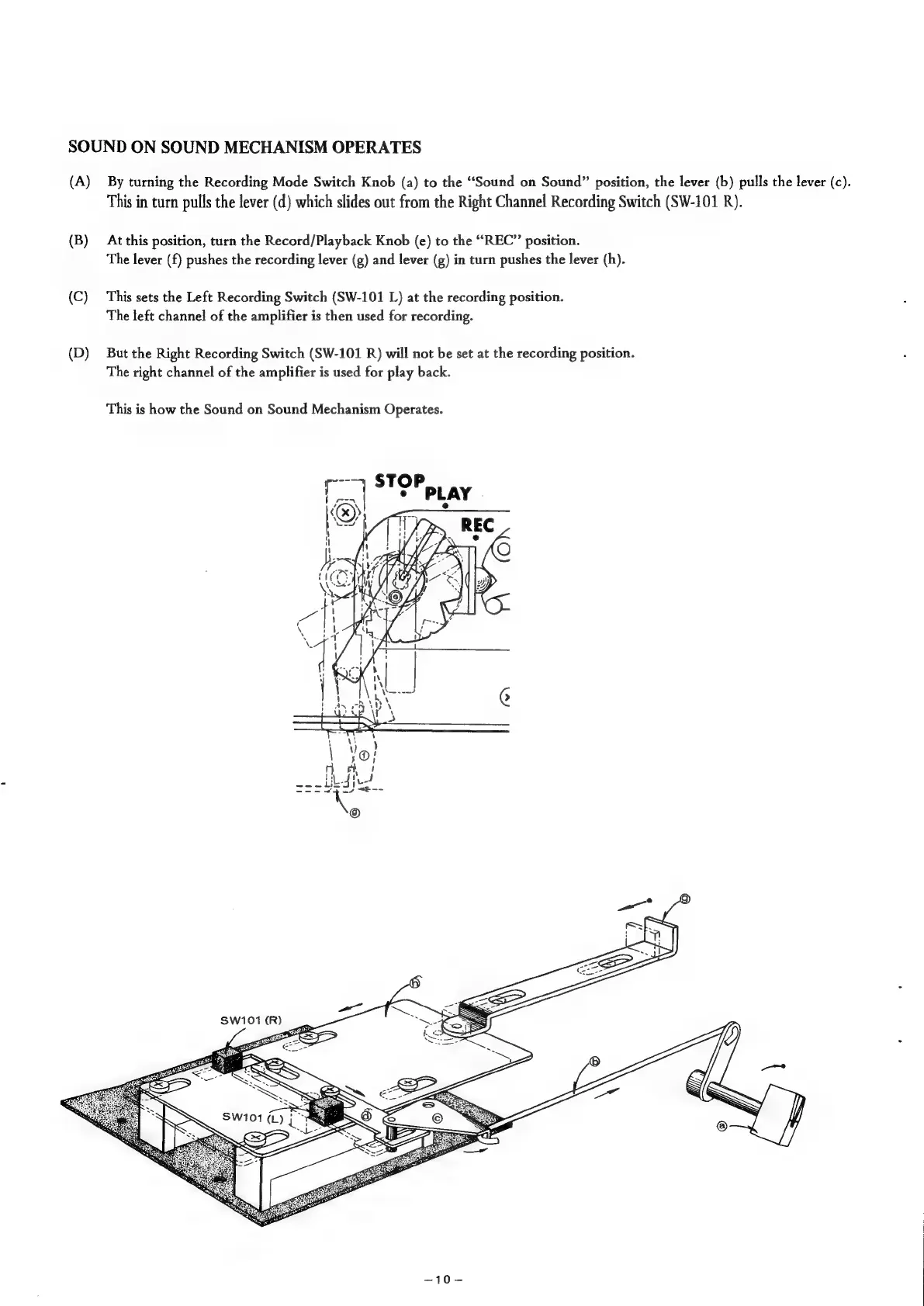

SOUND ON SOUND MECHANISM OPERATES
(A) By turning the Recording Mode Switch Knob (a) to the “Sound on Sound” position, the lever (b) pulls the lever (c).
This in turn pulls the lever (d) which slides out from the Right Channel Recording Switch (SW-101 R).
(B) At this position, turn the Record/Playback Knob (e) to the “REC” position.
The lever (f) pushes the recording lever (g) and lever (g) in turn pushes the lever (h).
(C) This sets the Left Recording Switch (SW-101 L) at the recording position.
The left channel of the amplifier is then used for recording.
(D) But the Right Recording Switch (SW-101 R) will not be set at the recording position.
The right channel of the amplifier is used for play back.
This is how the Sound on Sound Mechanism Operates.
C4 STO Po, AY
SW101 (R)
~10—
