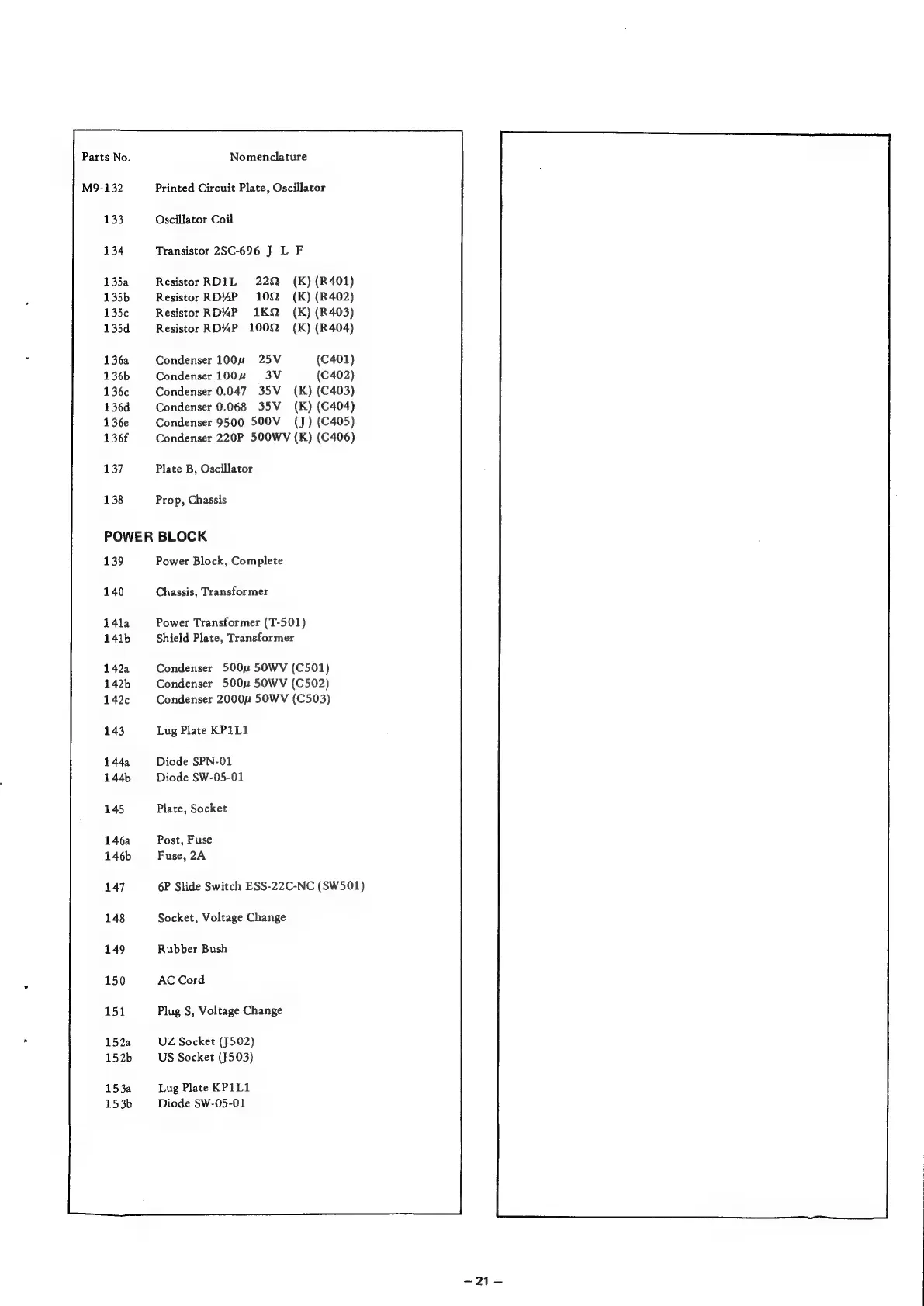

Akai M-9 - AMPLIFIER-1; AMPLIFIER-2

Parts No.
M9-132
133
134
135a
135b
135c
135d
136a
136b
136c
136d
136e
136f
137
138
Nomenclature
Printed Circuit Plate, Oscillator
Oscillator Coil
Transistor 2SC-696 J L F
Resistor RD1L 229 (K) (R401)
Resistor RDP 102 (K) (R402)
Resistor RD%4P 1KQ (K) (R403)
Resistor RD%4P 1002 (K) (R404)
Condenser 1004 25V (C401)
Condenser 100“ 8 3V (C402)
Condenser 0.047 35V_ (K) (C403)
Condenser 0.068 35V_ (K) (C404)
Condenser 9500 500V (J) (C405)
Condenser 220P 500WV (K) (C406)
Plate B, Oscillator
Prop, Chassis
POWER BLOCK
139
140
14la
141b
142a
142b
142c
143
144a
144b
145
146a
146b
147
148
149
150
151
152a
152b
153a
153b
Power Block, Complete
Chassis, Transformer
Power Transformer (T-501)
Shield Plate, Transformer
Condenser 500u 50WV (C501)
Condenser 500u 50WV (C502)
Condenser 20004 50WV (C503)
Lug Plate KP1L1
Diode SPN-01
Diode SW-05-01
Plate, Socket
Post, Fuse
Fuse, 2A
6P Slide Switch ESS-22C-NC (SW501)
Socket, Voltage Change
Rubber Bush
AC Cord
Plug S, Voltage Change
UZ Socket (J502)
US Socket (J503)
Lug Plate KP1L1
Diode SW-05-01
