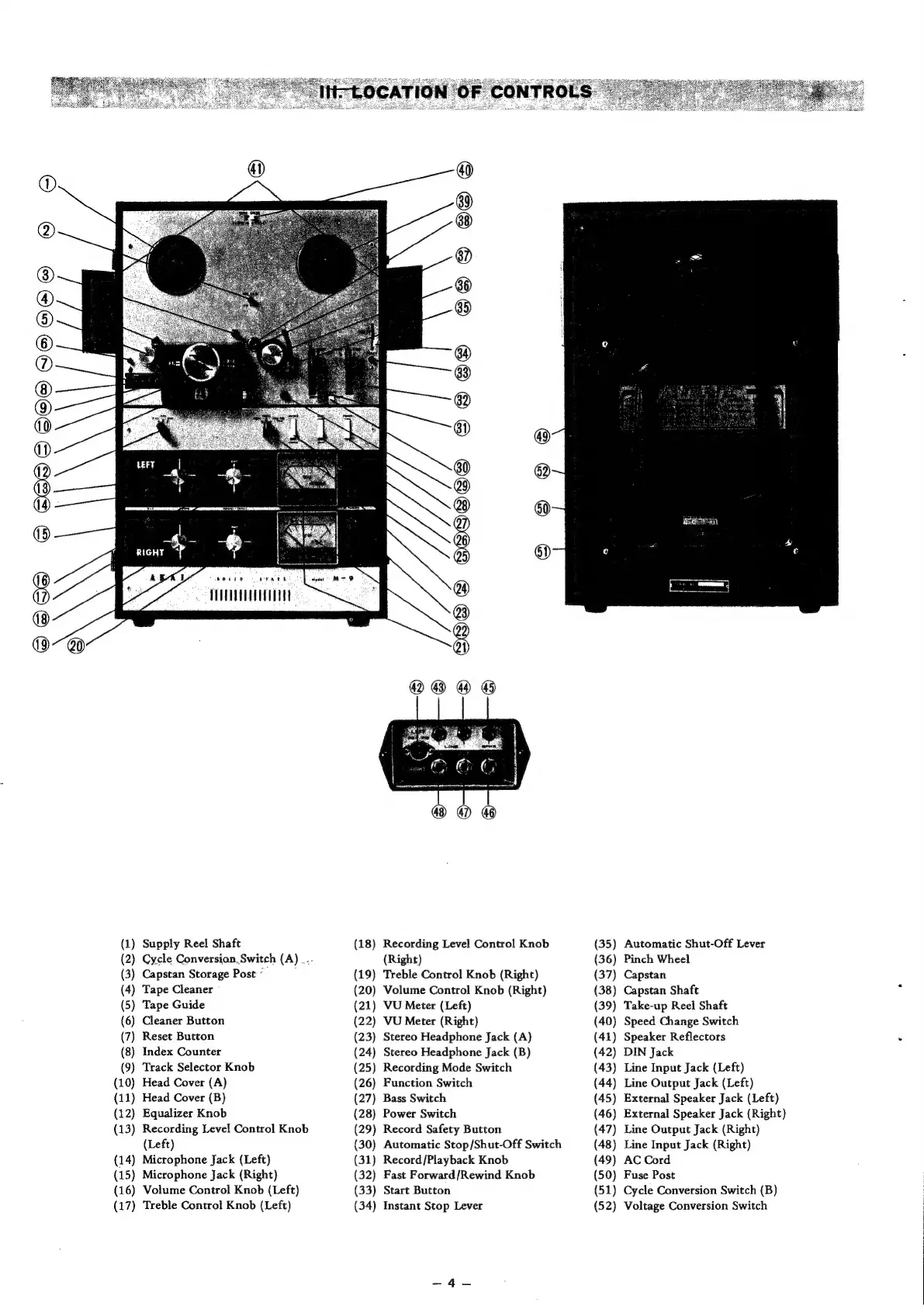

Akai M-9 - III. LOCATION OF CONTROLS

@ G99 S©2 9OHG86 © O
@ @ 9®@
(1)
Supply Reel Shaft
Cycle Conversion, Switch (A) ..-
Capstan Storage Post °
Tape Cleaner
Tape Guide
Cleaner Button
Reset Button
Index Counter
Track Selector Knob
Head Cover (A)
Head Cover (B)
Equalizer Knob
Recording Level Control Knob
(Left)
Microphone Jack (Left)
Microphone Jack (Right)
Volume Control Knob (Left)
Treble Control Knob (Left)
(18)
(19)
(20
(21)
(22)
(23)
(24)
(25)
(26)
(27)
(28)
(29)
(30)
(31)
(32)
(33)
(34)
=
Recording Level Control Knob
(Right)
Treble Control Knob (Right)
Volume Control Knob (Right)
VU Meter (Left)
VU Meter (Right)
Stereo Headphone Jack (A)
Stereo Headphone Jack (B)
Recording Mode Switch
Function Switch
Bass Switch
Power Switch
Record Safety Button
Automatic Stop/Shut-Off Switch
Record /Playback Knob
Fast Forward/Rewind Knob
Start Button
Instant Stop Lever
(35)
(36)
(37)
(38)
(39)
(40)
(41)
(42)
(43)
(44)
(45)
(46)
(47)
(48)
(49)
(50)
(51)
(52)
Automatic Shut-Off Lever
Pinch Wheel
Capstan
Capstan Shaft
Take-up Reel Shaft
Speed Change Switch
Speaker Reflectors
DIN Jack
Line Input Jack (Left)
Line Output Jack (Left)
External Speaker Jack (Left)
External Speaker Jack (Right)
Line Output Jack (Right)
Line Input Jack (Right)
AC Cord
Fuse Post
Cycle Conversion Switch (B)
Voltage Conversion Switch
