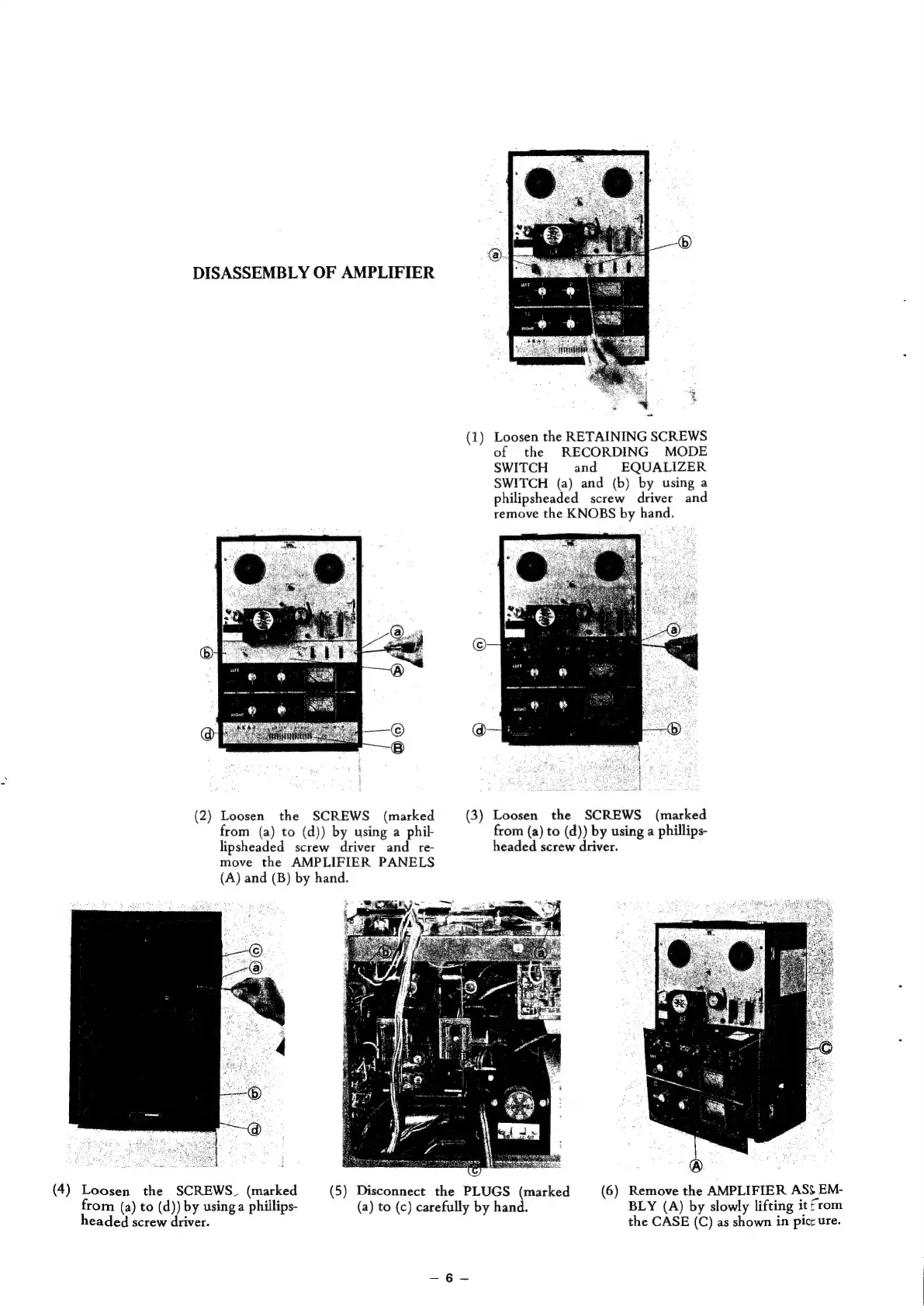

DISASSEMBLY OF AMPLIFIER
(1) Loosen the RETAINING SCREWS
of the RECORDING MODE
SWITCH and EQUALIZER
SWITCH (a) and (b) by using a
philipsheaded screw driver and
remove the KNOBS by hand.
red
gl
chek +
}
(2) Loosen the SCREWS (marked (3) Loosen the SCREWS (marked
from (a) to (d)) by using a phil- from (a) to (d)) by using a phillips-
lipsheaded screw driver and re- headed screw driver.
move the AMPLIFIER PANELS
(A) and (B) by hand.
(4) Loosen the SCREWS. (marked (5) Disconnect the PLUGS (marked (6) Remove the AMPLIFIER AS$ EM-
from (a) to (d)) by using a phillips- (a) to (c) carefully by hand. BLY (A) by slowly lifting it from
headed screw driver. the CASE (C) as shown in pict ure.
