Akai MPC 2500 Operator's Manual Addendum

MPC 2500 Manual Addendum v1.1
7
Improvements to USB connectivity
Now, the MPC 2500 does not have to be disconnected a computer before leaving the
USB page. However, due to the differences between Macintosh and Windows
computers, it is necessary to eject the disk mounted on the Macintosh before leaving
the USB page.

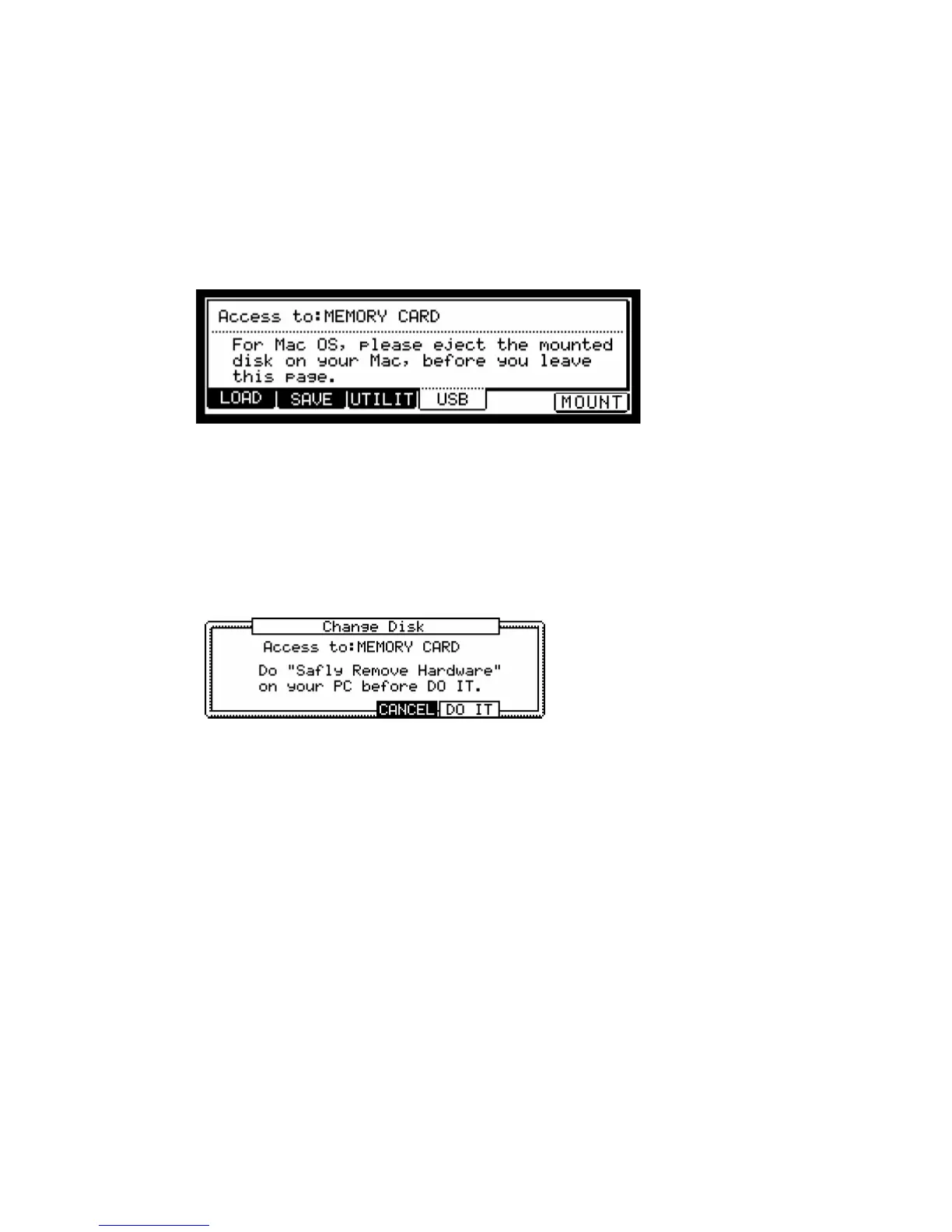

To change the device your computer will have access to via USB, do the following:
1. From the USB page, select the ACCESS TO field.
2. In the ACCESS TO field, select the desired device.
The CHANGE DISK page will appear.
For Windows users, it is recommended that you perform a "Safely Remove
Hardware" before pressing DO IT.
3. Press [F5] (DO IT) to change devices.
In most cases, your computer will detect the new drive automatically, but if for some
reason the drive is not detected, press [F6] (MOUNT) from the USB page.

Akai MPC 2500 Specifications

General

Polyphony	32 voices
Sampling Frequency	44.1 kHz
Sampling Bit Depth	16-bit
Maximum RAM	128 MB
Sequencer	Yes
Type	Sampler/Sequencer
Sequencer Resolution	96 ppq
Digital I/O	S/PDIF In/Out
Power Supply	Internal
Pads	16 velocity and pressure-sensitive
Storage	CompactFlash
Effects	4 internal effects processors
MIDI	2 In, 4 Out
Display	240 x 64 pixel LCD
Analog Outputs	8
Sample Memory	128 MB max
Audio Outputs	8
Audio Inputs	2
Weight	14.5 lbs
