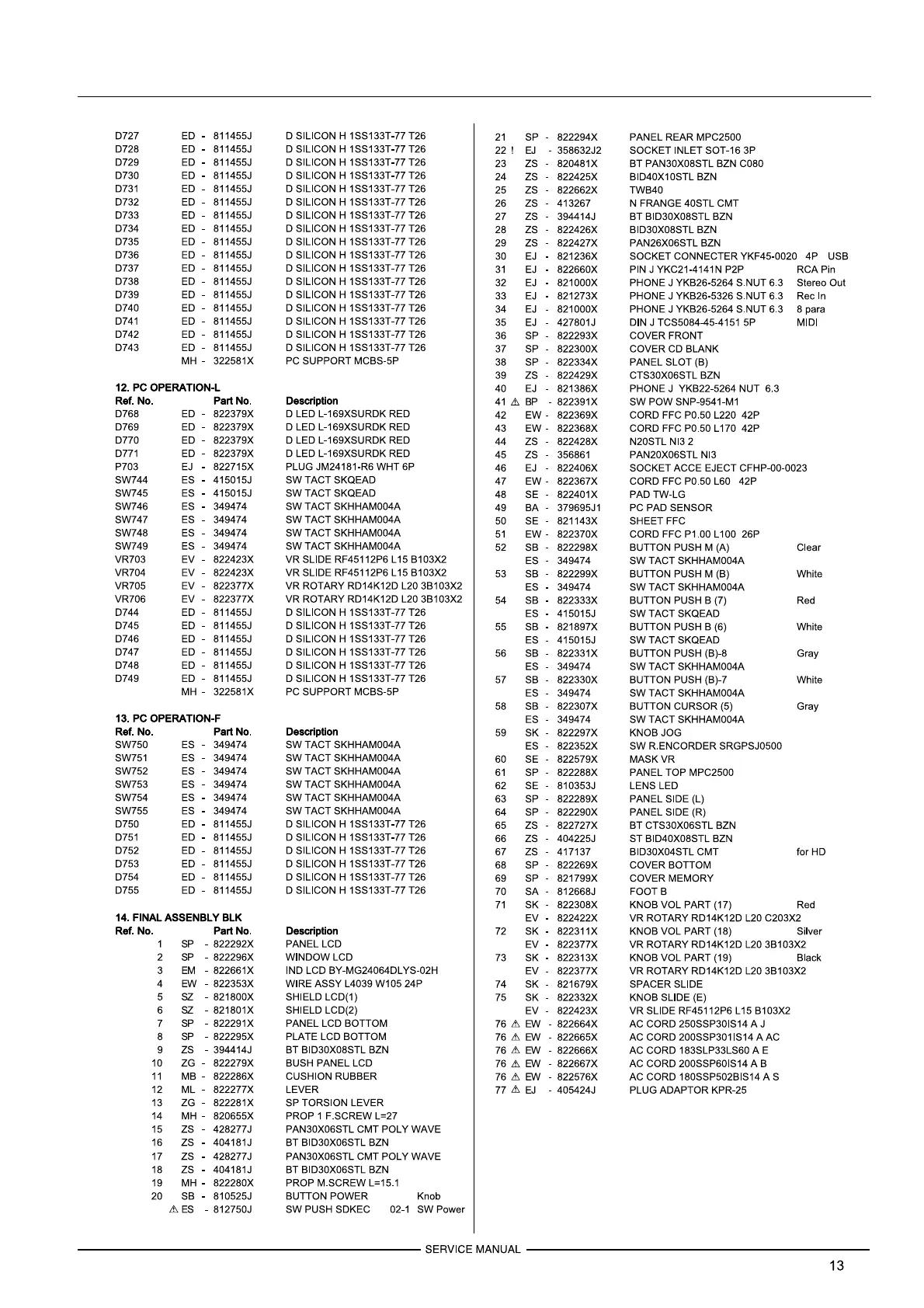

Akai MPC 2500 Service Manual

D727 ED - 811455J
D SILICON H 1SS133T-77 T26
21 SP - 822294X PANEL REAR MPC2500
D728
ED - 811455J
D SILICON H 1SS133T-77 T26
22
! EJ - 358632J2
SOCKET INLET SOT-16 3P
D729
ED - 811455J
D SILICON H 1SS133T-77 T26
23 ZS 820481X BT PAN30X0BSTL BZN
COBO
D730 ED - 811455J
D SILICON H 1SS133T-77 T26
24 ZS 822425X BID40X10STL BZN
D731 ED - 811455J
D SILICON H 1SS133T-77 T26
25 ZS 822662X TWB40
D732
ED - 811455J
D SILICON H 1SS133T-77 T26
26 ZS 413267 N FRANGE 40STL GMT
D733
ED - 811455J
D SILICON H 1SS133T-77 T26
27 ZS 394414J BT BID30X0BSTL BZN
D734
ED - 811455J
D SILICON H 1SS133T-77 T26
28 ZS 822426X BID30X0BSTL BZN
D735
ED - 811455J
D SILICON H 1SS133T-77 T26
29 ZS 822427X PAN26X06STL BZN
D736
ED - 811455J
D SILICON H 1SS133T-77 T26
30
EJ 821236X
SOCKET CONNECTER YKF45-0020
4P USB
D737
ED - 811455J
D SILICON H 1SS133T-77 T26
31 EJ 822660X PIN J YKC21-4141N P2P RCA Pin
D738 ED - 811455J
D SILICON H 1SS133T-77 T26
32
EJ 821000X
PHONE J YKB26-5264 S.NUT 6.3
Stereo Out
D739
ED - 811455J
D SILICON H 1SS133T-77 T26
33
EJ 821273X PHONE J YKB26-5326 S.NUT 6.3 Rec In
D740 ED - 811455J
D SILICON H 1SS133T-77 T26
34
EJ 821000X
PHONE J YKB26-5264 S.NUT 6.3
8 para
D741 ED - 811455J
D SILICON H 1SS133T-77 T26
35
EJ 427801J
DIN J TCS5084-45-4151 5P MIDI
D742
ED - 811455J
D SILICON H 1SS133T-77 T26
36 SP 822293X COVER FRONT
D743
ED - 811455J
D SILICON H 1SS133T-77 T26
37 SP 822300X COVER CD BLANK
MH - 322581X
PC SUPPORT MCBS-5P
38 SP 822334X PANEL SLOT (B)
39 ZS 822429X CTS30X06STL BZN
12. PC OPERATION-L
40 EJ 821386X
PHONE J YKB22-5264 NUT 6.3
Ref. No. Part No. Description
41 Lt. BP - 822391X
SW POW SNP-9541-M1
D768
ED - 822379X
D LED L-169XSURDK RED
42
EW-
822369X CORD FFC P0.50 L220 42P
D769
ED - 822379X
D LED L-169XSURDK RED
43
EW-
822368X CORD FFC P0.50 L 170 42P
D770
ED - 822379X
D LED L-169XSURDK RED
44 ZS 822428X N20STL Nl3 2
D771 ED - 822379X
D LED L-169XSURDK RED
45 ZS - 356861 PAN20X06STL Nl3
P703
EJ 822715X
PLUG JM24181-R6 WHT 6P
46
EJ - 822406X
SOCKET ACCE EJECT CFHP-00-0023
SW744 ES 415015J SW TACT SKQEAD
47
EW-
822367X CORD FFC P0.50 L60 42P
SW745 ES 415015J SW TACT SKQEAD
48 SE - 822401X
PADTW-LG
SW746 ES 349474 SW TACT SKHHAM004A
49 BA - 379695J1 PC PAD SENSOR
SW747 ES 349474 SW TACT SKHHAM004A
50 SE - 821143X SHEET FFC
SW748 ES 349474 SW TACT SKHHAM004A
51
EW-
822370X CORD FFC P1.00 L 100 26P
SW749 ES 349474 SW TACT SKHHAM004A
52 SB 822298X BUTTON PUSH M (A) Clear
VR703 EV - 822423X VR SLIDE RF45112P6 L 15 B103X2
ES 349474
SW TACT SKHHAM004A
VR704 EV - 822423X VR SLIDE RF45112P6 L 15 B103X2
53 SB 822299X BUTTON PUSH M (B) White
VR705 EV - 822377X VR ROTARY RD14K12D L20 3B103X2
ES 349474
SW TACT SKHHAM004A
VR706 EV - 822377X VR ROTARY RD14K12D L20 3B103X2
54 SB 822333X BUTTON PUSH B (7) Red
D744
ED - 811455J
D SILICON H 1SS133T-77 T26
ES 415015J
SW TACT SKQEAD
D745
ED - 811455J
D SILICON H 1SS133T-77 T26
55 SB 821897X BUTTON PUSH B (6) White
D746
ED - 811455J
D SILICON H 1SS133T-77 T26
ES 415015J
SW TACT SKQEAD
D747
ED - 811455J
D SILICON H 1SS133T-77 T26
56 SB 822331X BUTTON PUSH (B)-8 Gray
D748
ED - 811455J D SILICON H 1SS133T-77 T26
ES 349474
SW TACT SKHHAM004A
D749
ED - 811455J
D SILICON H 1SS133T-77 T26
57 SB 822330X BUTTON PUSH (B)-7 White
MH - 322581X
PC SUPPORT MCBS-5P
ES 349474
SW TACT SKHHAM004A
58 SB 822307X BUTTON CURSOR (5) Gray
13. PC OPERATION-F
ES 349474 SW TACT SKHHAM004A
Ref. No. Part No. Description
59 SK - 822297X KNOB JOG
SW750 ES - 349474 SW TACT SKHHAM004A
ES - 822352X
SW R.ENCORDER SRGPSJ0500
SW751 ES - 349474 SW TACT SKHHAM004A
60 SE - 822579X
MASKVR
SW752 ES 349474 SW TACT SKHHAM004A
61 SP 822288X PANEL TOP MPC2500
SW753 ES 349474 SW TACT SKHHAM004A
62 SE 810353J LENS LED
SW754 ES 349474 SW TACT SKHHAM004A
63 SP 822289X PANEL SIDE (L)
SW755 ES 349474 SW TACT SKHHAM004A
64 SP 822290X PANEL SIDE (R)
D750
ED - 811455J D SILICON H 1SS133T-77 T26
65 ZS 822727X BT CTS30X06STL BZN
D751 ED - 811455J
D SILICON H 1SS133T-77 T26
66 ZS 404225J ST BID40X0BSTL BZN
D752
ED - 811455J D SILICON H 1SS133T-77 T26
67 ZS 417137 BID30X04STL GMT for HD
D753
ED - 811455J
D SILICON H 1SS133T-77 T26
68 SP 822269X COVER BOTTOM
D754
ED - 811455J D SILICON H 1SS133T-77 T26
69 SP 821799X COVER MEMORY
D755
ED - 811455J
D SILICON H 1SS133T-77 T26
70
SA - 812668J FOOTB
71 SK - 822308X KNOB VOL PART (17) Red
14. FINAL ASSENBL Y BLK EV - 822422X VR ROTARY RD14K12D L20 C203X2
Ref. No. Part No. Description
72 SK - 822311X KNOB VOL PART (18) Silver
1
SP - 822292X PANEL LCD
EV -
822377X
VR ROTARY RD14K12D L20 3B103X2
2
SP - 822296X WINDOW LCD
73
SK - 822313X KNOB VOL PART (19) Black
3
EM - 822661X IND LCD BY-MG24064DL YS-02H
EV - 822377X
VR ROTARY RD14K12D L20 3B103X2
4
EW - 822353X WIRE ASSY L4039 W105 24P
74
SK - 821679X SPACER SLIDE
5
sz
- 821800X SHIELD LCD(1)
75
SK - 822332X KNOB SLIDE (E)
6
sz - 821801X SHIELD LCD(2)
EV - 822423X
VR SLIDE RF45112P6 L 15 B103X2
7
SP - 822291X PANEL LCD BOTTOM
76
Lt. EW
- 822664X AC CORD 250SSP30IS14 A J
8
SP - 822295X PLATE LCD BOTTOM
76
Lt. EW - 822665X AC CORD 200SSP301 IS14 A AC
9
ZS - 394414J BT BID30X0BSTL BZN
76
Lt. EW
- 822666X AC CORD 183SLP33LS60 A E
10 ZG - 822279X BUSH PANEL LCD
76
Lt. EW - 822667X AC CORD 200SSP60IS14 AB
11 MB - 822286X CUSHION RUBBER
76
Lt. EW
- 822576X AC CORD 180SSP502BIS14 AS
12 ML - 822277X LEVER 77 Lt. EJ
- 405424J
PLUG ADAPTOR KPR-25
13 ZG - 822281X SP TORSION LEVER
14 MH - 820655X
PROP 1 F.SCREW
L=27
15 ZS 428277J PAN30X06STL GMT POLY WAVE
16 ZS 404181J BT BID30X06STL BZN
17 ZS 428277J PAN30X06STL GMT POLY WAVE
18 ZS 404181J BT BID30X06STL BZN
19 MH - 822280X PROP M.SCREW
L=15.1
20 SB 810525J BUTTON POWER Knob
Lt. ES - 812750J SW PUSH SDKEC 02-1 SW Power
SERVICE MANUAL
13

Akai MPC 2500 Specifications

General

Polyphony	32 voices
Sampling Frequency	44.1 kHz
Sampling Bit Depth	16-bit
Maximum RAM	128 MB
Sequencer	Yes
Type	Sampler/Sequencer
Sequencer Resolution	96 ppq
Digital I/O	S/PDIF In/Out
Power Supply	Internal
Pads	16 velocity and pressure-sensitive
Storage	CompactFlash
Effects	4 internal effects processors
MIDI	2 In, 4 Out
Display	240 x 64 pixel LCD
Analog Outputs	8
Sample Memory	128 MB max
Audio Outputs	8
Audio Inputs	2
Weight	14.5 lbs
