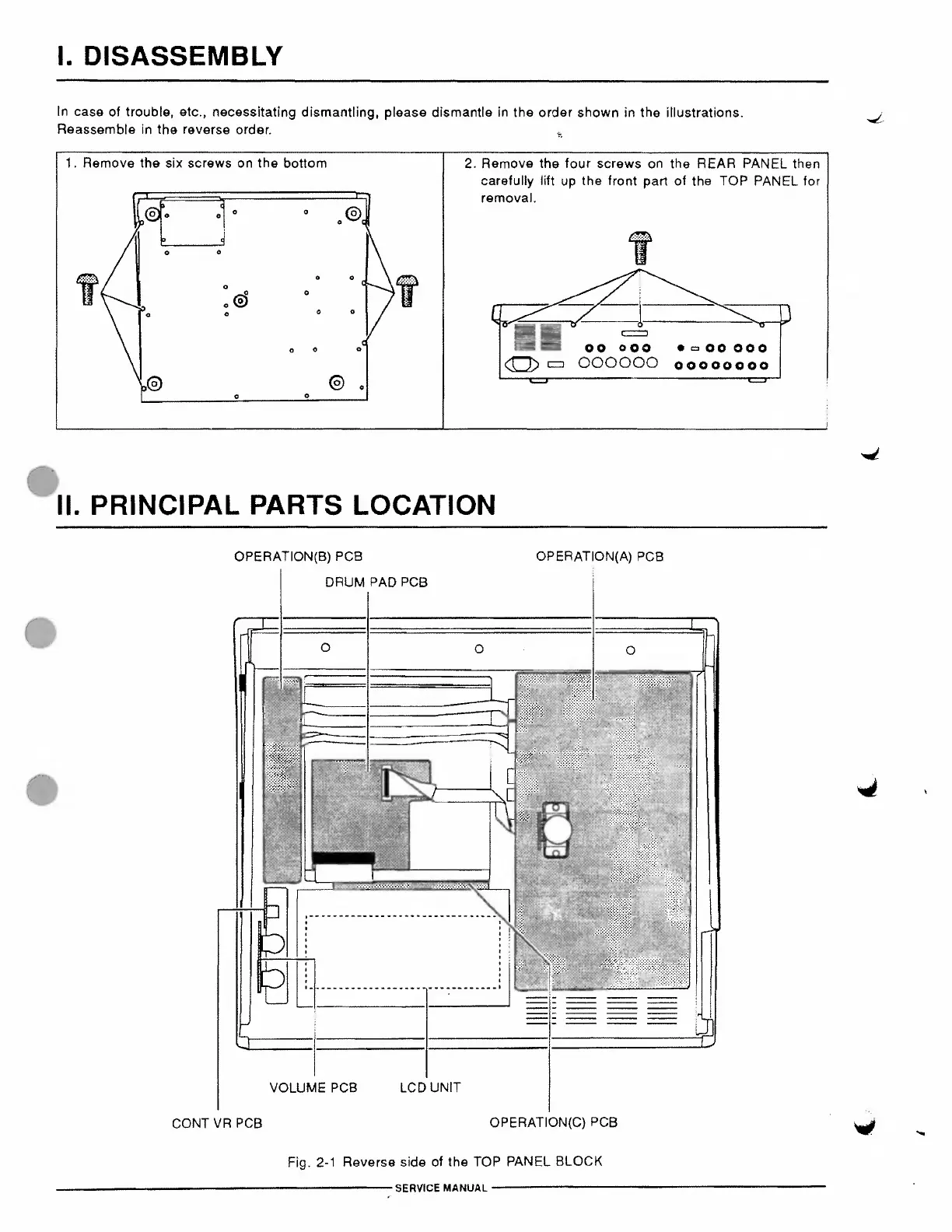

І. DISASSEMBLY
In case of trouble, etc., necessitating dismantling, please dismantle in the order shown in the illustrations.
Reassemble in the reverse order. 5
1. Remove the six screws on the bottom 2. Remove the four screws on the REAR PANEL then
carefully lift up the front part of the TOP PANEL for
removal.
BE
nl оо ооо • ос ооо
Cp = ОООООО оооооооо
|. PRINCIPAL PARTS LOCATION
OPERATION(B) PCB OPERATION(A) PCB
DRUM PAD PCB |
VOLUME РСВ LCD UNIT
CONT VR PCB OPERATION(C) PCB
Fig. 2-1 Reverse side of the TOP PANEL BLOCK
SERVICE MANUAL
