Akai MPD226 User Guide

4

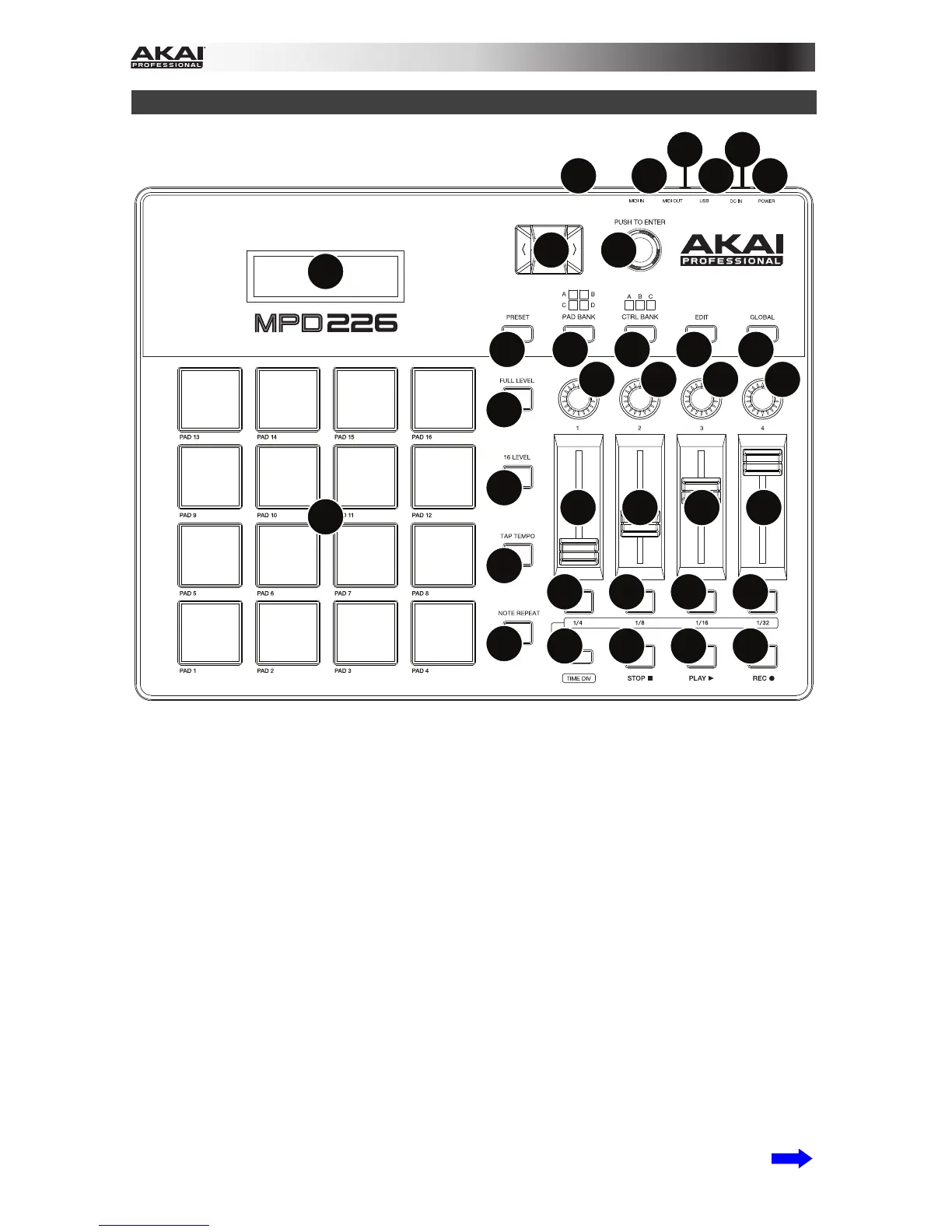

Features
3
4
5
6
7
9
8
2
1
10
13 13 13 13
14
16
17
18
19
20
21
23
22
24 24 24
14 14 14
15 15 15 15
11 12
1. USB Port: Use a standard USB cable to connect this USB port to your computer. The
computer’s USB port provides ample power to MPD226. If you connect it to a USB hub,
make sure it is a powered hub. This connection is also used to send and receive MIDI
data to and from your computer.
You can also power MPD226 by connecting this USB port to a power outlet using a
standard USB charger (sold separately). If you do this, set any relevant controls to send
their MIDI messages out of the MIDI Out. Any controls set to transmit only over the USB
Port will not be sent to a device connected to the MIDI Out.
When using MPD226 with external MIDI equipment:
• If an external device is connected to the MIDI Out, your computer can send MIDI
messages out along this path: Computer  MPD226  External Device.
• If an external device is connected to the MIDI In, the external device sends MIDI
messages in along this path: External Device  MPD226  Computer. MIDI
messages can then be sent to an external device via the MIDI Out, but they must
pass through the computer first.
2. Power Input: Connect this power input to a power outlet using an optional power
adapter (6V DC, 1A, center-positive, sold separately). Alternatively, if you want to use
MPD226 to control an external MIDI device and without a computer connection, you can
connect MPD226’s USB Port to a power outlet using a standard USB charger (sold
separately).

Akai MPD226 Specifications

General

Current	1 A
Input voltage	6 V
Power supply type	AC
Product color	Black
Number of controls	36
Drum pads backlight	Yes
Number of drum pads	16
Number of mixer channels	4 channels
USB version	2.0
USB connector type	USB Type-B
USB ports quantity	1
Minimum RAM	1 GB
Minimum processor speed	1.25 GHz

Weight and Dimensions

Depth	254 mm
Width	333 mm
Height	48 mm
Weight	1300 g
