Akai MPD32

DISASSEMBLY PROCEDURES

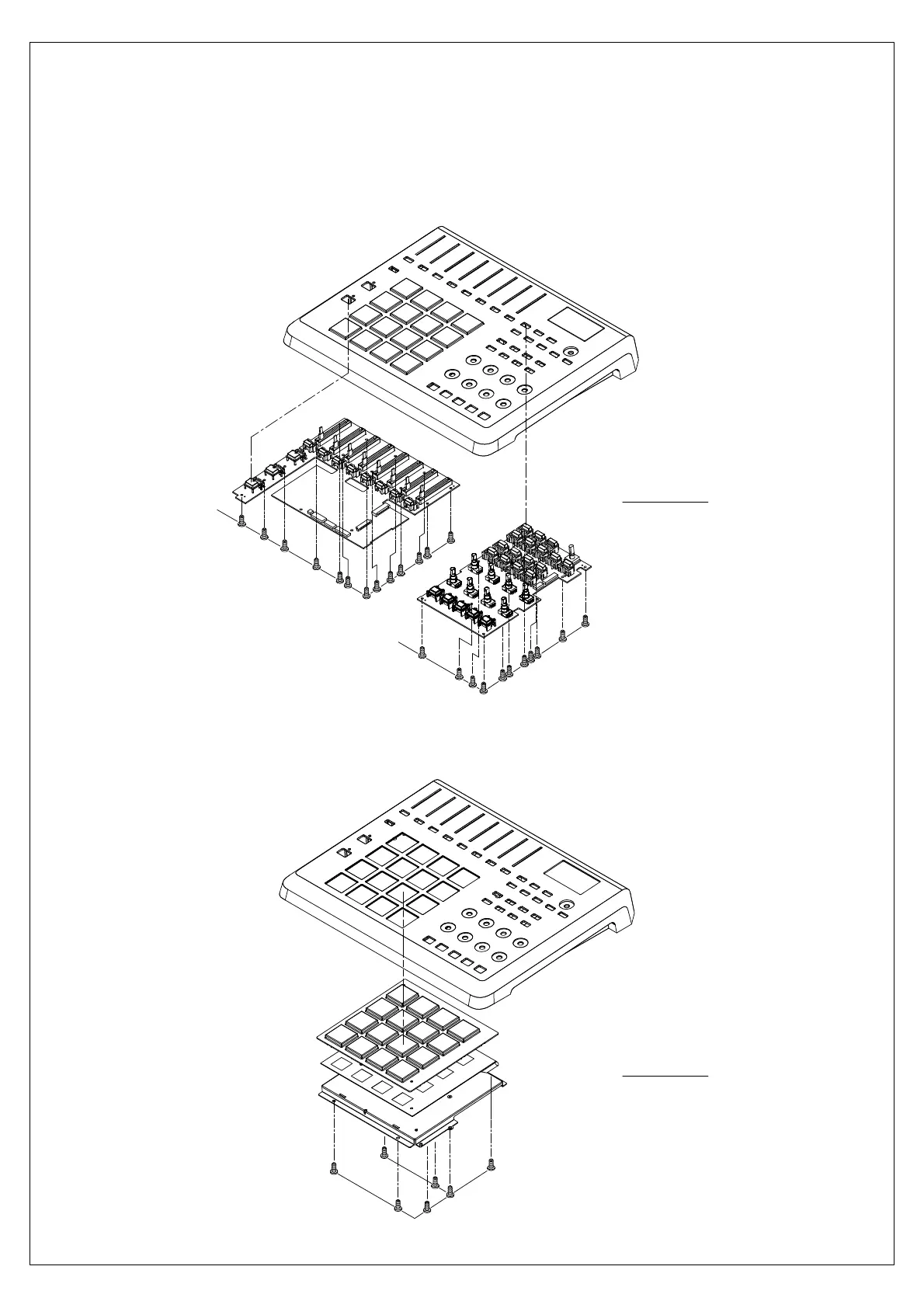

3. REMOVAL OF PCB FROM TOP PANEL (Fig. 3)
(a) Unplug all connector from PCB
(Fig. 3)
(a)
4. REMOVAL OF KEY PAD ASS'Y/TOP PANEL (Fig. 4)
(a) Remove all screws at Pad Holder/Top Panel.
Remove all screw from PCB/Top Panel.
(a)
(a)
(a)
(a)
(a)
(a)
(a)
(Fig. 4)
