DISASSEMBLY PROCEDURES
1.
DISASSEMBLE THE BOTTOM COVER.
(A)REMOVE 30 SCREWS FROM THE BOTTOM COVER.
(B)(C)(D)(E) REMOVE 4 CABLES.

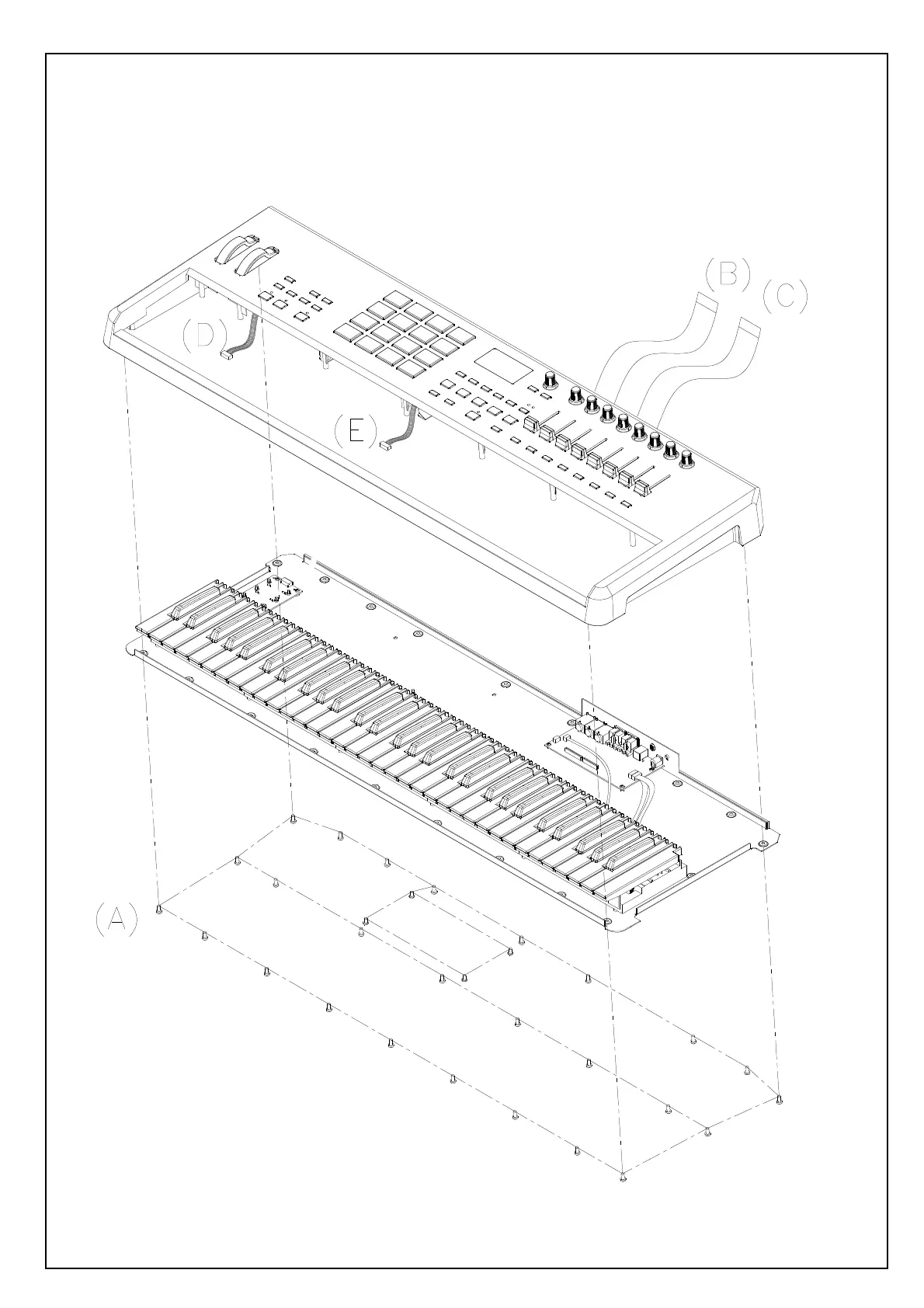

(Fig1)
