Akai S900

Vill. PARTS LIST

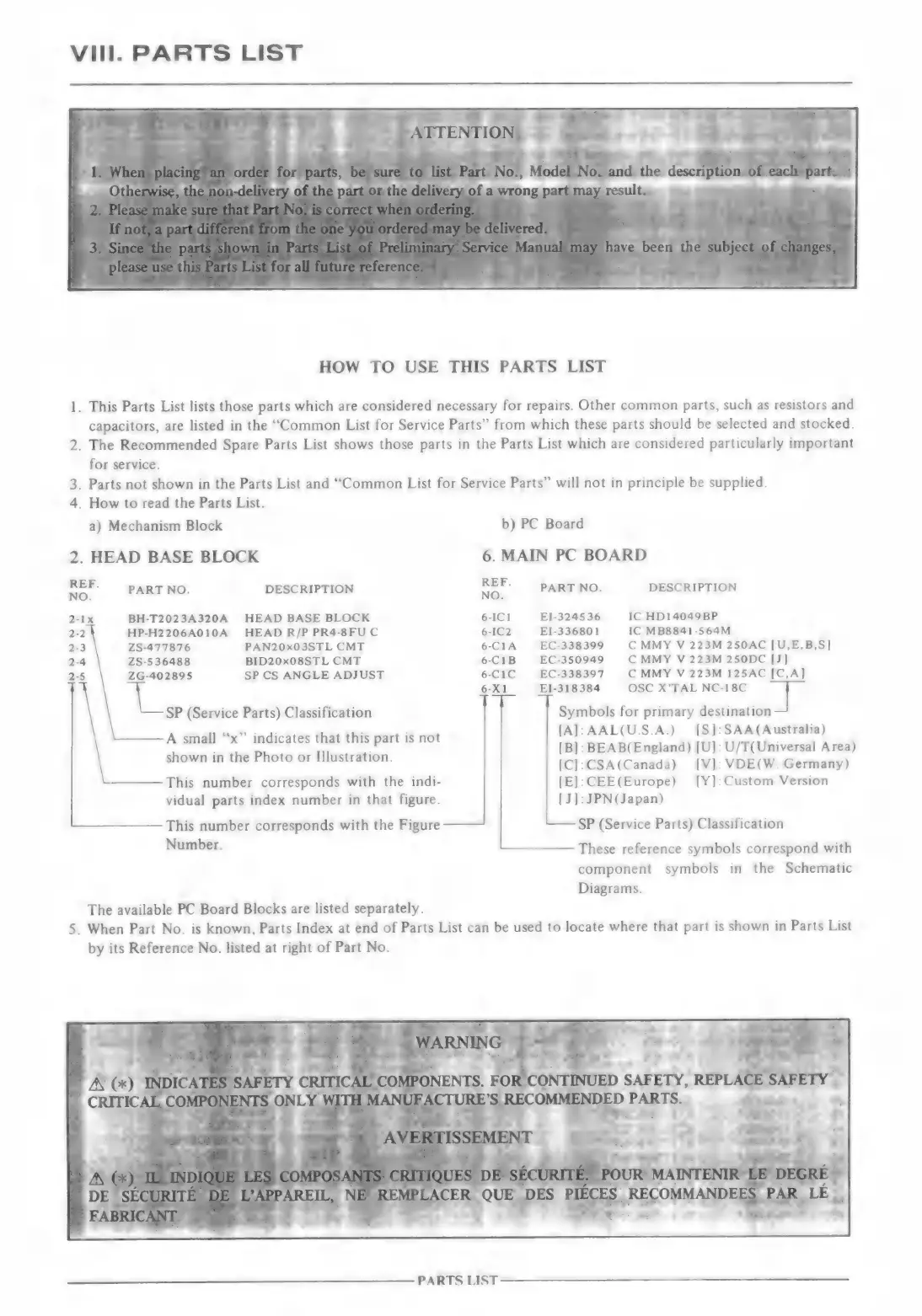

HOW TO USE THIS PARTS LIST
1. This Parts List lists those parts which are considered necessary for repairs. Other common parts, such as resistors and
capacitors, are listed in the “Common List for Service Parts” from which these parts should be selected and stocked.
2. The Recommended Spare Parts List shows those parts in the Parts List which are considered particularly important
for service.
3. Parts not shown in the Parts List and “Common List for Service Parts” will not in principle be supplied.
4. How to read the Parts List.
a) Mechanism Block b) PC Board
2. HEAD BASE BLOCK 6. MAIN PC BOARD
on PART NO. DESCRIPTION Se PART NO. DESCRIPTION
2-1x BH-T2023A320A HEAD BASE BLOCK 6-IC1 EI-324536 IC HD14049BP
2-2 HP-H2206A010A HEAD R/P PR4-8FU C 6-IC2 EI-336801 IC MB8841-564M
2-3 ZS-477876 PAN20x03STL CMT 6-C1A _EC-338399 CMMY V 223M 2S50AC [U,E,B,S]
2-4 ZS-536488 BID20x08STL CMT 6-C1B EC-350949 CMMY V 223M 2S50DC [J]
2-5
ZG-402895
SP
CS
ANGLE
ADJUST
6-C1C
EC-338397.
CMMY
V
223M
125AC[C,A]
6-X1
EI-318384
OSC
X’TAL
NC-18C
SP (Service Parts) Classification Symbols for primary destination
[A]: AAL(U.S.A.) [S]:SAA(Australia)
A small “x” indicates that this part is not
{[B]: BEAB(England) [U]: U/T( Universal Area)
shown in the Photo or Illustration. [C]:CSA(Canada) [V]: VDE(W. Germany)
This number corresponds with the indi- [E]:CEE(Europe) [Y]:Custom Version
vidual parts index number in that figure. [J]: JPN(Japan)
This number corresponds with the Figure SP (Service Parts) Classification
Number. These reference symbols correspond with
component symbols in the Schematic
Diagrams.
The available PC Board Blocks are listed separately.
5.
When
Part
No.
is
known,
Parts
Index
at
end
of
Parts
List
can
be
used
to
locate
where
that
part
is
shown
in
Parts
List
by its Reference No. listed at right of Part No.
PARTS LIST
