Akai S900

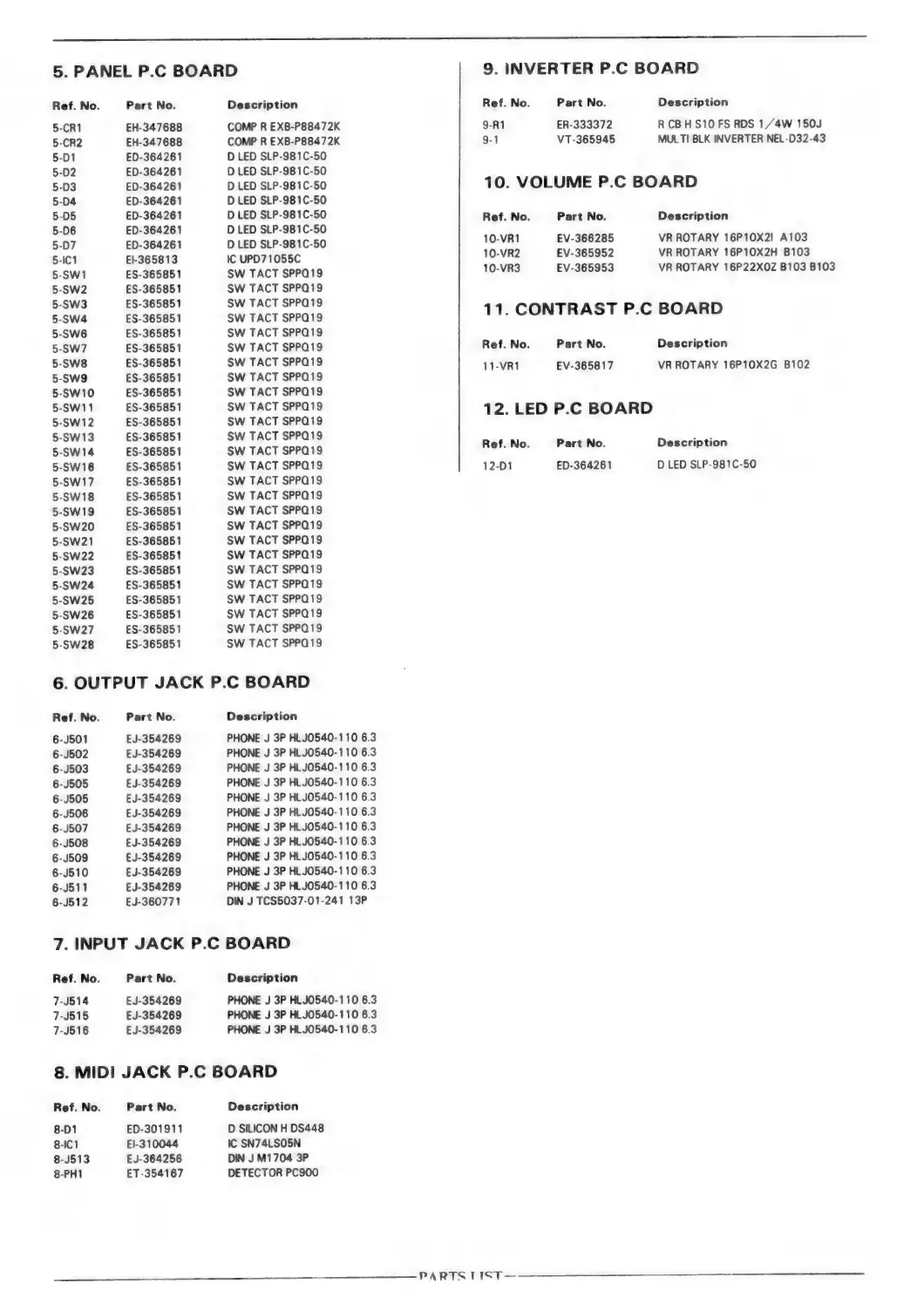

5. PANEL P.C BOARD
Ref. No. Part No. Description
5-CR1 EH-347688 COMP R EXB-P88472K
5-CR2 EH-347688 COMP R EXB-P88472K
5-D1 ED-364261 D LED SLP-981C-50
5-D2 ED-364261 D LED SLP-981C-50
5-D3 ED-364261 D LED SLP-981C-50
5-D4 ED-364261 D LED SLP-981C-50
5-D5 ED-364261 D LED SLP-981C-50
5-D6 ED-364261 D LED SLP-981C-50
5-D7 ED-364261 D LED SLP-981C-50
5-IC1 EI-365813 IC UPD71055C
5-SW1 ES-365851 SW TACT SPPQ19
5-SW2 ES-365851 SW TACT SPPQ19
5-SW3 ES-365851 SW TACT SPPQ19
5-SW4 ES-365851 SW TACT SPPQ19
5-SW6 ES-365851 SW TACT SPPQ19
5-SW7 ES-365851 SW TACT SPPQ19
5-SW8 ES-365851 SW TACT SPPQ19
5-SW9 ES-365851 SW TACT SPPQ19
5-SW10 ES-365851 SW TACT SPPQ19
5-SW11 ES-365851 SW TACT SPPQ19
5-SW12 ES-365851 SW TACT SPPQ19
5-SW13 ES-365851 SW TACT SPPQ19
5-SW14 ES-365851 SW TACT SPPQ19
5-SW16 ES-365851 SW TACT SPPQ19
5-SW17 ES-365851 SW TACT SPPQ19
5-SW18 ES-365851 SW TACT SPPQ19
5-SW19 ES-365851 SW TACT SPPQ19
5-SW20 ES-365851 SW TACT SPPQ19
5-SW21 ES-365851 SW TACT SPPQ19
5-SW22 ES-365851 SW TACT SPPQ19
5-SW23 ES-365851 SW TACT SPPQ19
5-SW24 ES-365851 SW TACT SPPQ19
5-SW25 ES-365851 SW TACT SPPQ19
5-SW26 ES-365851 SW TACT SPPQ19
5-SW27 ES-365851 SW TACT SPPQ19
5-SW28 ES-365851 SW TACT SPPQ19
6. OUTPUT JACK P.C BOARD
Ref. No. Part No. Description
6-J501 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J502 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J503 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J505 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J505 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J506 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J507 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J508 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J509 EJ-354269 PHONE J 3P HLJO0540-110 6.3
6-J510 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J511 EJ-354269 PHONE J 3P HLJO540-110 6.3
6-J512 EJ-360771 DIN J TCS5037-01-241 13P
7. INPUT JACK P.C BOARD
Ref. No. Part No. Description
7-J514 EJ-354269 PHONE J 3P HLJO540-110 6.3
7-J515 EJ-354269 PHONE J 3P HLJO540-110 6.3
7-J516 EJ-354269 PHONE J 3P HLJO540-110 6.3
8. MIDI JACK P.C BOARD
Ref. No. Part No. Description
8-D1 ED-301911 D SILICON H DS448
8-IC1 El-310044 IC SN74LSO5N
8-J513 EJ-364256 DIN J M1704 3P
8-PH1 ET-354167 DETECTOR PC900
9. INVERTER P.C BOARD
Ref. No. Part No. Description
9-R1 ER-333372 R CBHS10 FS RDS 1/4W 150J
9-1 VT-365945 MULTI BLK INVERTER NEL-D32-43
10. VOLUME P.C BOARD
Ref. No. Part No. Description
10-VR1 EV-366285 VR ROTARY 16P10X2I A103
10-VR2 EV-365952 VR ROTARY 16P10X2H B103
10-VR3 EV-365953 VR ROTARY 16P22X0Z B103 B103
11. CONTRAST P.C BOARD
Ref. No. Part No. Description
11-VR1 EV-365817 VR ROTARY 16P10X2G B102
12. LED P.C BOARD
Ref. No. Part No. Description
12-D1 ED-364261 D LED SLP-981C-50
PARTS FIST —
