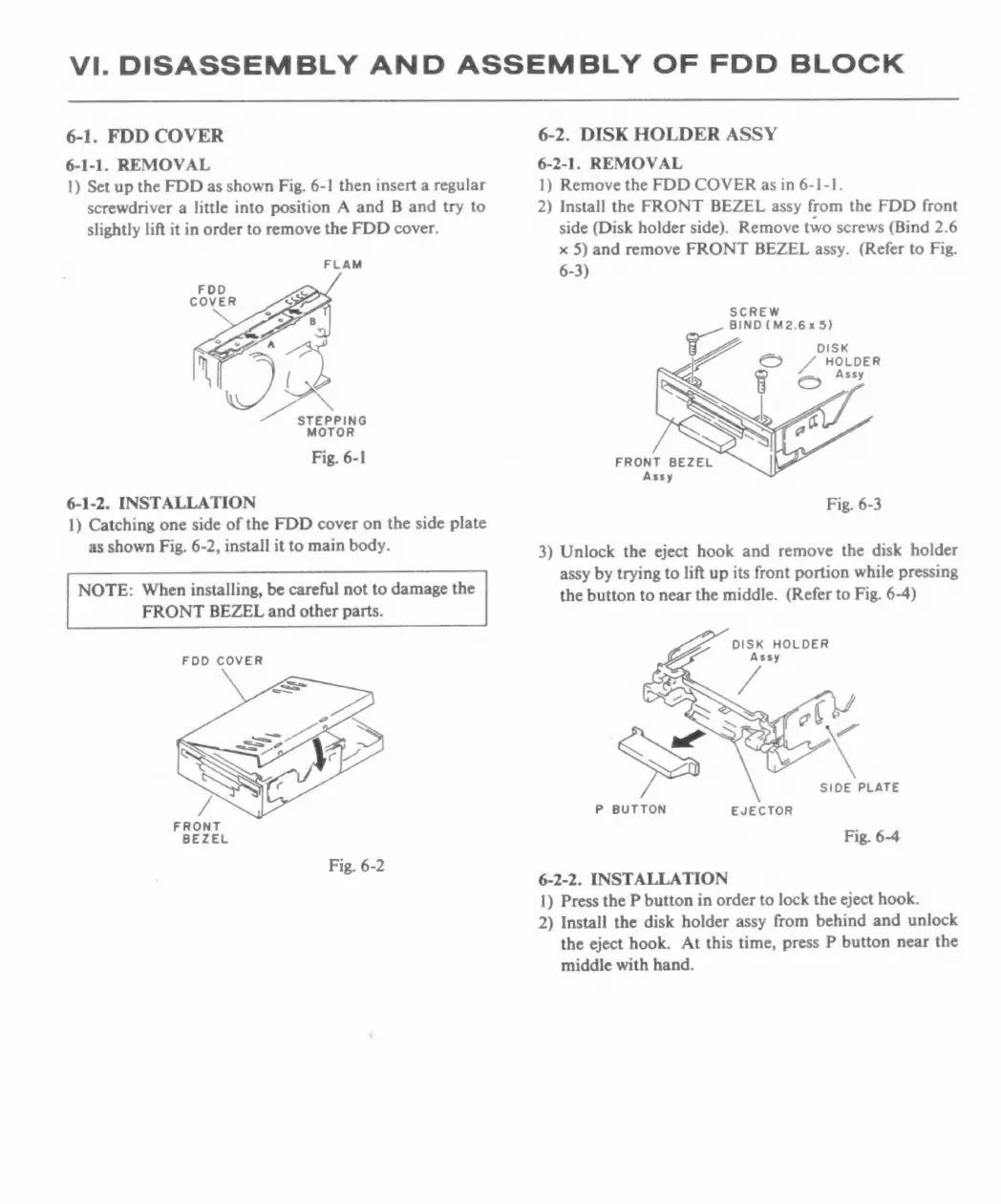

VI. DISASSEMBLY AND ASSEMBLY OF FDD BLOCK
6-1. FDD COVER
6-1-1. REMOVAL
1) Set up the FDD as shown Fig. 6-1 then insert a regular
screwdriver a little into position A and B and try to
slightly lift it in order to remove the FDD cover.
FLAM
i gous
MOTOR
Fig. 6-1
6-1-2. INSTALLATION
1) Catching one side of the FDD cover on the side plate
as shown Fig. 6-2, install it to main body.
NOTE: When installing, be careful not to damage the
FRONT BEZEL and other parts.
FOD COVER
Fig. 6-2
6-2. DISK HOLDER ASSY
6-2-1. REMOVAL
1) Remove the FDD COVER as in 6-1-1.
2) Install the FRONT BEZEL assy from the FDD front
side (Disk holder side). Remove two screws (Bind 2.6
x 5) and remove FRONT BEZEL assy. (Refer to Fig.
6-3)
SCREW
BIND (M2.6x 5)
e / HOLDER
FRONT BEZEL
Assy
Fig. 6-3
3) Unlock the eject hook and remove the disk holder
assy by trying to lift up its front portion while pressing
the button to near the middle. (Refer to Fig. 6-4)
SIDE PLATE
EJECTOR
P BUTTON
Fig. 6-4
6-2-2. INSTALLATION
1) Press the P button in order to lock the eject hook.
2) Install the disk holder assy from behind and unlock
the eject hook. At this time, press P button near the
middle with hand.
