User manual
4
Before Using the Product
This section provides detailed instructions on the product and its accessories.
1.1 Front Panel
1 POWER BUTTON
Push to power on/off the main power supply.
2 MENU BUTTON
Displays the main menu.
3 OK
BUTTON
Selects a menu, or confirms the selected operation. Also displays the channel li
st
while watching a program.
4 CH+/CH- BUTTON
Moves the TV/radio channel up or down.
5 VOL+/VOL- BUTTON
Adjusts the audio volume.
6 ST
N
A
DBY INDICATOR
The LED will turnred only when the receiver is in standby mode.
7. OPERATION INDICATOR
The LED will turn green only when the receiver is in operation mode.
8. LED DISPLAY WINDOW
Displays the current channel number.
9. USB port in the flank
It is used to software upgrade and media playback.

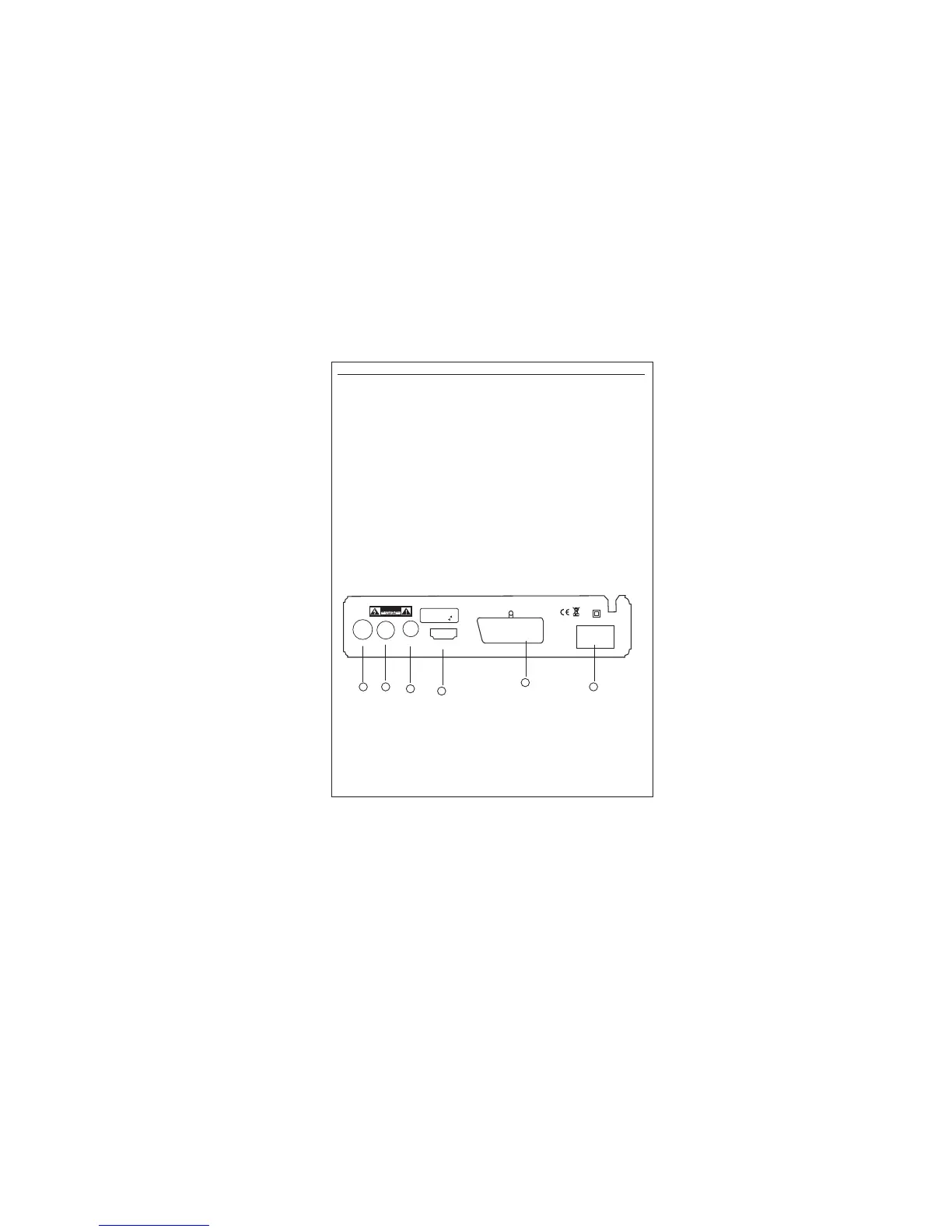

1.2 Rear Panel
1. ANT-IN
Connects the aerial cable.
2. ANT-OUT
Connects to the RF IN of the TV using a RF cable.
3. SCART
Connects to the TV using an SCART cable
1
2
6
5
CAUTION
HD OUT
COAXI AL
RF IN
~90-24 0V
50/ 60Hz
HD DVB-T2 RECEIVER
POWER CONSUMPTION: 10W
~90-240V 50/60HZ
STANDBY CONSUMPTION: 1W
RF OUT
SCART
ON
OFF
3
4
