Akai VS-X9EGN

|
|
j
i
i
{

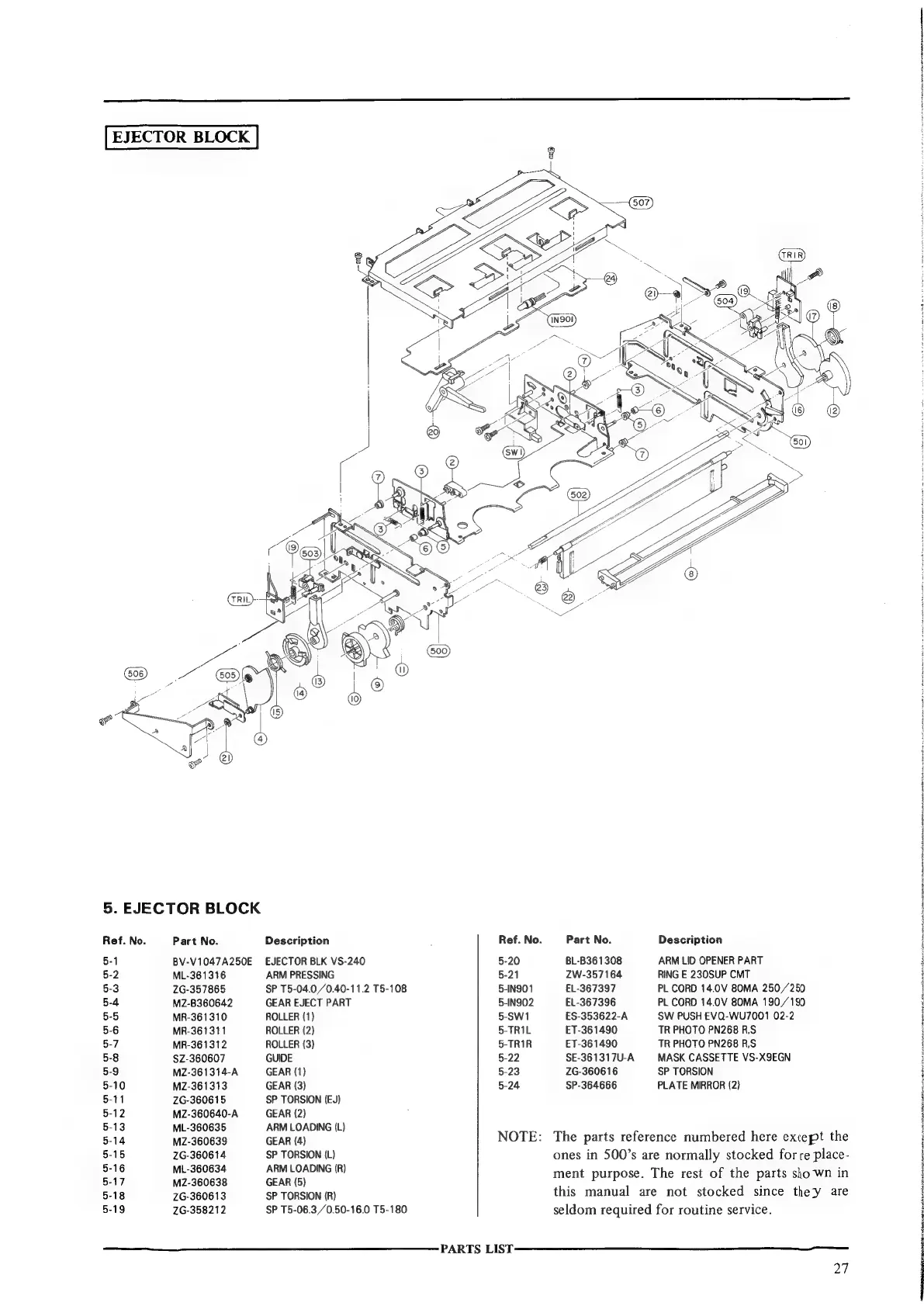

EJECTOR BLOCK
5. EJECTOR BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
5-1 BV-V1047A250E EJECTOR BLK VS-240 5-20 BL-B361308 ARM LID OPENER PART
5-2 ML-361316 ARM PRESSING 5-21 2W-357164 RING E 230SUP CMT
5-3 2G-357865 SP T5-04.0,/0.40-11.2 T5-108 5-IN9O1 EL-367397 PL CORD 14.0V 80MA 250/250
5-4 MZ-B8360642 GEAR EJECT PART 5-IN902 EL-367396 PL CORD 14.0V 80MA 190/190
5-5 MR-361310 ROLLER (1) 5-SW1 ES-353622-A SW PUSH EVQ-WU7001 02-2
5-6 MR-361311 ROLLER (2) 5-TRIL ET-361490 TR PHOTO PN268 R,S
5-7 MR-361312 ROLLER (3) 5-TRIR ET-361490 TR PHOTO PN268 R,S
5-8 $Z-360607 GUIDE 5-22 SE-361317U-A | MASK CASSETTE VS-XSEGN
5-9 MZ-361314-A GEAR (1) 5-23 2G-360616 SP TORSION
5-10 MZ-361313 GEAR (3) 5-24 SP-364666 PLATE MIRROR (2}
5-11 Z2G-360615 SP TORSION (EJ)
5-12 MZ-360640-A GEAR (2)
5-13 ML-360635 ARM LOADING (L)
5-14 Mz-360639 GEAR (4) NOTE: The parts reference numbered here except the
5-15 2G-360614 SP TORSION (L) ones in 500’s are normally stocked for re place-
a
ene
ear
(R)
ment
purpose.
The
rest
of
the
parts
sho
wn
in
5-18 27G-360613 SP TORSION (R) this manual are not stocked since they are
5-19 2G-358212 SP T5-06.3 /0.50-16.0 T5-180 seldom required for routine service.
ARG OO eee
27
