Akai VS-X9EGN

CIRCUIT
VIO073B5050

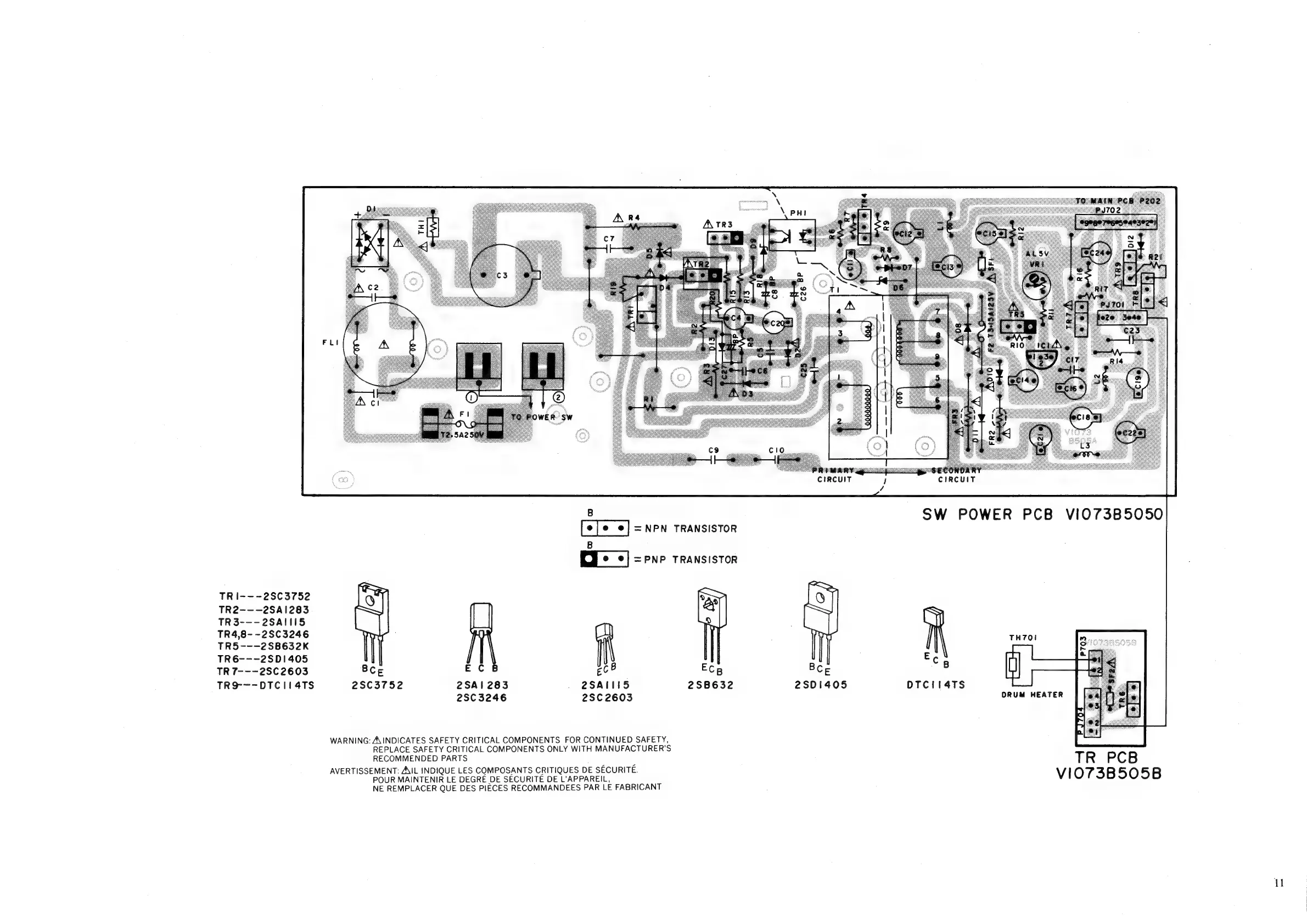

SW POWER PCB
[e[* ¢]=NPN TRANSISTOR
PNP TRANSISTOR
TRI---28C3752
Ry
SS,
TR2--—-—2SA1283
:
TR3---2SAIl115
TR4,8- -2SC3246
TR5---2SB632K
TR6---2SD1405
Ec
TR7---2S8C2603
BCE
eC
ECB
BCe
5
TRO---DTCII4TS 2SC3752 2SA1 283 . 2SATII5 2SB632 2SD01405 OTCII4TS
2803246 2SC 2603 DRUM HEATER
WARNING: A\INDICATES SAFETY CRITICAL COMPONENTS FOR CONTINUED SAFETY,
REPLACE SAFETY CRITICAL COMPONENTS ONLY WITH MANUFACTURER'S
RECOMMENDED
PARTS
TR
PCB
VIO073B505B
AVERTISSEMENT: A\IL INDIQUE LES COMPOSANTS CRITIQUES DE SECURITE.
POUR MAINTENIR LE DEGRE DE SECURITE DE L’APPAREIL,
NE REMPLACER QUE DES PIECES RECOMMANDEES PAR LE FABRICANT
