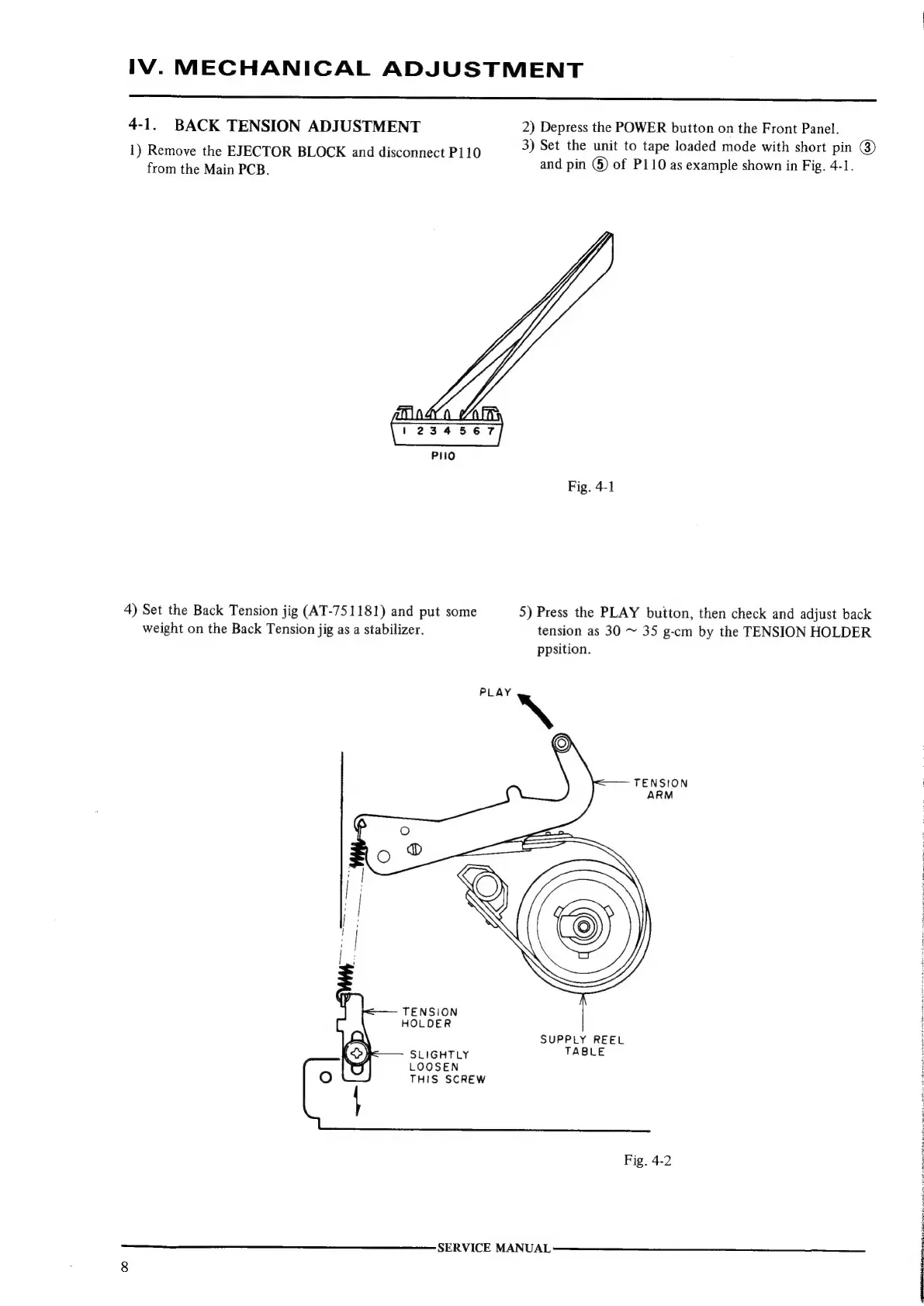

Akai VS-X9EGN

IV.
MECHANICAL
ADJUSTMENT
4-1.
BACK
TENSION
ADJUSTMENT
2)
Depress
the
POWER
button
on
the
Front
Panel.
1)
Remove
the
EJECTOR
BLOCK
and
disconnect
P110
3).
Set
ane
unit
co
apeloaded:
mode
with
shou
pin
@
from
the
Main
PCB.
and
pin
(§)
of
P110
as
example
shown
in
Fig.
4-1.
Fig. 4-1
4)
Set
the
Back
Tension
jig
(AT-751181)
and
put
some
5)
Press
the
PLAY
button,
then
check
and
adjust
back
weight
on
the
Back
Tension
jig
as
a
stabilizer.
tension
as
30
~
35
g-cm
by
the
TENSION
HOLDER
ppsition.
TENSION
ARM
TENSION
HOLDER
SUPPLY REEL
SLIGHTLY TABLE
LOOSEN
THIS SCREW
Fig. 4-2
Tes
F
;
g
