Akai X-165D Service Manual

TRESS

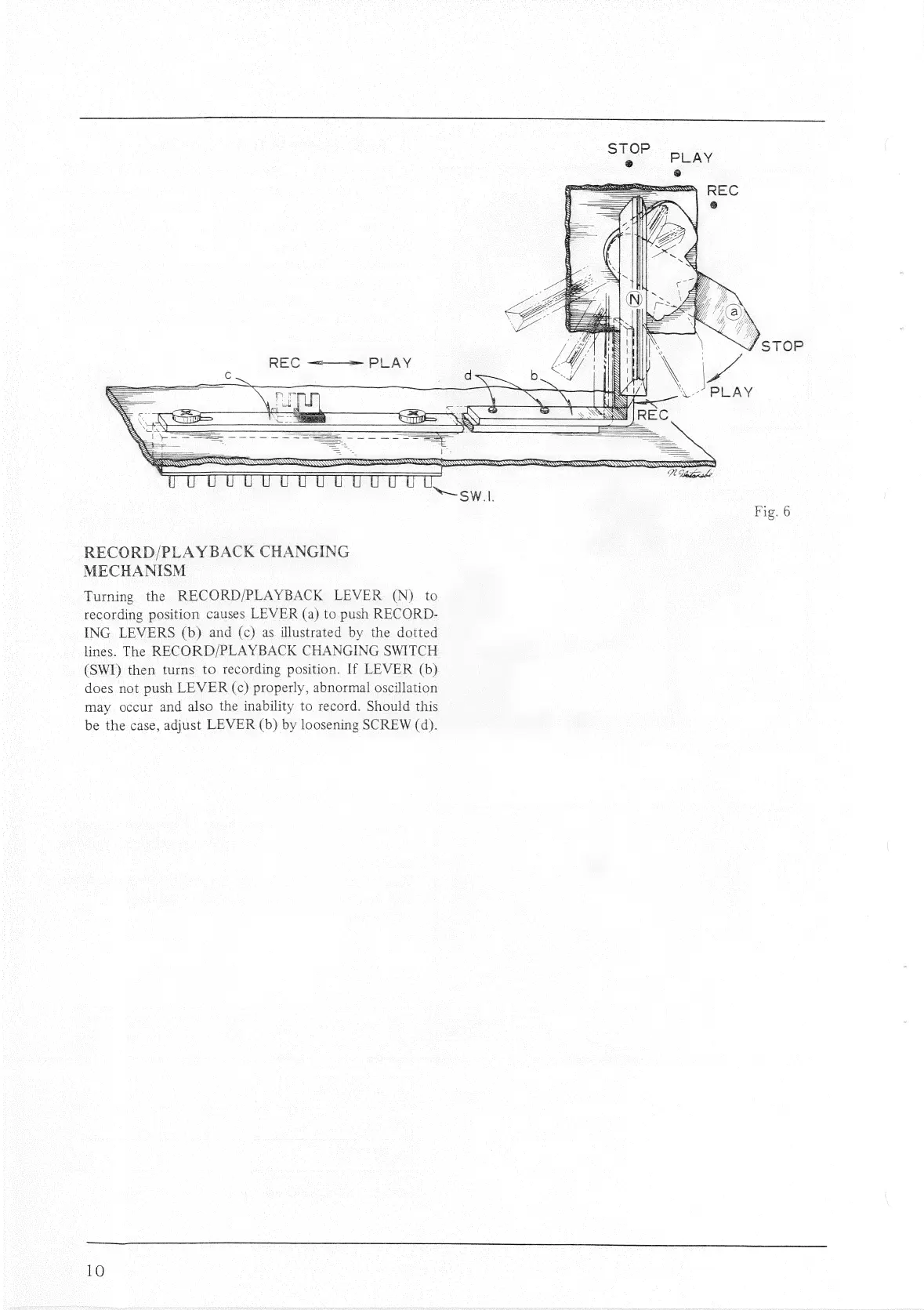

RECORD/PLAY BACK CHANGING
MECHANISM
Turning the RECORD/PLAYBACK LEVER (N) to
recording position causes LEVER (a) to push RECORD-
ING LEVERS (b) and (c) as illustrated by the dotted
lines. The RECORD/PLAYBACK CHANGING SWITCH
(SWI) then turns to recording position. If LEVER (b)
does not push LEVER (c) properly, abnormal oscillation
may occur and also the inability to record. Should this
be the case, adjust LEVER (b) by loosening SCREW (d).
10
SSSA GEIS ENS NOTES
SW...
STOP 51 ay
®
we ON Te we EUR ES a8 SE a ee
PS te Ney SE SSE SASS RAKE
< 2S SENN
ee Pay i
PF,
POD
Fig. 6

Akai X-165D Specifications

General

Brand	Akai
Model	X-165D
Category	Tape Deck
Language	English
