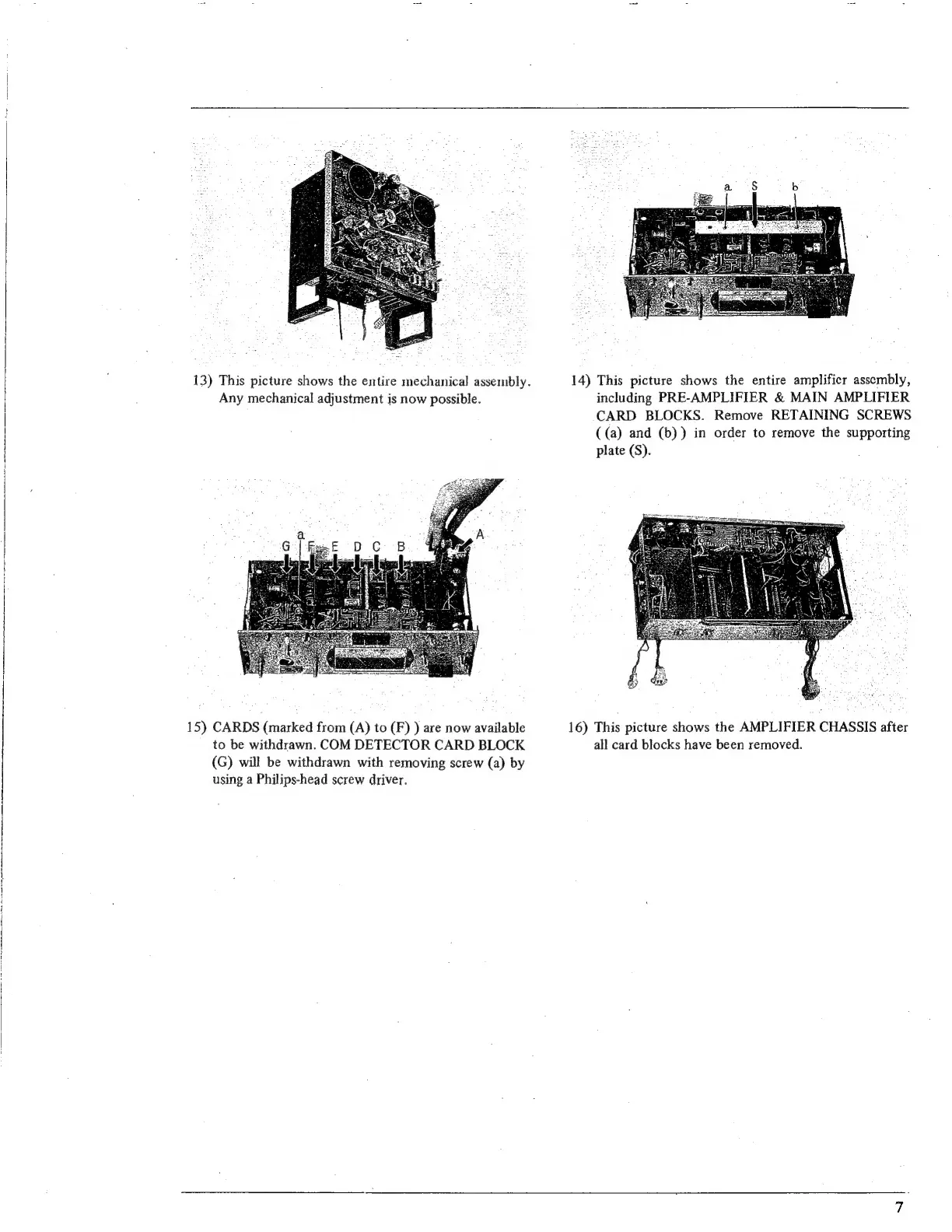

13)
This
shows
the
entire
mechanical
assembly.
14)
This
shows
the
entire
amplificr
assembly,
Any
mechanical
adjustment
is
now
possible.
including
PRE-AMPLIFIER
&
MAIN
AMPLIFIER
CARD
BLOCKS.
Remove
RETAINING
SCREWS
((a)
and
(b))
in
order
to
remove
the
supporting
plate
(S).
15)
CARDS
(marked
from
(A)
to
(F)
)
are
now
available
16)
This
shows
the
AMPLIFIER
CHASSIS
after
to
be
withdrawn.
COM
DETECTOR
CARD
BLOCK
all
card
blocks
have
been
removed.
(G)
will
be
withdrawn
with
removing
screw
(a)
by
using
a
Philips-head
screw
driver.
