• The LCD screen only lights on in the SETUP mode, or when changing menu settings or

viewing existing photos in ON mode.

• Using the operating buttons, menu settings can be changed in the test mode or existing

photos can be played back.

• An Micro SD memory card (not included) must have been inserted into the memory card slot

in order to save photos and videos.

• To download photos and videos, connect the camera to a computer via the mini USB cable.

• There are 3 modes, which could be switched by the mode button.

• 8 x LR6 (AA) batteries( not included) are needed to power the camera.

• An external power supply can be provided via the DC connection (input 6 V, at least 1.5 A.

Mains adaptor is not included.)

1. Open and close the camera

To open the camera, undo the two lateral locking brackets as shown in Fig. 1.

To lock the camera again, engage metal hoops of locking brackets into mount and press down

plastic tab of bracket (Fig. 2).

Steps to use the camera

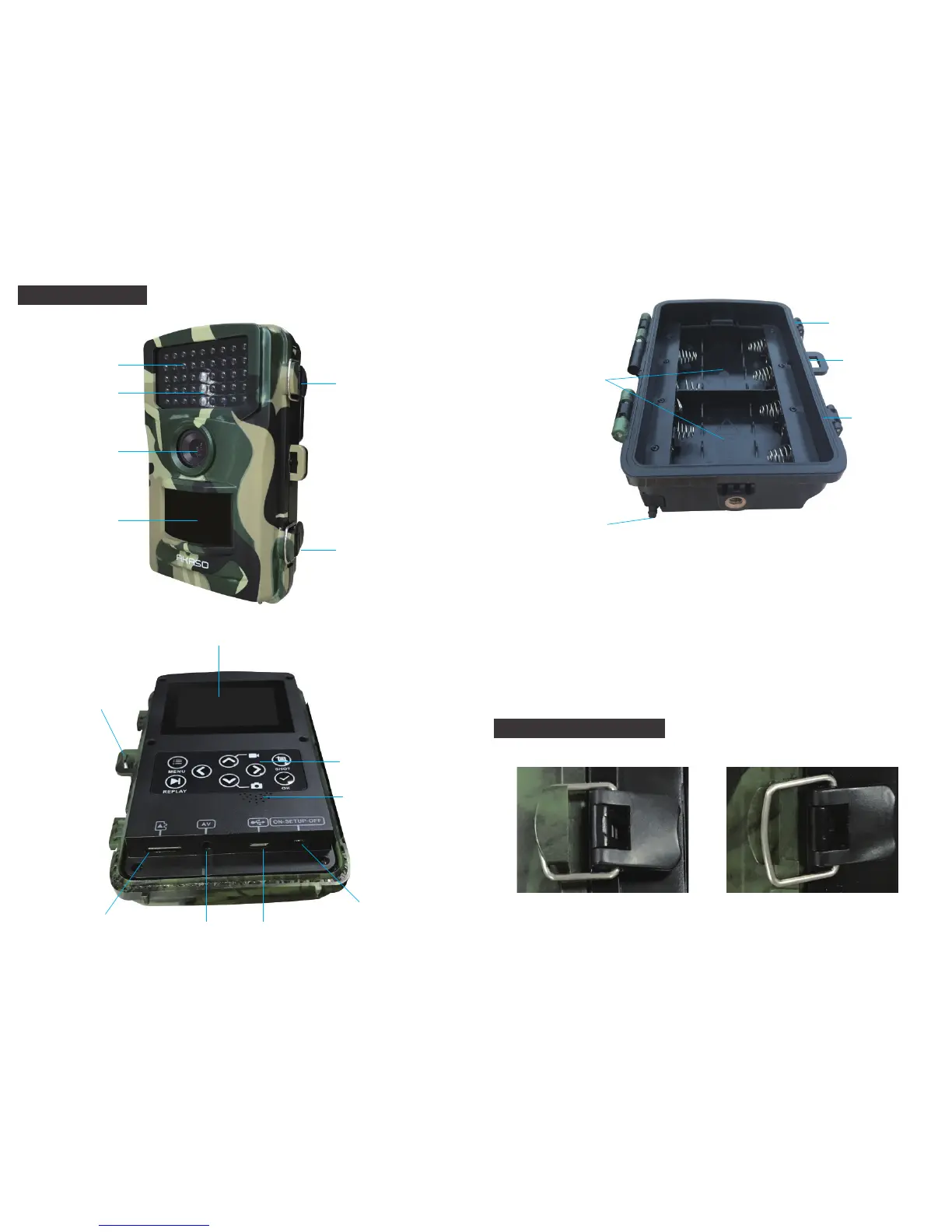

Camera Overview

Battery Compartment

6V DC Connection

Display Screen

Hole for Locking

Micro SD Slot

Micro USB

Mode Switch

(ON/SETUP/OFF)

AV Jack

Speaker

Operating Buttons

Locking Bracket

Locking Hole

for Lock

LED infrared Light

Locking Bracket

Indicator

Lens

PIR Motion Sensor

3 4

Akaso TC04 User Manual
