CR2032 BATTERY REPLACEMENT FOR REMOTE

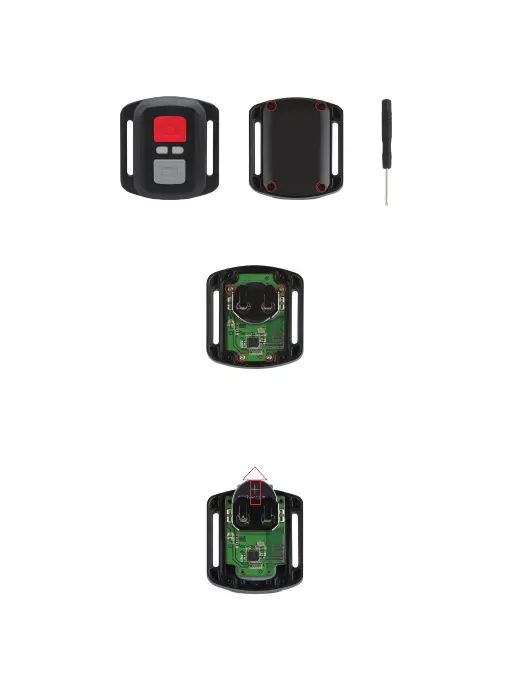

1. Remove the 4 screws on the back cover of the remote with a 1.8mm Phillips tip
screwdriver.
2. Remove another 4 screws on PCB board.
3. Lift the PCB board and slide out the battery, as shown in the picture.
Note: Do NOT rotate the PCB board to avoid reversing the camera and video
button functions.
24
