Door Control Unit User Manual
Updated until firmware 404p - 14 -
J5 (3-4) = no EXT2
J5 (1-3) = no EXT1 and no EXT2

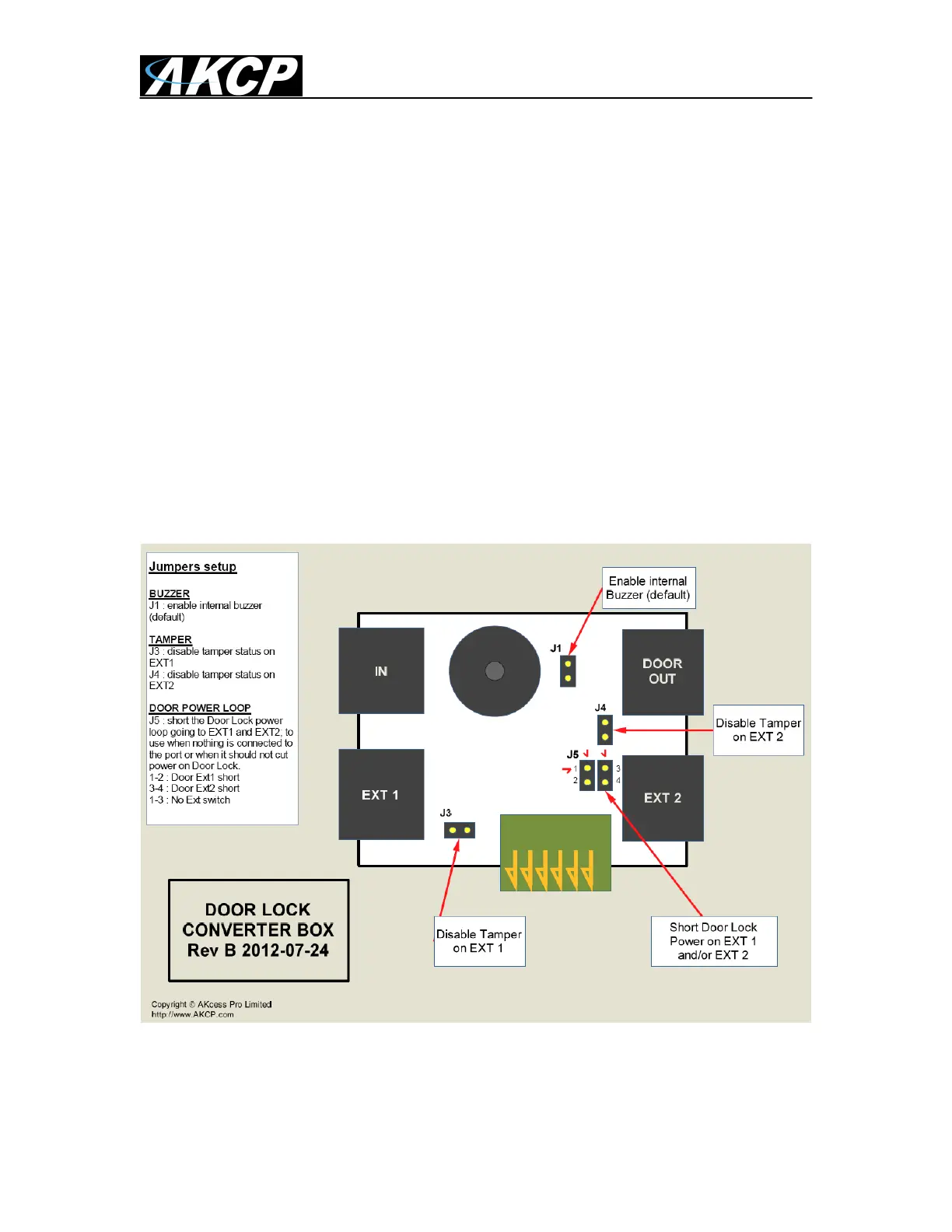

Tamper jumpers
J3 = no tamper detection on EXT1
J4 = no tamper detection on EXT2
Buzzer jumper
J1 = enable internal buzzer, remove for disabling internal buzzer
Configurations
When EXT1 is not used:
Connect J3 and J5 (1-2)
When EXT2 is not used:
Connect J4 and J5 (3-4)
When EXT1 and EXT2 are not used:
Connect J3 and J4 and J5 (1-3)
Compatibility
The Lock Box can be used with CCU
