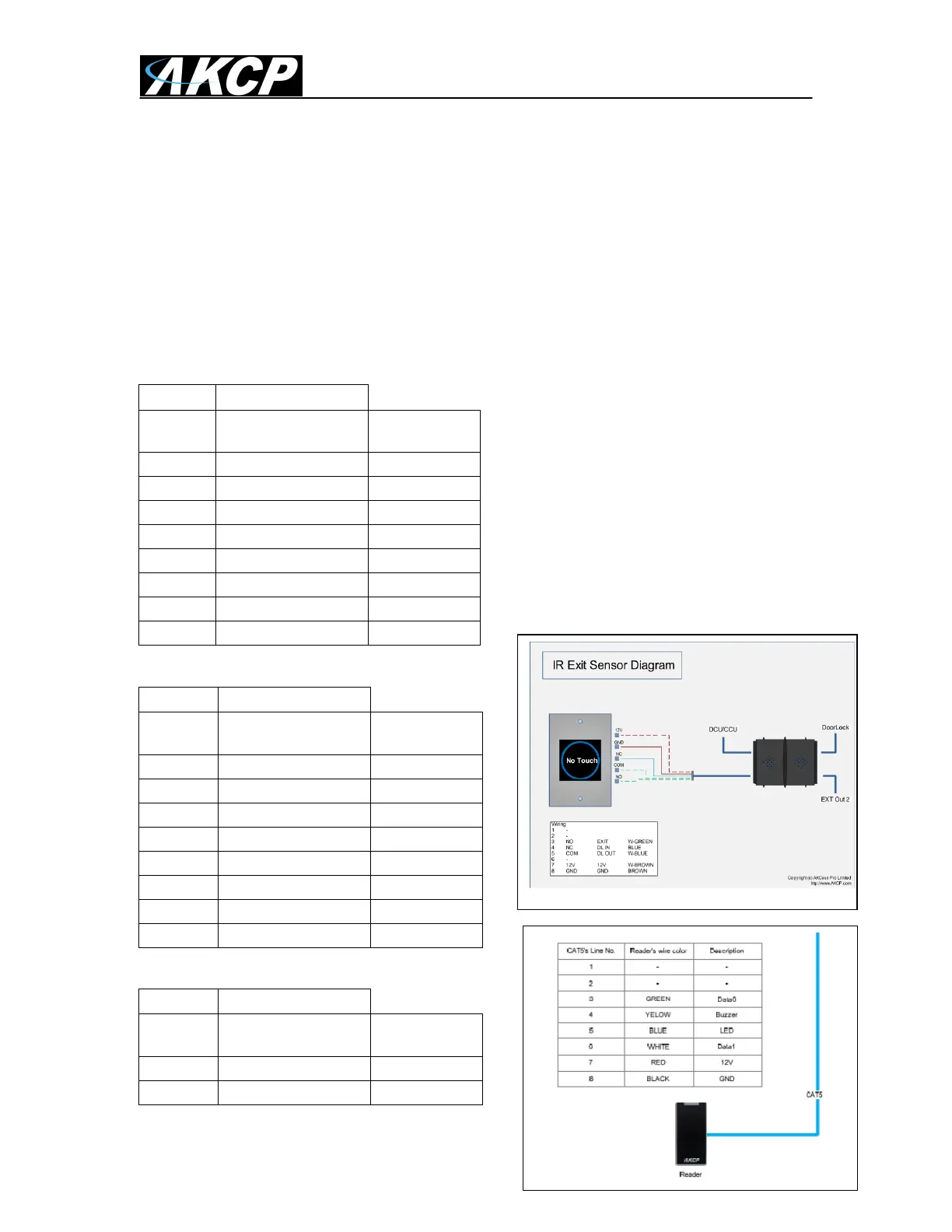

Door Control Unit User Manual
Updated until firmware 404p - 15 -
Connect ACDL02 on Door Out only
Buzzer is not supported by CCU, remove J1 for more safety,
Tamper is not supported by CCU
Dry Contact is not supported by CCU
Add jumpers according to configuration
Door Out supports both ACDL01 and ACDL02 with default pre-wiring.
EXT1 and EXT2 can support ACDL01 with default pre-wiring.
External self-driven buzzer can be used (Signal, 12V)
External Exit button can be used (signal, GND)
External Dry Contact can be used (signal, GND) Note: After 404p FWare
C) Pre-wired Accessories
(Kill Switch is Also Added)
