F) SNMP OID’s for the DCU
sensorDoorIndex
.1.3.6.1.4.1.3854.2.3.27.1.1
sensorDoorDescription
.1.3.6.1.4.1.3854.2.3.27.1.2
sensorDoorValue
.1.3.6.1.4.1.3854.2.3.27.1.4
sensorDoorStatus
.1.3.6.1.4.1.3854.2.3.27.1.6
sensorDoorUnlockPeriod
.1.3.6.1.4.1.3854.2.3.27.1.62
sensorDoorOpenPeriod
.1.3.6.1.4.1.3854.2.3.27.1.63
sensorDoorCmd
.1.3.6.1.4.1.3854.2.3.27.1.64
G) Wiegand HID Card Reader Integration

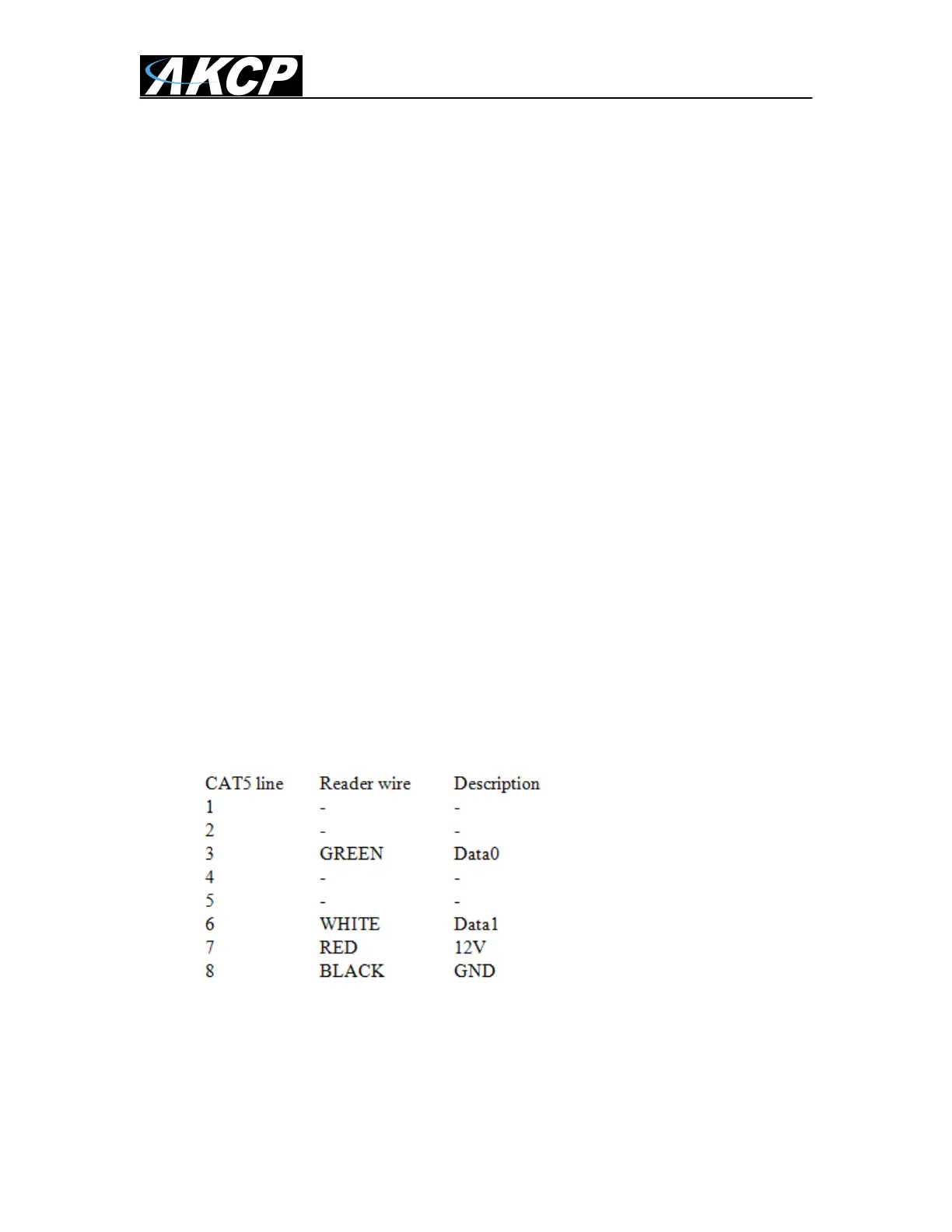

The following is the wiring diagram for connecting a third party (non AKCP) HID card
reader to the DCU’s reader port. The HID readers cards ID format must be wiegand
26bits or 34bits.
