8.- Connectivity
The unit has a port for RS485 date connection (MODBUS), which can be managed using a PC.
Up to 127 units can be connected to a PC with AKONet (AKO-5010), or to the AKO-5011 web server. Each of these
units should have a different MODBUS address, that is defined using the P5.
Using the AKONet software it is possible to display and capture the data of any connected unit, and configure its
parameters.
AKONet: Management software for AKO units with RS485 (MODBUS) communication. If it is installed in a server the
software can be accessed from any PC in the network or even from Internet (it requires the server having connection to
Internet and fixed IP).
AKO-5011: Web server that includes the AKONet software. It can carry out the same functions as the PC, with the
advantage of having a server dedicated to communication with the units.

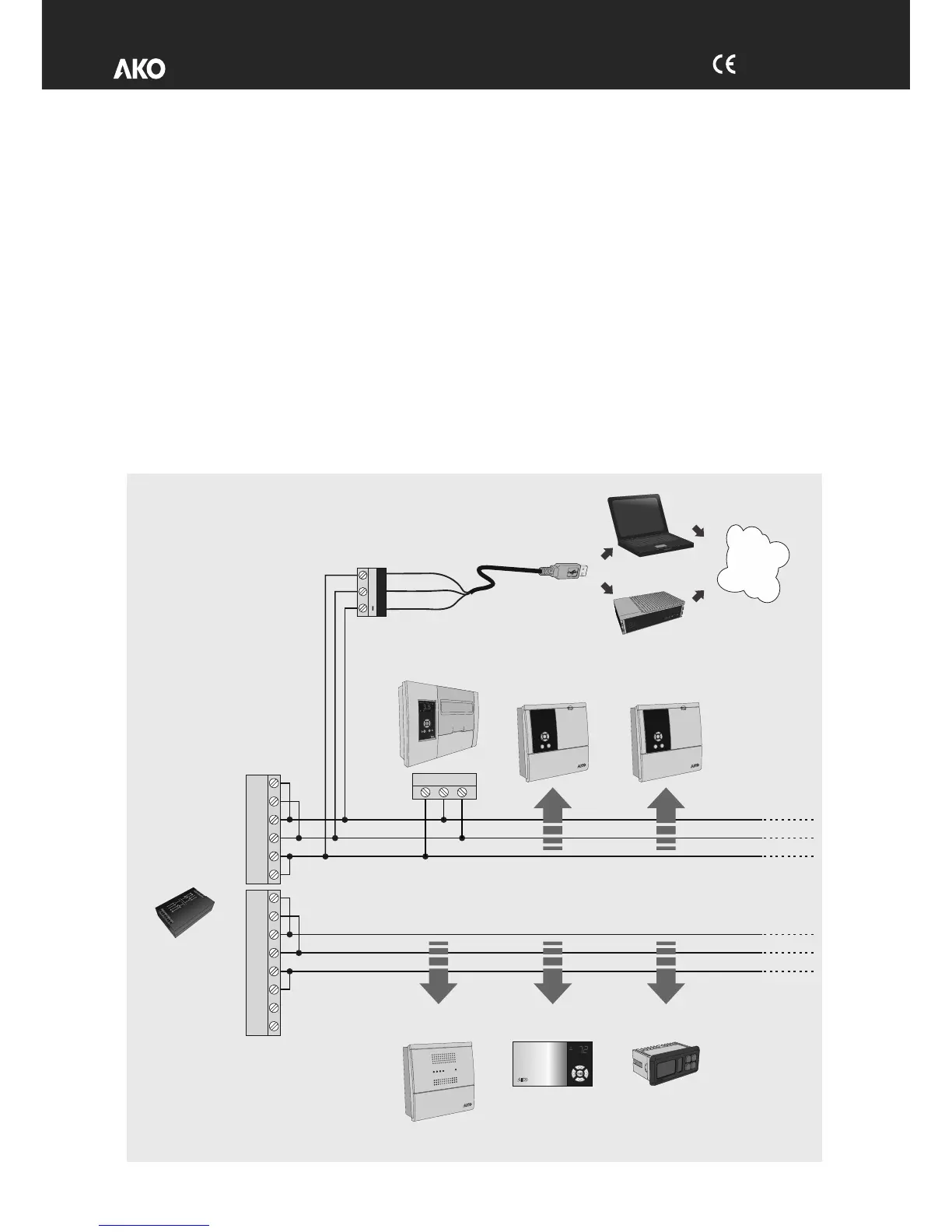

*If over 31 units are connected, use an AKO-80024 connector.
AKO-80024*
repeater
AKO-80039
converter
PC with
AKONet
(AKO-5010)
AKO-5011
web server
or
AKO-DARWIN
controller with
built-in
communication
22
ESC
?
SET
ESC
?
SET
A-
A-
B+
B+
A-
A-
B+
B+
GND
GND
GND
GND
GND
+12V
CAMRegis
PROPlus 3PH
AKO-156xx
PROPlus/
PROPlus BASIC
Yellow
Red
Black
GND
Tr-
Tr-Tr-
B
Tr+
Tr+Tr+
LAN
A
Gnd
Gnd
+
R
S-485
GND
CAMAlarm/
COMBIAlarm
AKO-D146xx-C
ºC
ºF
