AL-KO HW 3000 Instructions For Use

en
Original instructions for use
12 HWA 3000_3500 Classic

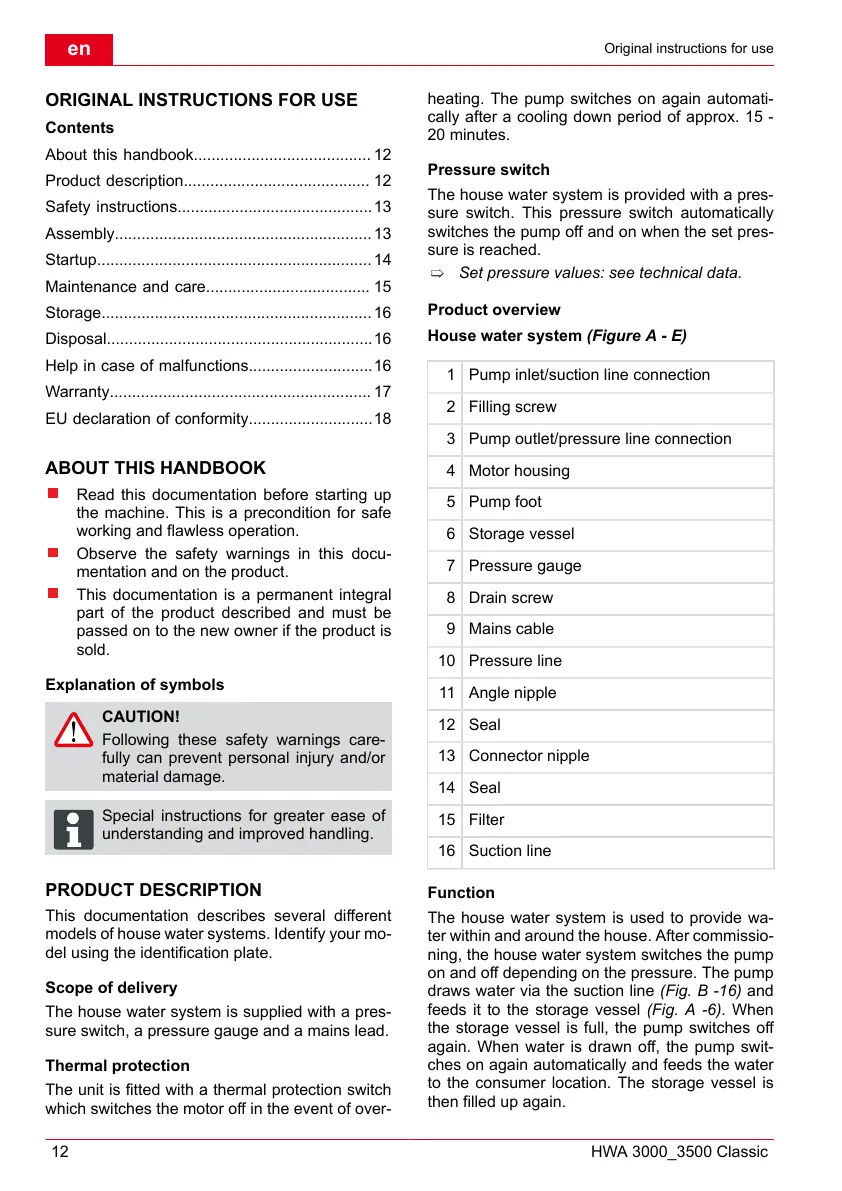

ORIGINAL INSTRUCTIONS FOR USE
Contents
About this handbook........................................ 12
Product description.......................................... 12
Safety instructions............................................13
Assembly..........................................................13
Startup..............................................................14
Maintenance and care..................................... 15
Storage.............................................................16
Disposal............................................................16
Help in case of malfunctions............................16
Warranty........................................................... 17
EU declaration of conformity............................18
ABOUT THIS HANDBOOK
Read this documentation before starting up
the machine. This is a precondition for safe
working and flawless operation.
Observe the safety warnings in this docu-
mentation and on the product.
This documentation is a permanent integral
part of the product described and must be
passed on to the new owner if the product is
sold.
Explanation of symbols
CAUTION!
Following these safety warnings care-
fully can prevent personal injury and/or
material damage.
ADVICE
Special instructions for greater ease of
understanding and improved handling.
PRODUCT DESCRIPTION
This documentation describes several different
models of house water systems. Identify your mo-
del using the identification plate.
Scope of delivery
The house water system is supplied with a pres-
sure switch, a pressure gauge and a mains lead.
Thermal protection
The unit is fitted with a thermal protection switch
which switches the motor off in the event of over-
heating. The pump switches on again automati-
cally after a cooling down period of approx. 15 -
20 minutes.
Pressure switch
The house water system is provided with a pres-
sure switch. This pressure switch automatically
switches the pump off and on when the set pres-
sure is reached.
➯
Set pressure values: see technical data.
Product overview
House water system (Figure A - E)
1 Pump inlet/suction line connection
2 Filling screw
3 Pump outlet/pressure line connection
4 Motor housing
5 Pump foot
6 Storage vessel
7 Pressure gauge
8 Drain screw
9 Mains cable
10 Pressure line
11 Angle nipple
12 Seal
13 Connector nipple
14 Seal
15 Filter
16 Suction line
Function
The house water system is used to provide wa-
ter within and around the house. After commissio-
ning, the house water system switches the pump
on and off depending on the pressure. The pump
draws water via the suction line (Fig. B -16) and
feeds it to the storage vessel (Fig. A -6). When
the storage vessel is full, the pump switches off
again. When water is drawn off, the pump swit-
ches on again automatically and feeds the water
to the consumer location. The storage vessel is
then filled up again.
